Edelbrock Power Package Top End Package

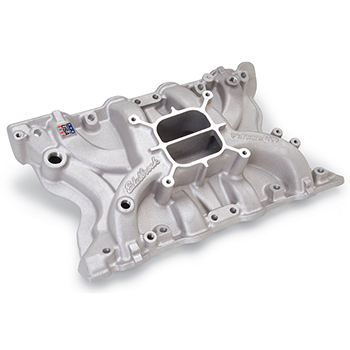

These kits include almost everything you need to build a performance proven combination. The Power Packages include a set of fully assembled Performer RPM cylinder heads, Performer RPM Air Gap Intake, Performer RPM camshaft, head and intake bolts and top end gasket set.
Oversize shipping charges apply.
Part Type: Top End Kits
Cylinder Heads Included: Yes
Camshaft Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Advertised Duration: 296 int./300 exh.
Duration at 050" Lift: 234 int./238 exh.
Valve Lift with Factory Rocker Arm Ratio: 0.539 int./0.548 exh.
Fuel Delivery Style: Carbureted
Intake Manifold Included: Yes
Carburetor Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Fuel Rails Included: No
Intake Material: Aluminum
Intake Color: Natural
Intake Style: Dual Plane
Carburetor Flange: Square Bone
Lifters Included: Yes
Timing Chain and Gears Included: Yes
Gaskets Included: Yes
Cylinder Head Style: Assembled
Cylinder Head Color: Natural
Cylinder Head Material: Cast Aluminum
Combustion Chamber Volume (cc): 64
CNC-Machined Combustion Chamber: No
Combustion Chamber Style: Heart
CNC- Machined Intake Runner: No
Intake Runner Volume (cc): 170
Exhaust Runner Volume (cc): 70
CNC-Machined Exhaust Runner: No
Intake Portion Location: Standard
Intake Port Shape: Rectangular
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Intake Valve Diameter (in): 1.940"
Exhaust Valve Diameter (in): 1.550"
Exhaust Valves Included: Yes
Intake Valve Angle: 23
Valve Springs Included: Yes
Damper Spring Included: Yes
Outside Diameter of Outer Spring (in): 1.460"
Number of Springs per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive Stop
Valve Stem Seal Material: Vitom
Locks Included: Yes
Lock Style: 7 Degree
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 3/8" -24
Pushrods Included: Yes
Valve Covers Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16"
Valve Cover Mounting Style: Center and Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Valve Seat Material: Ductile Iron
Valve Seat Machine Style: 3-Angle
Steam Holes Drilled: No
Machined for O-Ring: No
Oiling Style: Through Pushrod
Heat Crossover: No
Quantity Sold as: A Kit
|
