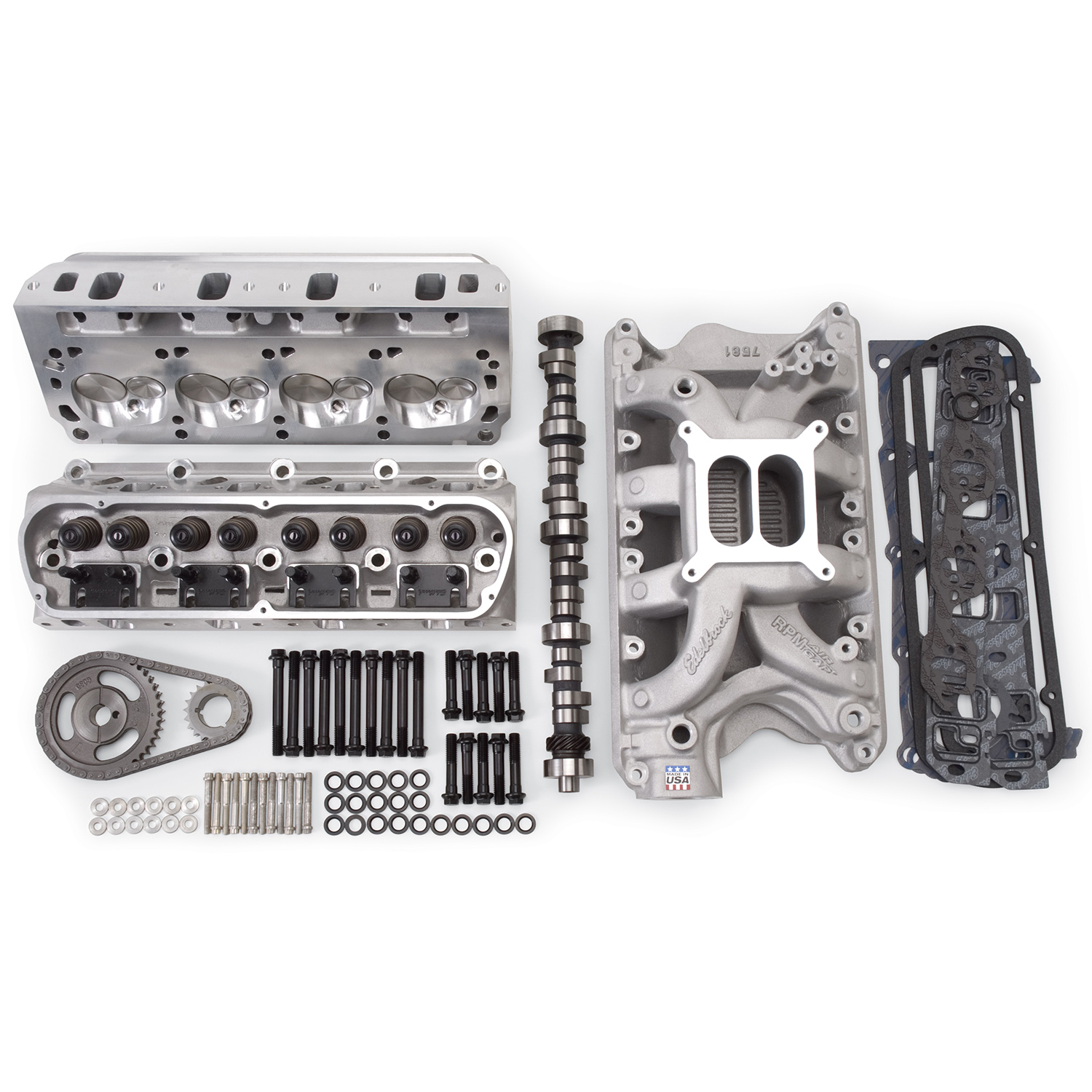

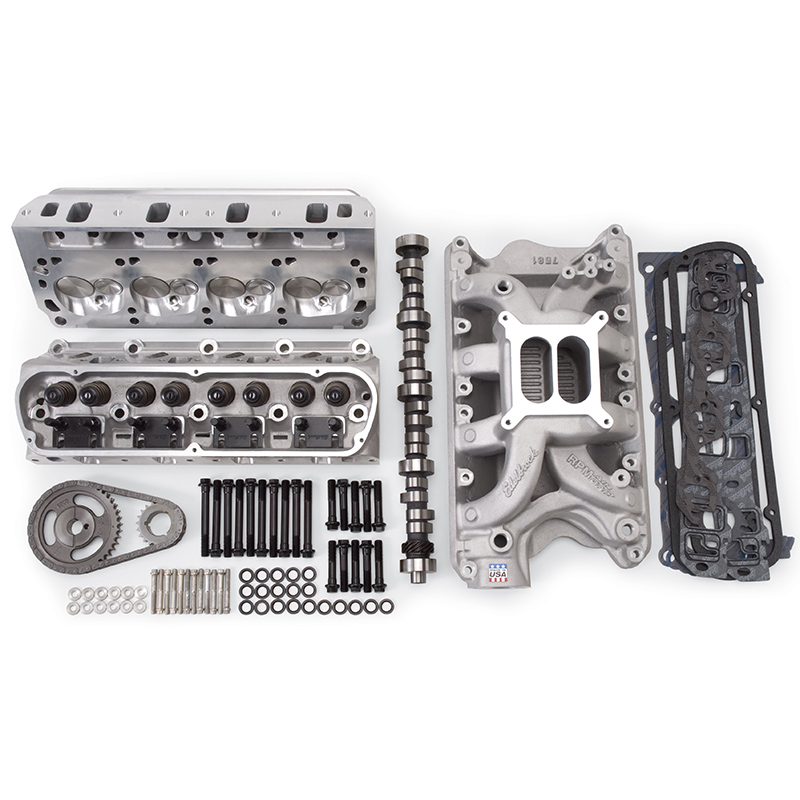

Edelbrock Power Package Top End Package
These kits include almost everything you need to build a performance proven combination. The Power Packages include a set of fully assembled Performer RPM cylinder heads, Performer RPM Air Gap Intake, Performer RPM camshaft, head and intake bolts and top end gasket set.
Oversize shipping charges apply.
Part Type: Top End Kits
Cylinder Heads Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Camshaft Included: Yes
Duration at 050" Lift: 235 int./238 exh
Valve Lift with Factory Rocker Arm Ratio: 0.573 int./0.582 exh
Advertised Duration: 299 int./302 exh
Intake Manifold Included: Yes
Carburetor Included: No
Fuel Delivery Style: Carbureted
Throttle Body Included: No
Fuel Rails Included: No
Intake Material: Aluminum
Fuel Injectors Included: No
Intake Color: Natural
Intake Style: Dual Plane
Cylinder Head Style: Assembled
Cylinder Head Color: Natural
Cylinder Head Material: Cast Aluminum
Carburetor Flange: Square Bore
Timing Chain and Gears Included: Yes
Gaskets Included: Yes
Lifters Included: No
Combustion Chamber Volume (cc): 59
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Maachined Exhaust Runner: Yes
Intake Runner Volume (cc): 185
Exhaust Runner Volume (cc): 75
Intake Port Location: Standard
Intake Port Shape: Rectangular
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.020"
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.570"
Spark Plug Style: Angle
Intake Valve Angle: 20
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in): 1.300"
Heat Crossover: No
Machined for O-Ring: No
Oiling Style: Through Pushrod
Valve Seat Material: Ductile Iron
Steam Holes Drilled: No
Valve Seat Machine Angle: 3-Angle
Valve Seats Machined: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese Steel
Accessory Bolt Holes Drilled: Yes
Valve Cover Mounting Style: Perimeter Bolt
Pushrods Included: Yes
Valve Covers Included: No
Guideplates Included: Yes
Guideplates Pushrod Size: 5/16"
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive Stop
Valve Stem Seal Material: Viton
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 7/16" -20
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Locks Included: Yes
Lock Style: 7 Degree
Damper Springs Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Quantity Sold as: A Kit
|
