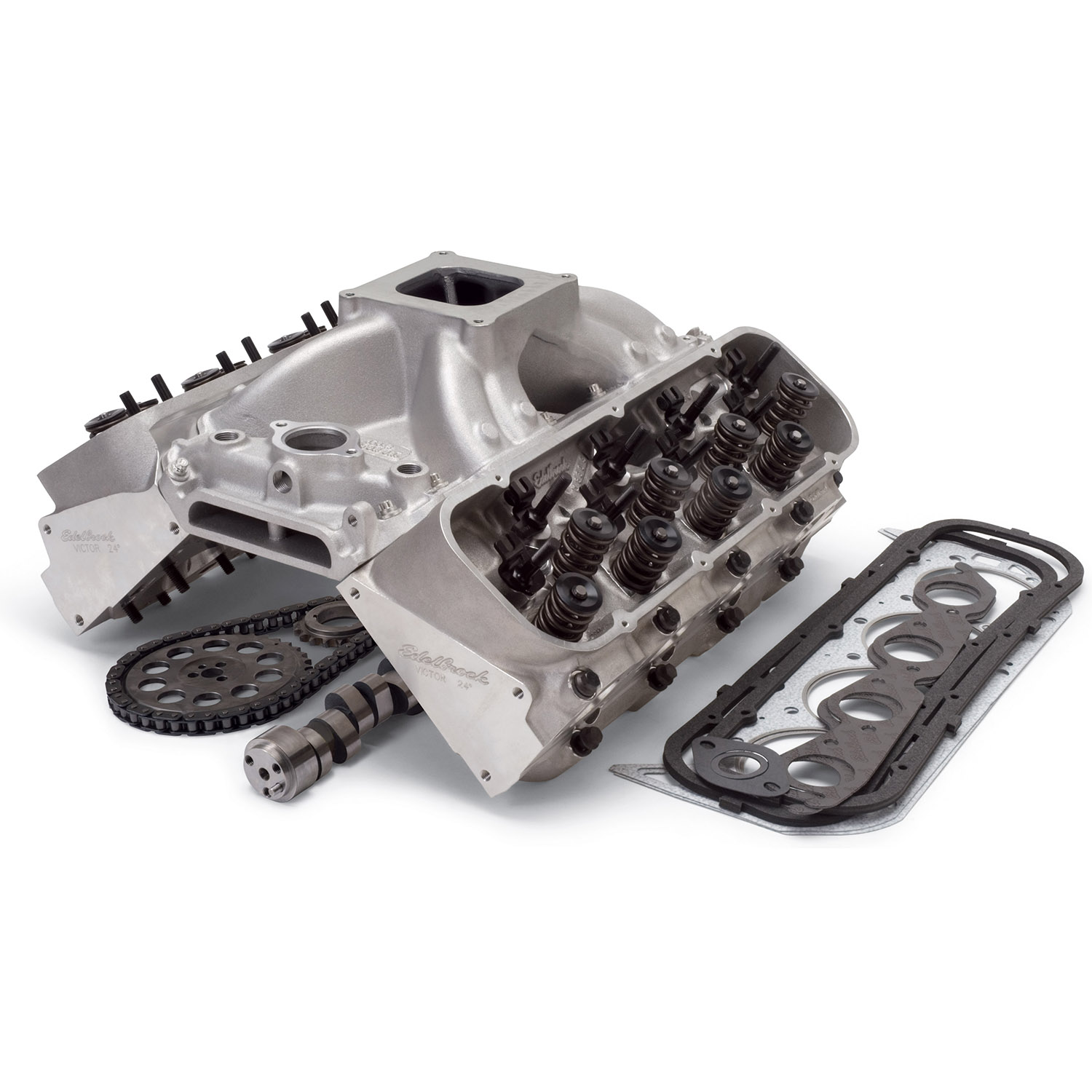

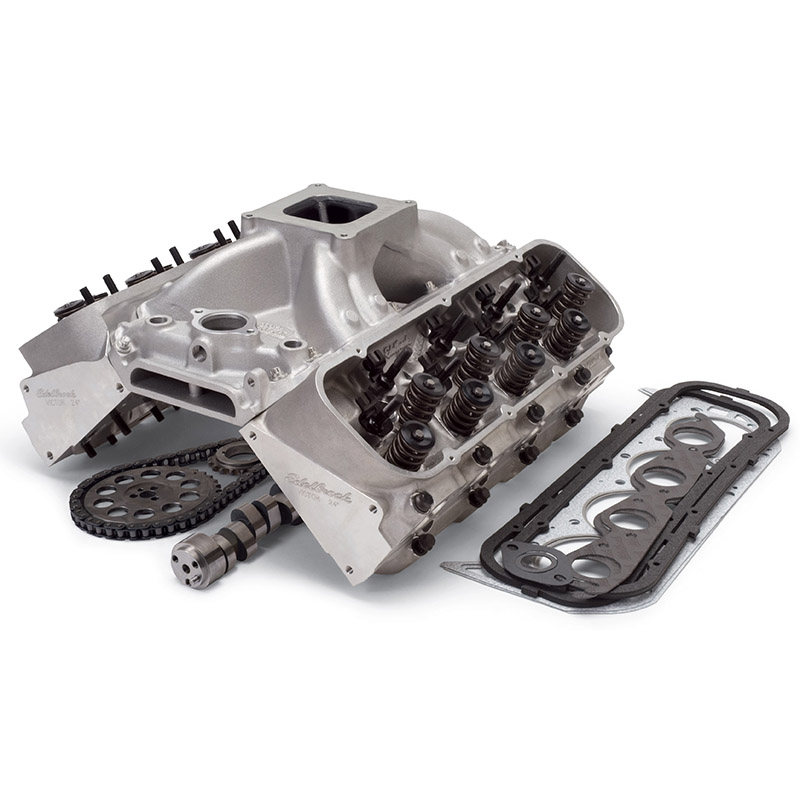

Edelbrock Power Package Top End Package
These kits include almost everything you need to build a performance proven combination. The Power Packages include a set of fully assembled Performer RPM cylinder heads, Performer RPM Air Gap Intake, Performer RPM camshaft, head and intake bolts and top end gasket set.
Oversize shipping charges apply.
Part Type: Top End Kits
Cylinder Heads Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Camshaft Included: Yes
Duration at 050" Lift: 236 int./245 exh
Valve Lift with Factory Rocker Arm Ratio: 0.625 int./0.639 exh
Advertised Duration: 335 int./329 exh
Intake Manifold Included: Yes
Carburetor Included: No
Fuel Delivery Style: Carbureted
Throttle Body Included: No
Fuel Rails Included: No
Intake Material: Aluminum
Fuel Injectors Included: No
Intake Color: Natural
Intake Style: Single Plane
Cylinder Head Style: Assembled
Cylinder Head Color: Natural
Cylinder Head Material: Cast Aluminum
Carburetor Flange: Square Bore
Timing Chain and Gears Included: Yes
Gaskets Included: Yes
Lifters Included: No
Combustion Chamber Volume (cc): 106
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Maachined Exhaust Runner: No
Intake Runner Volume (cc): 300
Exhaust Runner Volume (cc): 128
Intake Port Location: Standard
Intake Port Shape: Round
Exhaust Port Location: Raised
Exhaust Port Shape: Round
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.250"
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.900"
Spark Plug Style: Angle
Intake Valve Angle: 24
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in): 1.635"
Heat Crossover: No
Machined for O-Ring: No
Oiling Style: Through Pushrod
Valve Seat Material: Ductile Iron
Steam Holes Drilled: No
Valve Seat Machine Angle: 3-Angle
Valve Seats Machined: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese Bronze
Accessory Bolt Holes Drilled: Yes
Valve Cover Mounting Style: Perimeter Bolt
Pushrods Included: No
Valve Covers Included: No
Guideplates Included: Yes
Guideplates Pushrod Size: 3/8"
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive Stop
Valve Stem Seal Material: Viton
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 7/16" -20
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Locks Included: Yes
Lock Style: 7 Degree
Damper Springs Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Quantity Sold as: A Kit
|
