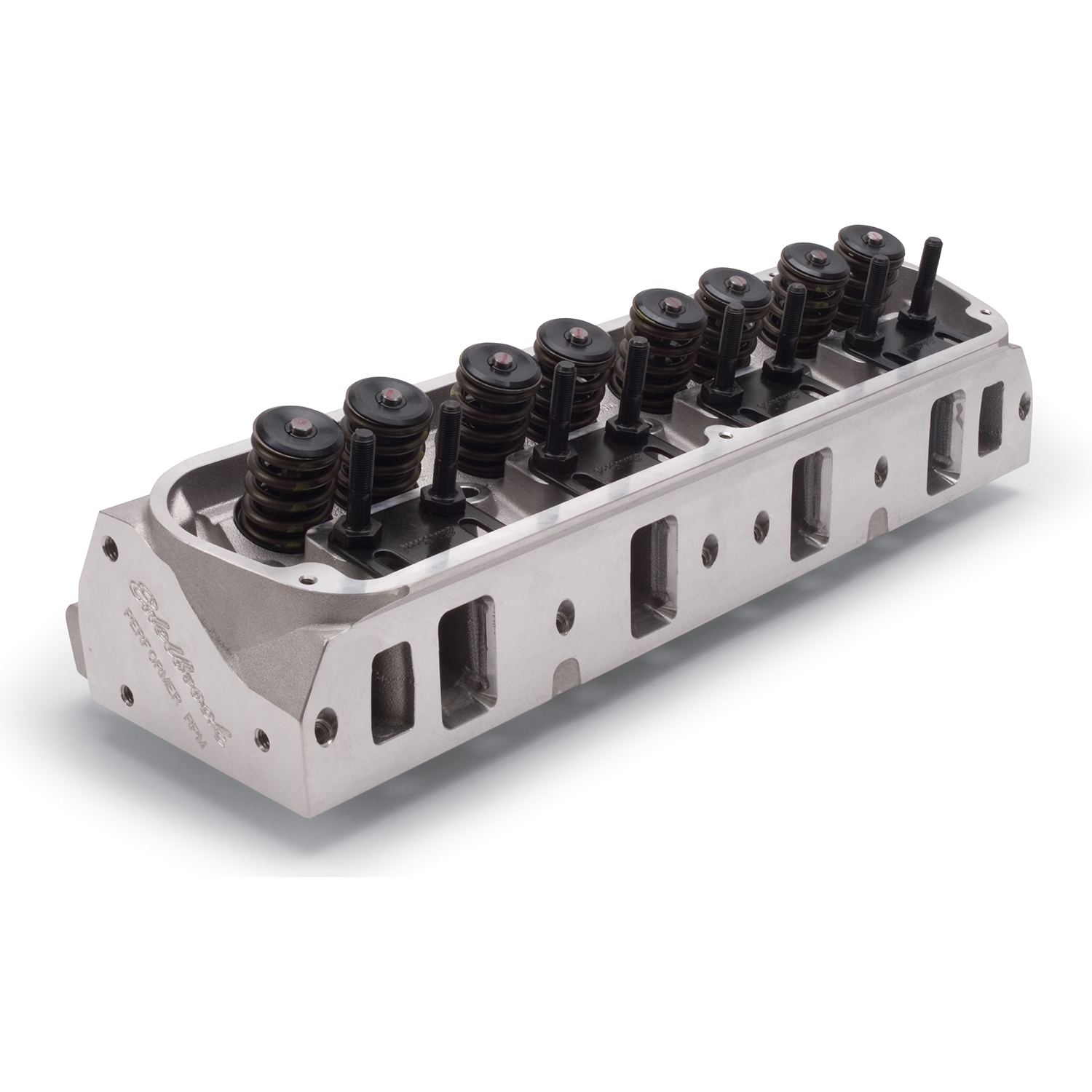

Edelbrock Performer RPM Ford SB (289-351W) Aluminum Head
These heads provide outstanding bolt-on performance. Made from A356 aluminum and feature CNC profiled intake and exhuast runner openings with hand blended bowls.
Fully assembled with stainless steel valves, HP springs, steel retainers, guide plates and rocker studs where applicable.
Note: 289-302 with 7/16" bolts require bolt bushings #9680.
Part Type: Cylinder Head
Application: Ford Small Block (289-351W) Stud Mount
Cylinder Head Material: Aluminum
Bare or Assembled: Assembled

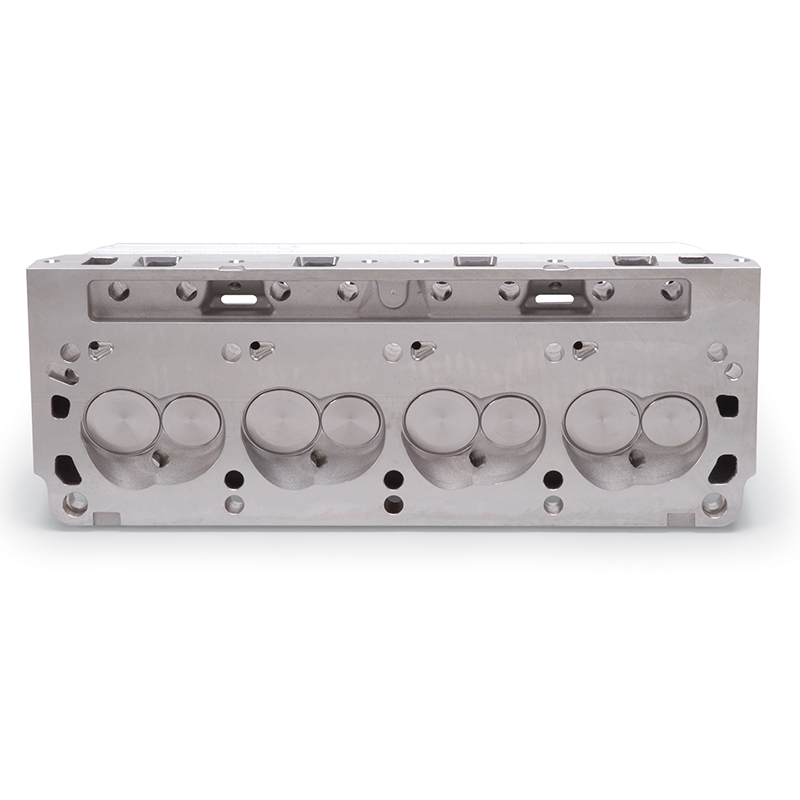

Combustion Chamber Size: 60cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Intake Port Volume: 170cc
CNC Machined Intake Port: No
Intake Port Flow: 244 cfm @ .700" lift/ 28"
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets: Fel-Pro 1250 or Equivalent

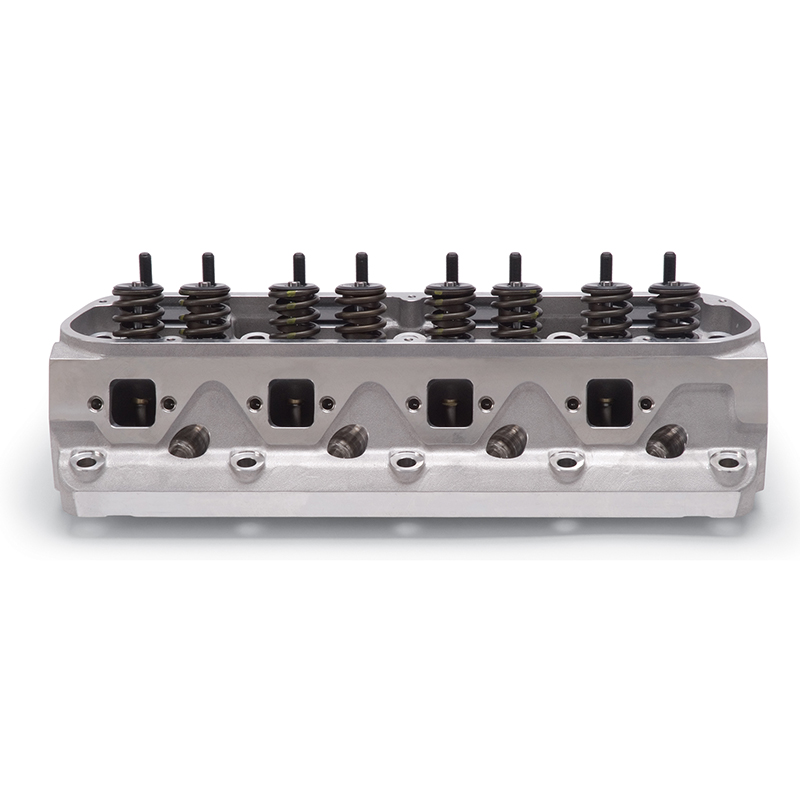

Exhaust Port Volume: 60cc
CNC Machined Exhaust Port: No
Exhaust Port Flow: 175 cfm @ .700" lift/ 28"
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets: Fel-Pro 1415 or Equivalent
Suggested Spark Plug: 14mm x 3/4" reach
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32"
Valve Seats:
Valve Job:
Intake Valve Diameter: 2.020"
Intake Valve Included: Yes
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: Yes
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: Yes
Valve Spring Application: Hydraulic Flat Tappet .575" max lift
Valve Springs Retainers Included: Yes
Valve Locks Included: Yes (7 degree)
Valve Seals Included: Yes
Rocker Studs Included: Yes (3/8")
Guide Plates Included: Yes
Valve Cover Mounting Style: Perimeter bolt
Steam Holes Drilled: No
Heat Crossover: Yes
Suggested Head Bolts:
Suggested Head Studs:
Suggested Stud Girdle: Jomar 1123, Howards Cams™ 90200
Head Bolt Torque with Oil: 7/16" bolts, Short: 70 ft./lbs., Long: 80 ft./lbs., 1/2" bolts, Short 100 ft/lbs., Long: 110 ft/lbs.
Rocker Stud Torque with Oil: 45 ft./lbs.
Intake Bolt Torque with Oil: 16-18 ft./lbs.
Manufacturer: Edelbrock
Manufacturer's Part Number: 60259
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
|
