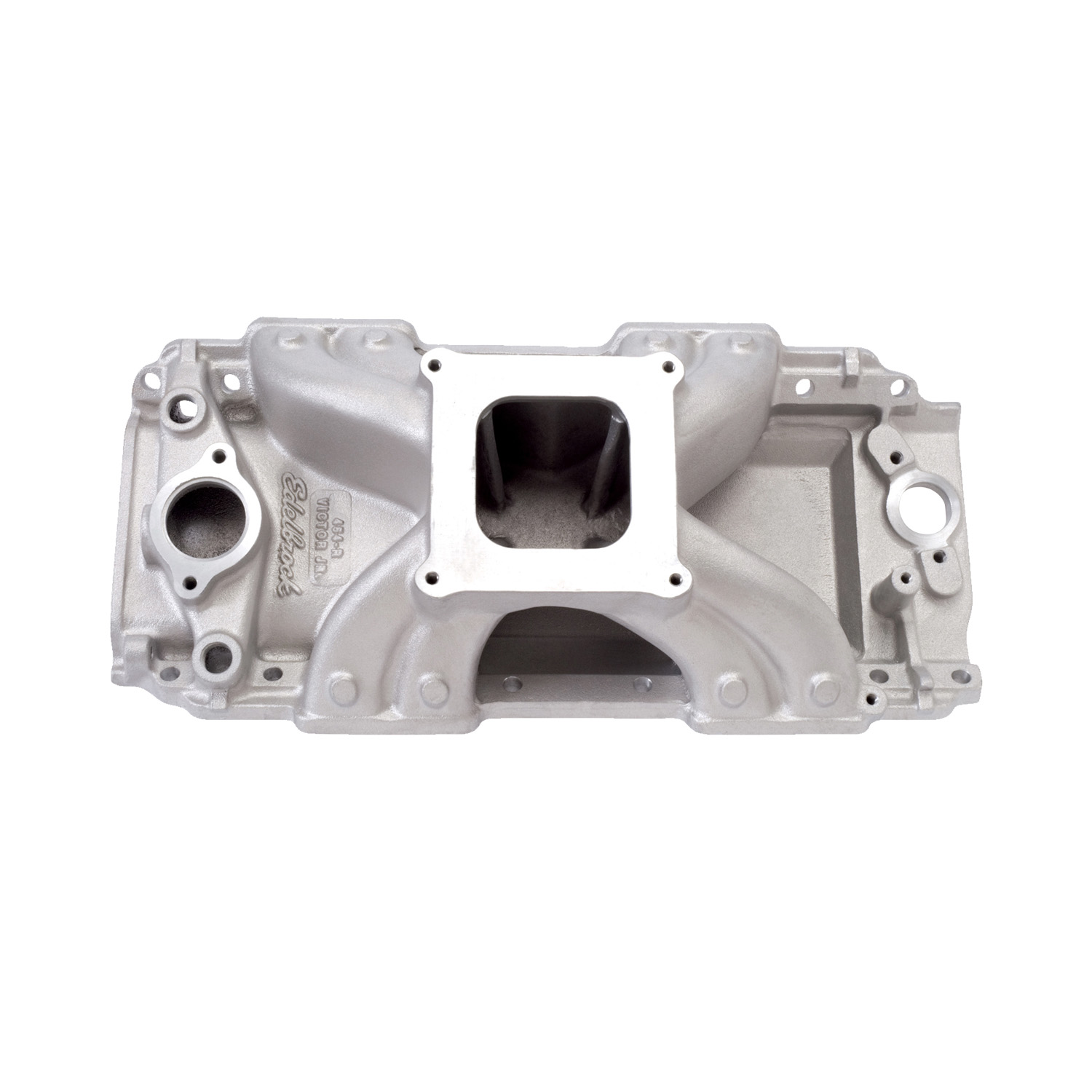

Edelbrock Victor Jr. 454-R Intake Manifold
Edelbrock part #2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485.
Part Type: Intake Manifolds, Carbureted
UPC: 085347029020
EGR: No
Intake Material: Aluminum
Intake Section Included: Complete
Intake Color: Natural
Intake Manifold Height: 5.960"
Carburetor Quantity: One
Engine Block Deck Height: Standard Deck
Basic Operating RPM Range: 3500-7500
Intake Style: Dual Plane
Quantity Sold as: Individually
|
