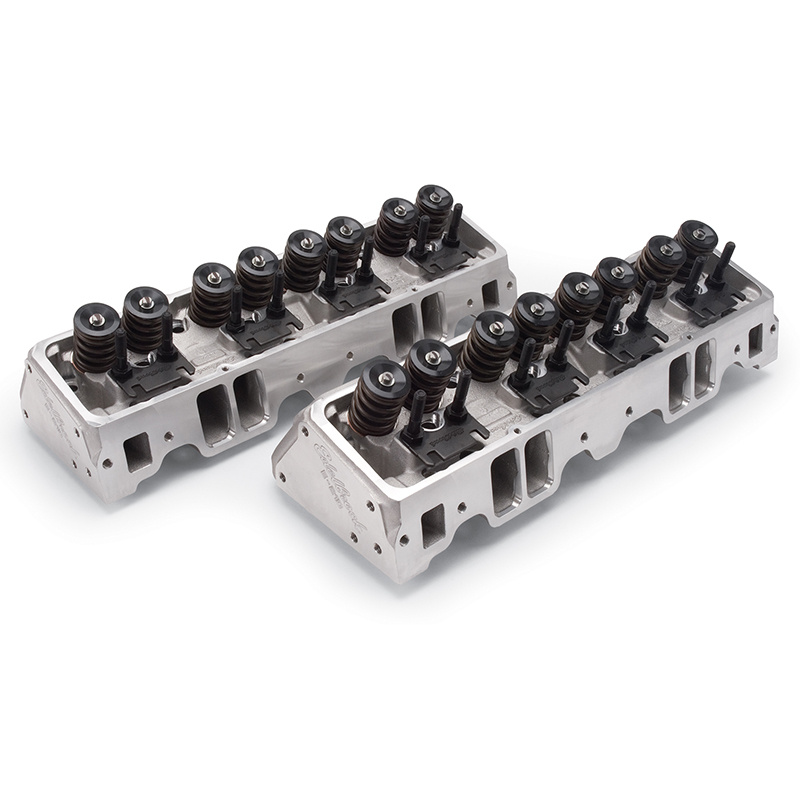

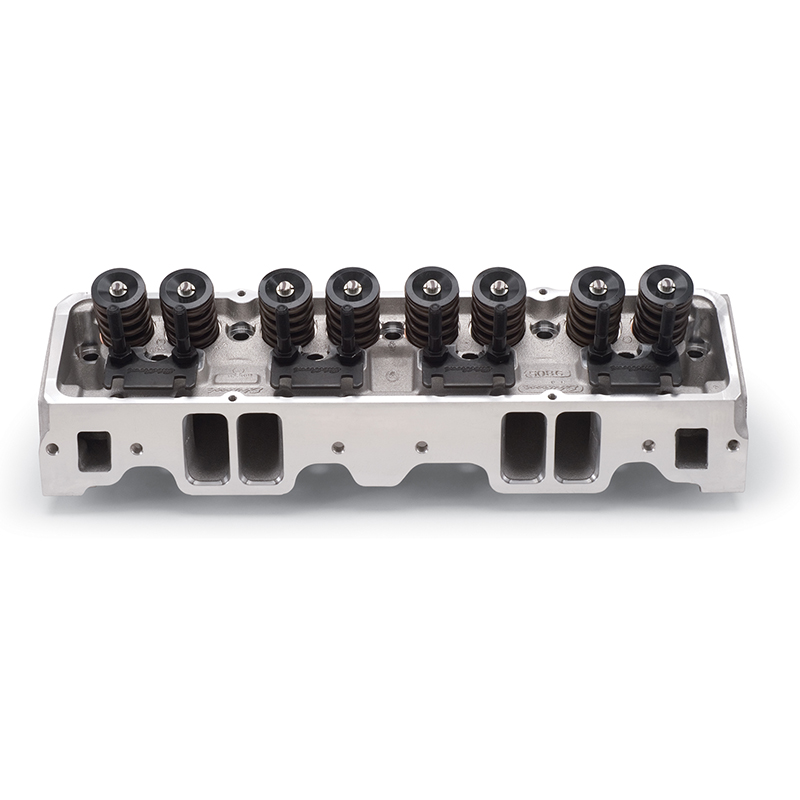

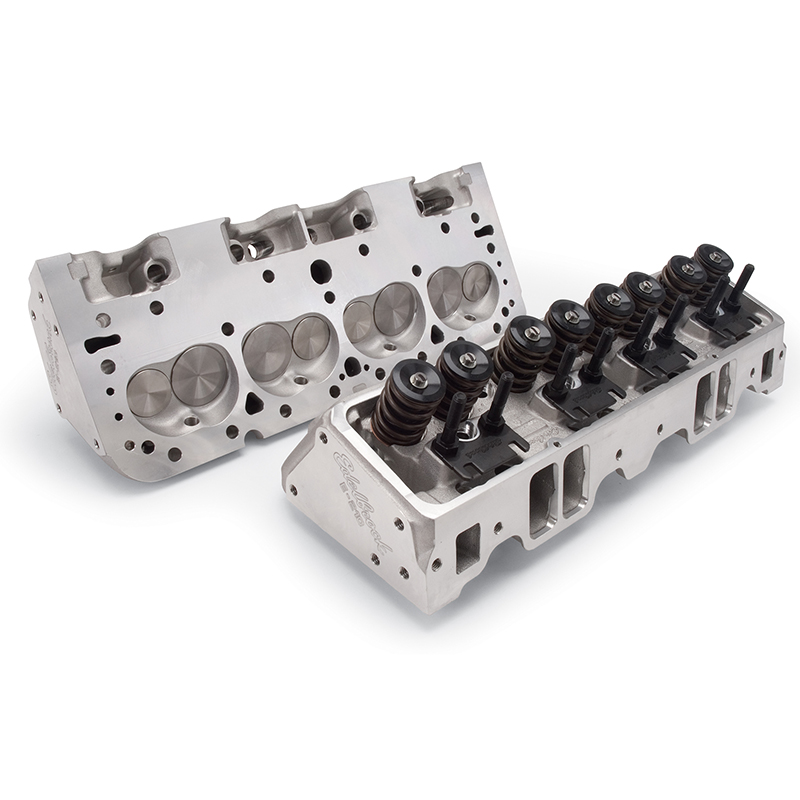

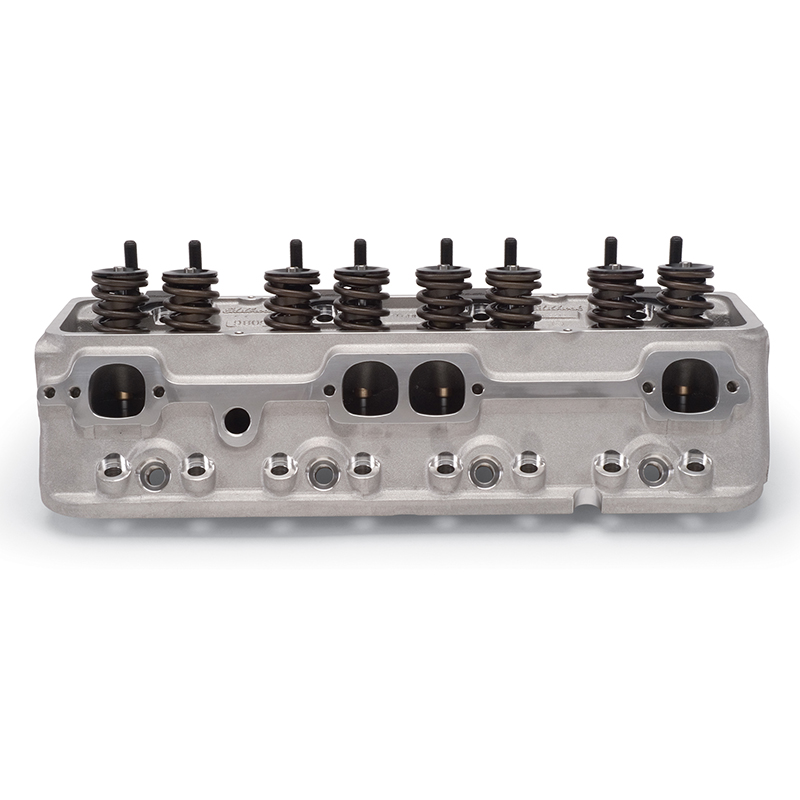

Edelbrock E210 Aluminum Chev SB Heads
Provides race-level performance while maintaining full compatibility with OEM equipment. They feature larger 210cc runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series and larger displacement engines. The exhaust port flange is in the stock locations to allow for the use of off-the-shelf headers and hardware, while the enlarged valves and ports support the power needed to compete at engine speeds of up to 6500 rpm.
Assemblies feature 2.080"/1.600" 1-piece stainless steel valves, high quality springs, retainers and keepers, guide plates and 3/8" rocker studs. Made in USA.
Part Type: Cylinder Head
Application: Chevrolet Small Block
Cylinder Head Material: Aluminum
Bare or Assembled: Assembled
Combustion Chamber Size: 64cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Intake Port Volume: 185cc
CNC Machined Intake Port: No
Intake Port Flow: 275 cfm @ .600” Lift/ 28
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets: Fel-Pro #1206 or Equivalent
Exhaust Port Volume: 75cc
CNC Machined Exhaust Port: No
Exhaust Port Flow: 175 cfm @ .600” Lift/ 28
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets: Fel-Pro #1405 or Equivalent
Spark Plug Style: Straight
Suggested Spark Plug: 14mm x .3/4” reach, 5/8” hex
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32” (.3415”)
Valve Seats: Yes
Valve Job: 3-Angle
Intake Valve Diameter: 2.080"
Intake Valve Included: Yes
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: Yes
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: Yes, 1.550” Dual with Damper
Valve Spring Application: Hydraulic Roller, 145lbs. Seat, 380lbs. Open, .650” Max Lift
Valve Springs Retainers Included: Yes
Valve Locks Included: Yes (7 Degree)
Valve Seals Included: Yes (Umbrella)
Rocker Studs Included: Yes (3/8”)
Guide Plates Included: Yes
Valve Cover Mounting Style: Perimeter
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts:
Suggested Head Studs:
Suggested Stud Girdle: Power Products 43100K, Howards Cams™ 90100, Jomar 1104
Head Bolt Torque with Oil: 65 ft./lbs.
Rocker Stud Torque with Oil: 45 ft./lbs.
Intake Bolt Torque with Oil: 25 ft./lbs.
Manufacturer: Edelbrock
Manufacturer's Part Number: 5087
Weight: 58.8 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
|
