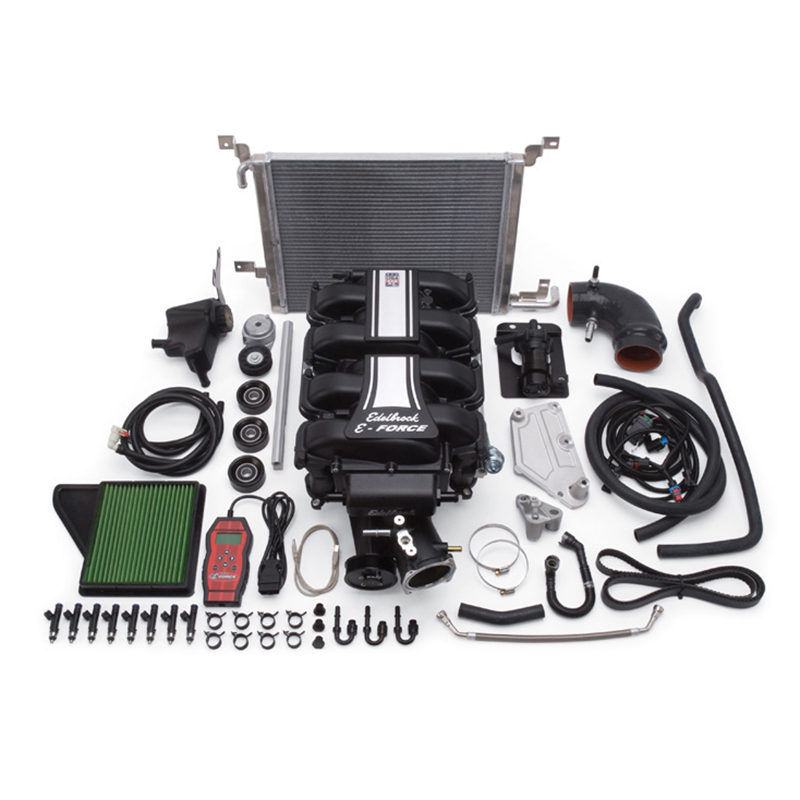

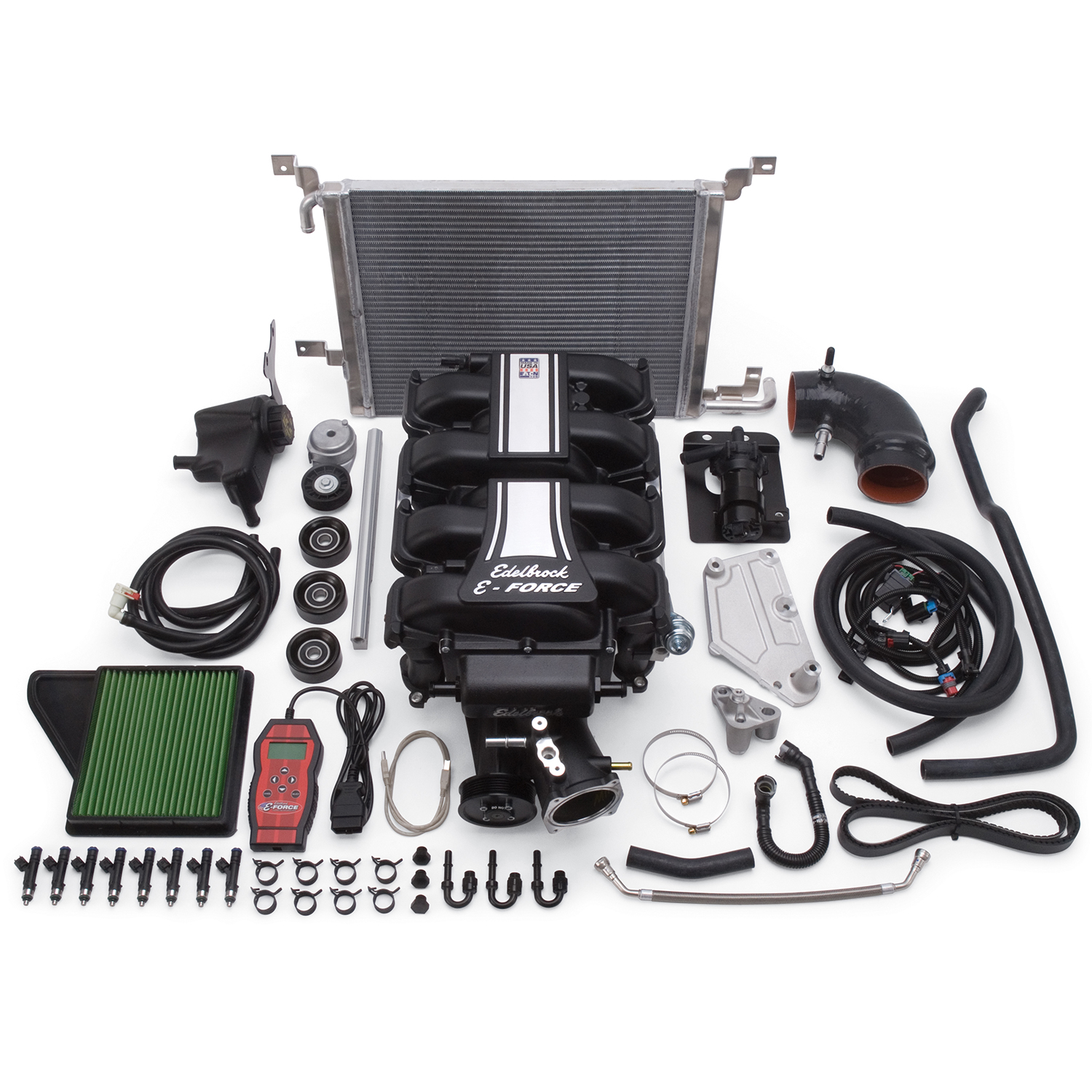

Edelbrock E-Force Supercharger System
Edelbrock E-Force Supercharger systems deliver excellent horsepower and torque in a complete, street-legal kit that fits under the factory hood. The core of each system is the Eaton Gen VI 2300 TVS Supercharger rotating assembly. Eaton's assembly features a four lobe design with 160 degrees of twist for maximum flow, minimum temperature rise, and quiet operation for excellent driveability.
- Bolt-on installation fits under the stock hood
- Everything fits right out of the box, no welding or grinding
- Features Eaton 2300 TVS rotor assembly, the same high quality rotors used by GM on the
Corvette ZR1. Self contained oil system with 100,000 mile service interval (no drilling or plumbing
required)
- Electronic PCM programming module with application specific tuning (included with street
legal systems)
- Integrated bypass valve for little to no decrease in fuel economy
- 50-state emissions street legal - see listings for details. Individual runners for each cylinder
allow for maximum low end torque and instant throttle response.
Part Type: Supercharger System
Application: Ford Mustang 5.0L 4V 2011-2014
Transmission Type: All
Supercharger Model: Eaton Gen VI 2300 TVS
Supercharger Finish: Black Powder Coated
Supercharger Pulley Included: Yes 3.750" Diameter
Supercharger Pulley Style: Serpentine
Serpentine Belt Included: Yes, Goodyear Gatorback
Secondary Belt Drive Included: No
Belt Tensioner Included: Yes, Heavy Duty Automatic
Belt Tensioner Brace Included: No
Crankshaft Pulley Grooves: 6
Idler Pulleys Included: Yes, Steel with Heavy Duty High Speed Bearings
Crank Damper Included: No
ECU Included: No
Throttle Body Included: No
Supercharger Manifold Assembly Included: Yes, Featuring Eaton TVS Rotors
Intake Manifold Gaskets Included: No
Air Filter Included: Yes, Panel Filter for Stock Airbox
Airbox Cover Included: No
Replacement Panel Filter: No
Cold Air Intake System Included: No
Mass Air Flow Sensor Included: No
Engine Covers Included: No
Spark Plugs Included: No
Fuel Injectors Included: Yes, 50 lbs/hr
Fuel Rails Included: Yes, Extruded Aluminum
Fuel Pump Included: No
Fuel Pump Regulator Included: No
Wiring Harness Included: Yes, Plug & Play Electrical
Linkage Included: No
Oil Cooler Included: No
Intercooler Included: Yes, 110 Sq. In.
Heat Exchanger for Intercooler System: Yes, Full Face, Low Temp.
Intercooler Water Pump Included: Yes, Electric
Intercooler Recovery Tank Included: Yes
Intercooler Hoses Included: Yes, Custom Molded
Water Crossover Included: No
Tensioner Brackets Included: No
Engine Valley Tray Included: No
Calibration Module Included: Yes, Handheld
Alternator/Idler Bracket Included: No
Front Drive Bracket Included: No
Installation Hardware Included: No
Emissions: 50-State Legal
Manufacturer: Edelbrock
Manufacturer's Part Number: 1588
UPC: 085347015887
Weight: 154 lbs.
Warranty: 3 Year Warranty. Edelbrock warrants each new supercharger kit to be free from defects in both workmanship and material for a period of 3 years from the date of purchase, provided that the product is properly installed, subjected to normal use and service and that the product is not modified or changed in any way, nor damaged because of negligence by customer or installer or used for racing or competition purposes. Warranty covers only the product itself and not the cost of installation or removal.
Quantity: Sold as Kit
|
