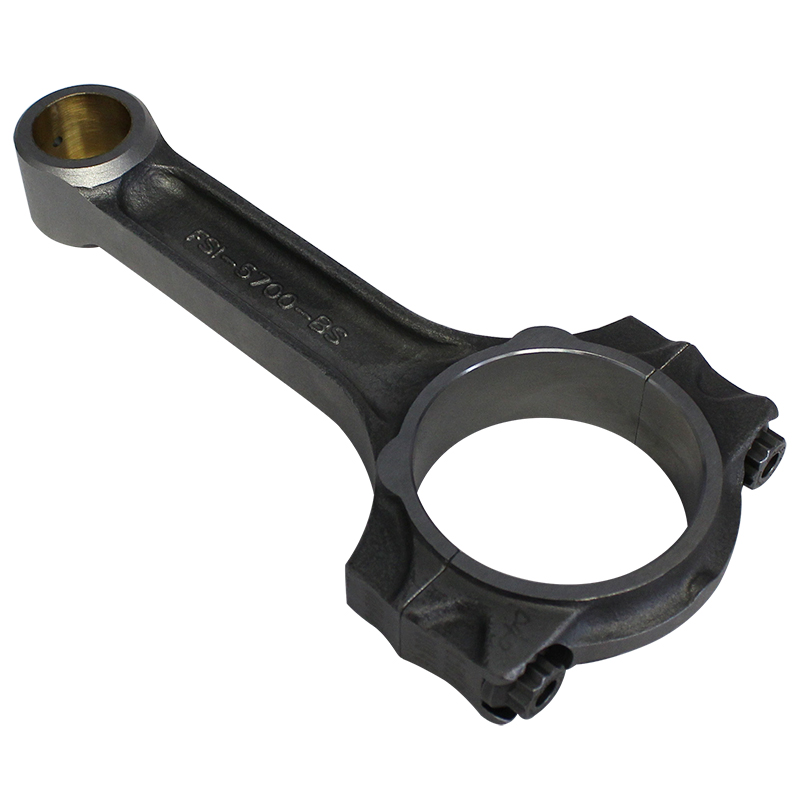

Eagle FSI 4340 Forged I-Beam Connecting Rods
Forged from SAE 4340 steel forgings. They feature 7/16" ARP 8740 cap screw style bolts with alignment sleeves for precise cap location. Silicone bronze pin bushings. Sizing is performed with the Sunned Kross grinding system. Sets are weight matched to +/- 1g. Sets of 8.
- SAE 4340 steel forgings
- 7/16" APR 8740 cap screws
- Sizing performed on Sunnen Kross grinding system
Part Type: Connecting Rods
Application: Chevrolet Small Block
Connecting Rod Beam Style: I-Beam
Material: 4340 Forged Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 5.700”
Connecting Rod Journal: 2.100”
Housing Bore: 2.225”
Pin Bore Diameter: .927”
Big End Width: .940”
Pin End Width: 1.000”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 590g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 180,000 psi
Fastener Torque: 68 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CEPCB633, King KEBCR807, EngineTech ENGBB253
Manufacturer: Eagle Specialty Products
Manufacturer's Part Number: FSI5700B
UPC: 00793348067827
Connecting Rod Set Weight: 10.0 lbs.
Warranty: Eagle Specialty Products, Inc. warrants their products to be free from defects in material and workmanship prior to installation. This warranty is void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, or alteration from their original design. Any product deemed defective after installation should be returned for inspection. The warranty is limited to the cost of replacement only, and excludes labor and other related costs.
Quantity: Sold in Sets of 8
|
