Eagle 4340 Forged H-Beam Connecting Rods, Chrysler BB, 6.760" |
|
 |

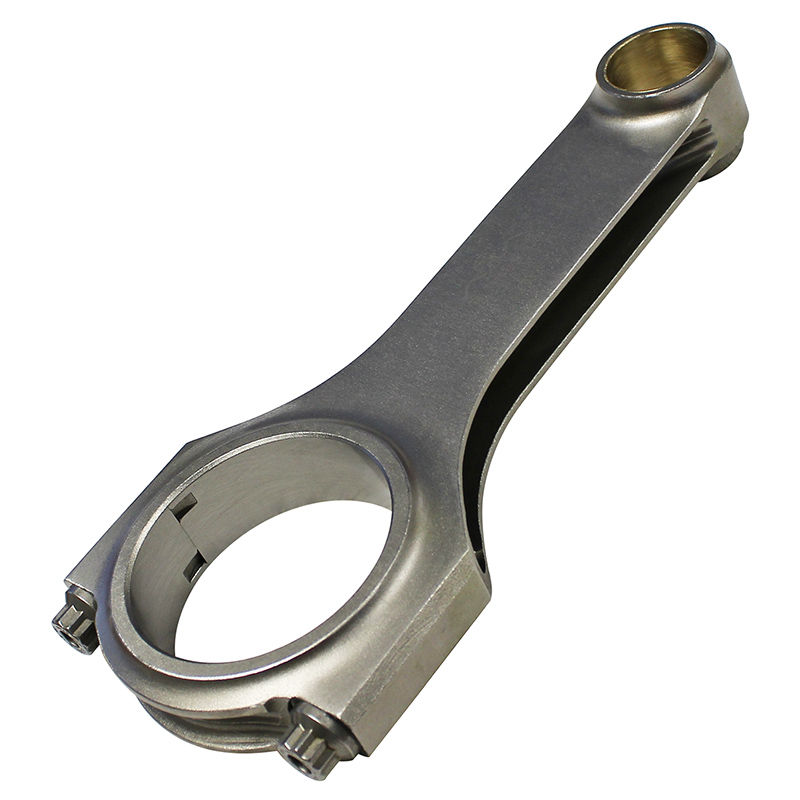

Eagle 4340 Forged H-Beam Rods
Eagle H-beam rods are forged from SAE 4340 2-piece forgings. The rod cap is forged separately so that the grain flow runs perpendicular to the load force which strengthens the rod. Also Eagle 3-D rods include a high content of nickel and chrome which increases strength and fatigue life.
7/16" ARP 8740 cap screws are standard. Sets of 8.
Part Type: Connecting Rods
Application: Chrysler BB
Connecting Rod Beam Style: H-Beam
Material: Forged 4340 steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.760”
Connecting Rod Journal: 2.375”
Housing Bore: 2.5005”
Pin Bore Diameter: 1.094”
Big End Width: 1.007”
Pin End Width: 1.250”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 890g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 160,000 psi
Fastener Torque: 63 ft/lbs. with ARP moly lube ONLY!
Advertised Horsepower Rating: 850
Advertised RPM Rating: 7,500
Recommended Bearings: Clevite CB527
Manufacturer: Eagle Specialty Products
Manufacturer's Part Number: CRS6760C3D
UPC: 793348053004
Connecting Rod Set Weight: 16.40 lbs.
Warranty: Limited 1-Year Material and Workmanship
Quantity: Sold in Sets of 8
|
|
|
|
|
|
|
|
