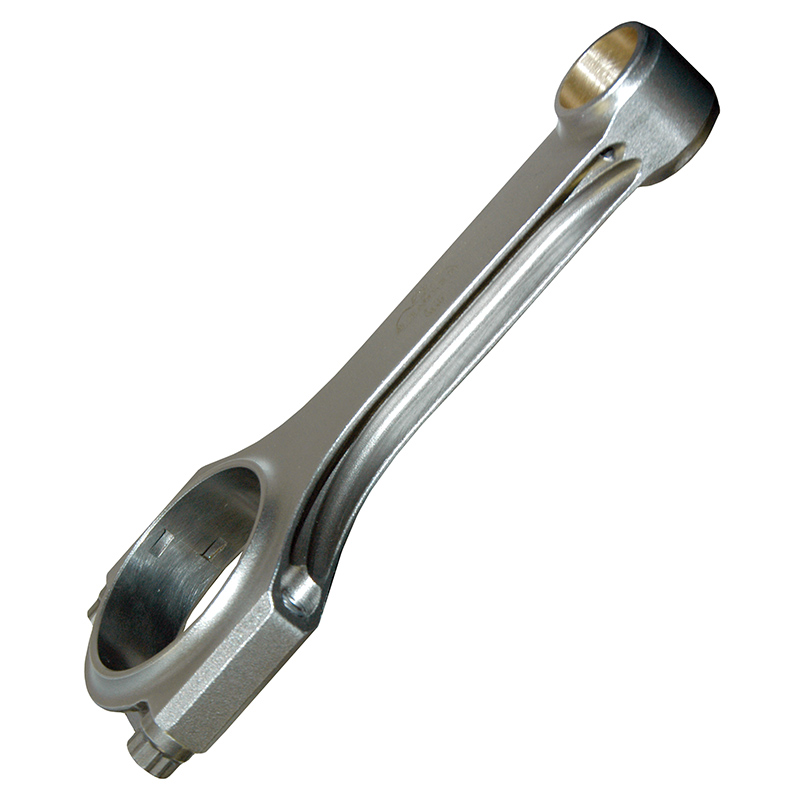

Eagle 4340 Forged H-Beam Rods
Eagle H-beam rods are forged from SAE 4340 2-piece forgings. The rod cap is forged separately so that the grain flow runs perpendicular to the load force which strengthens the rod. Also Eagle 3-D rods include a high content of nickel and chrome which increases strength and fatigue life. 7/16" ARP 8740 cap screws are standard. Sets of 8.
Part Type: Connecting Rods
Application: Chev SB Large Journal, Ford 351C (Stroker Applications)
Connecting Rod Beam Style: H-Beam
Material: 4340 Forged Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.000"
Connecting Rod Journal: 2.100"
Housing Bore: 2.225"
Pin Bore Diameter: .927"
Big End Width: .940"
Pin End Width: 1.060"
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 640g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 160,000 psi
Fastener Torque: 63 ft/lbs. with ARP moly lube ONLY on threads
Advertised Horsepower Rating: 700
Advertised RPM Rating: 7,500
Recommended Bearings: Clevite CB663, King CR807, ACL 8B663, Enginetech BB253
Manufacturer: Eagle Specialty Products
Manufacturer's Part Number: CRS6000B3D
UPC: 793348038803
Connecting Rod Set Weight: 12.30 lbs.
Warranty: Limited 1-Year Material and Workmanship
Quantity: Sold in Sets of 8
|
