Dart, Pro Assembled 565ci Chev BB Short Block, Flat Top |
|
 |

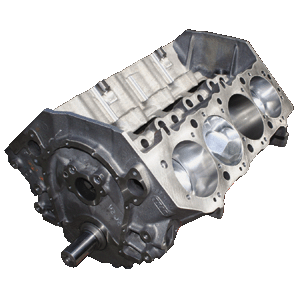

Dart Pro Assembled Chev BB Short Block
A step above the rest. Pro built by the experts at Dart. They start with a Dart Big "M" Sportsman block. They custom fit it with quality name brand parts including a Callies Compstar 4340 forged steel crankshaft, Callies Compstar 4340 steel H-beam rods, JE forged aluminum pistons, Howards True Seal™ plasma moly rings and Clevite "H" series rod and main bearings. All components are internally balanced and assembled to Dart's high standards. A Competition Products exclusive. Why pay more for less? No warranty expressed or implied.
Extra Freight Applies.
Product Type: Engine Short Block
Application: Chev BB 565ci
Bore: 4.600"
Stroke: 4.250"
Block: Dart Big "M" Sportsman
Deck Height: 9.800"
Main Caps: Ductile Iron 4-Bolt (all 5 positions)
Main Cap Bolts: Dart
Crankshaft: Callies CompStar 4340 Forged Steel
Pistons: SRP Forged
Piston Dome Type/Volume: -3cc Flat Top
Compression: 10.6 w/112cc, 9.7 w/118cc, 9.3 w/124cc heads
Connecting Rods: 6.385" Callies CompStar 4340 Steel H-Beam (Bushed)
Connecting Fasteners: ARP L-19 Capscrews
Rings: Howards HRC True Seal Plasma Moly
Rod Bearings: Clevite (H-Series)
Main Bearings: Clevite (H-Series)
Cam Bearings: Yes (Coated)
Freeze Plugs: Brass
Balanced: Yes (Internal)
Assembled: Yes
Flexplate Included: No
Harmonic Balancer Included: No
Manufacturer: Competition Products / Dart Machinery
Manufacturer's Part Number: 97360565
|
|
|
