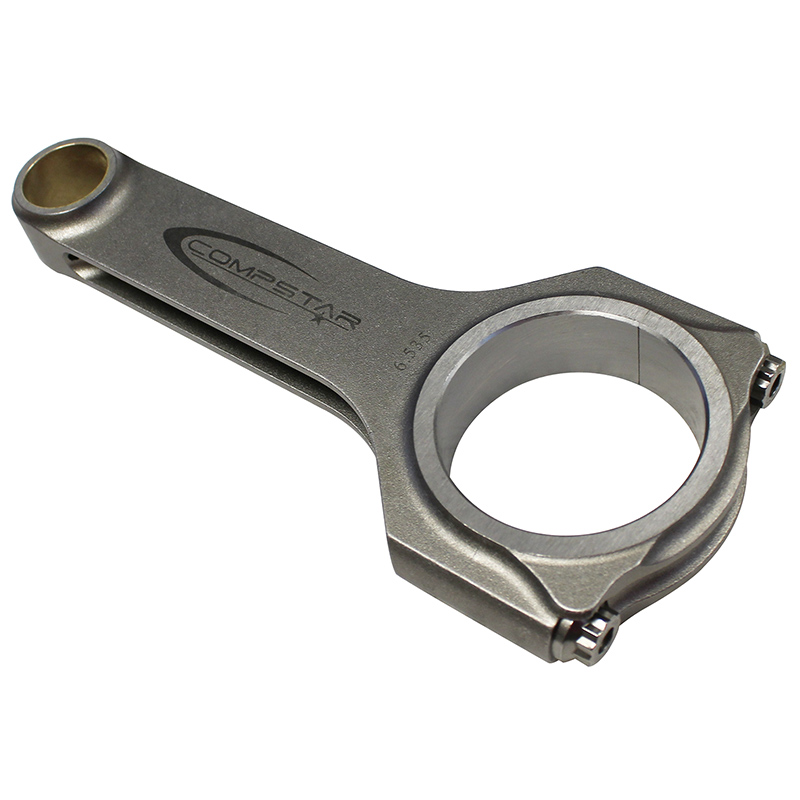

Compstar 4340 Forged H-Beam Rods
Compstar connecting rods have what it takes to make your engine build trouble free and your finished product reliable. Every detail of this highly stressed component has been carefully analyzed to maximize repeatability and dependability. Designed with higher horsepower stroker motors in mind from the start. ARP L-19 capscrews are standard. Set of 8
Part Type: Connecting Rods
Application: Chev BB
Connecting Rod Beam Style: H-Beam
Material: SAE 4340 Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.385”
Connecting Rod Journal: 2.200”
Housing Bore: 2.325”
Pin Bore Diameter: .990”
Big End Width: .990”
Pin End Width: 1.050”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 816g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes
Fastener Type: Cap Screw
Fasteners: 7/16” ARP L-19
Fastener Head Style: 12 Point
Fastener Yield Strength: 230,000 psi
Fastener Torque: 92 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CEPCB743, King KEBCR808, ACL8B743, EngineTech ENGBB619
Manufacturer: Callies Performance Products
Manufacturer's Part Number: CSB6385ES3B9AH
Connecting Rod Set Weight: 16.1 lbs.
Warranty: Limited 1-Year Material and Workmanship
Quantity: Sold in Sets of 8
|
