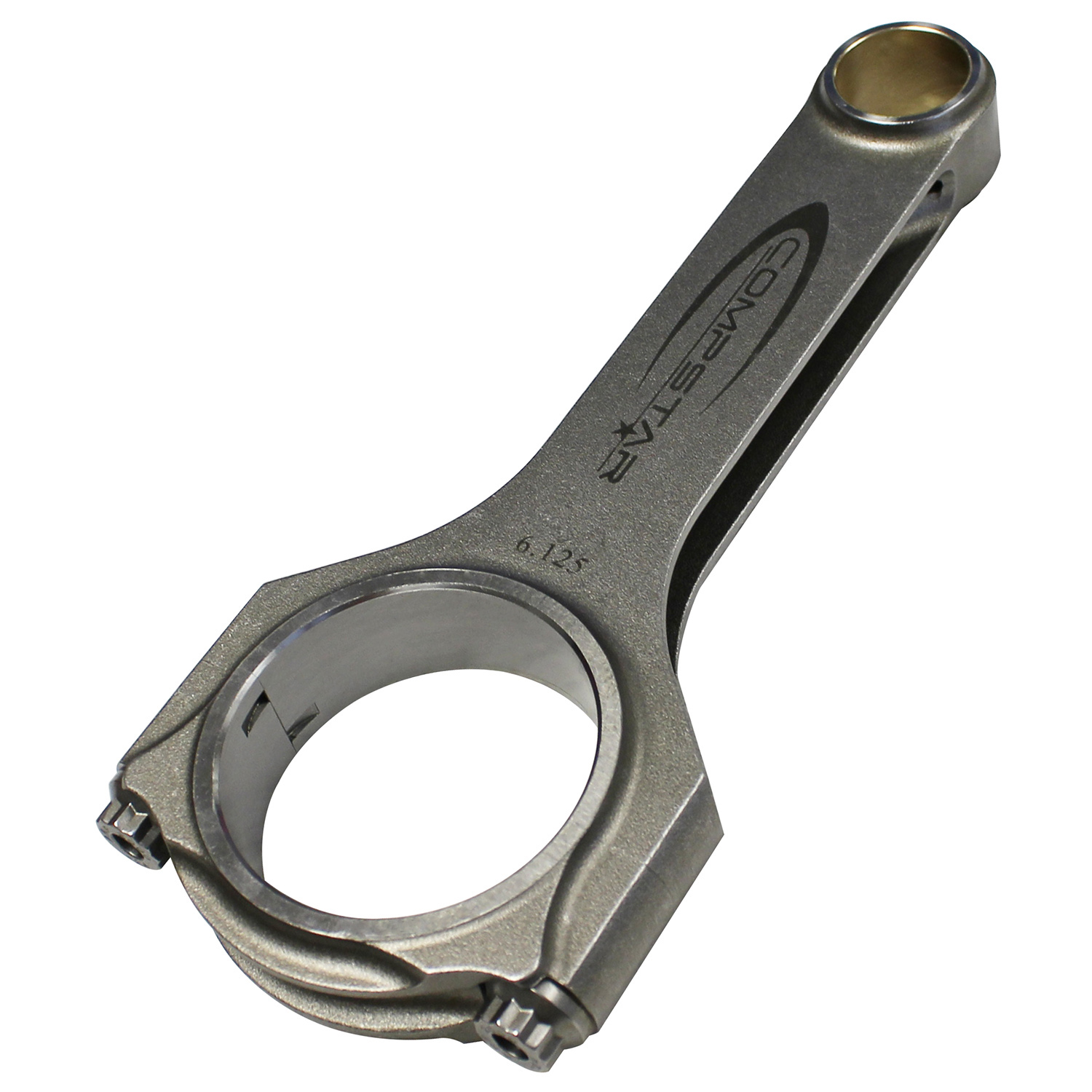

Compstar 4340 Forged H-Beam Rods
Compstar connecting rods have what it takes to make your engine build trouble free and your finished product reliable. Every detail of this highly stressed component has been carefully analyzed to maximize repeatability and dependability. Designed with higher horsepower stroker motors in mind from the start. Will clear a .660" lift cam on a .900" base circle with a 4.000" stroke crank without any rod modification. ARP2000 capscrews are standard. Sets of 8
Part Type: Connecting Rods
Application: Chev SB Large Journal
Connecting Rod Beam Style: H-Beam
Material: SAE 4340 Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.000”
Connecting Rod Journal: 2.100”
Housing Bore: 2.225”
Pin Bore Diameter: .927”
Big End Width: .940”
Pin End Width: .960”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 587g
Weight Matched Set: No
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes (will clear a .660" lift cam on .900" base circle with 4.00" stroke)
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 2000
Fastener Head Style: 12 Point
Fastener Yield Strength: 200,000 psi
Fastener Torque: 75 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CEPCB663, King KEBCR807, ACL8B663, EngineTech ENGBB253
Manufacturer: Callies Performance Products
Manufacturer's Part Number: CSA6000DS2A2AH
Connecting Rod Set Weight: 11.8 lbs.
Warranty: Limited 1-Year Material and Workmanship
Quantity: Sold in Sets of 8
|
