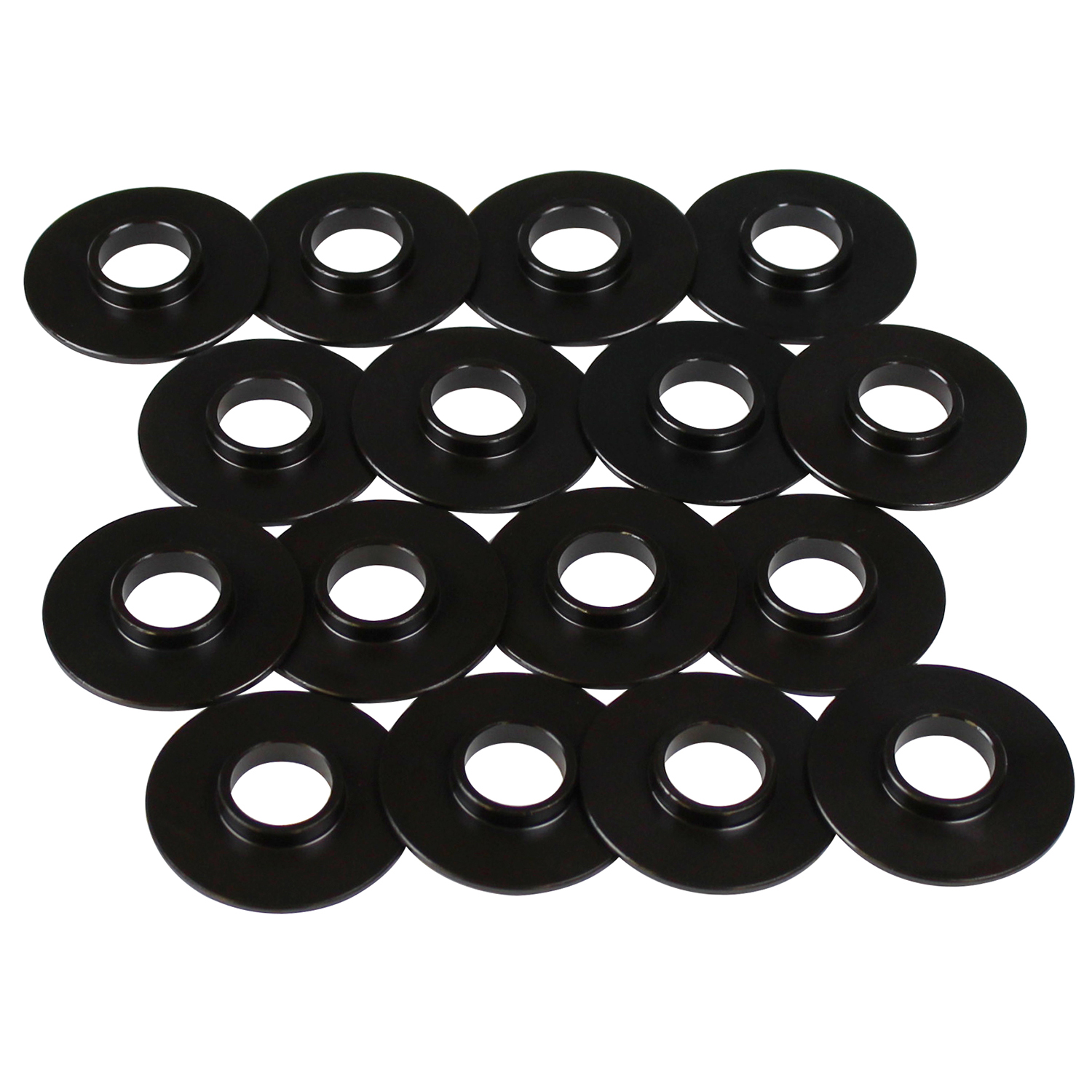

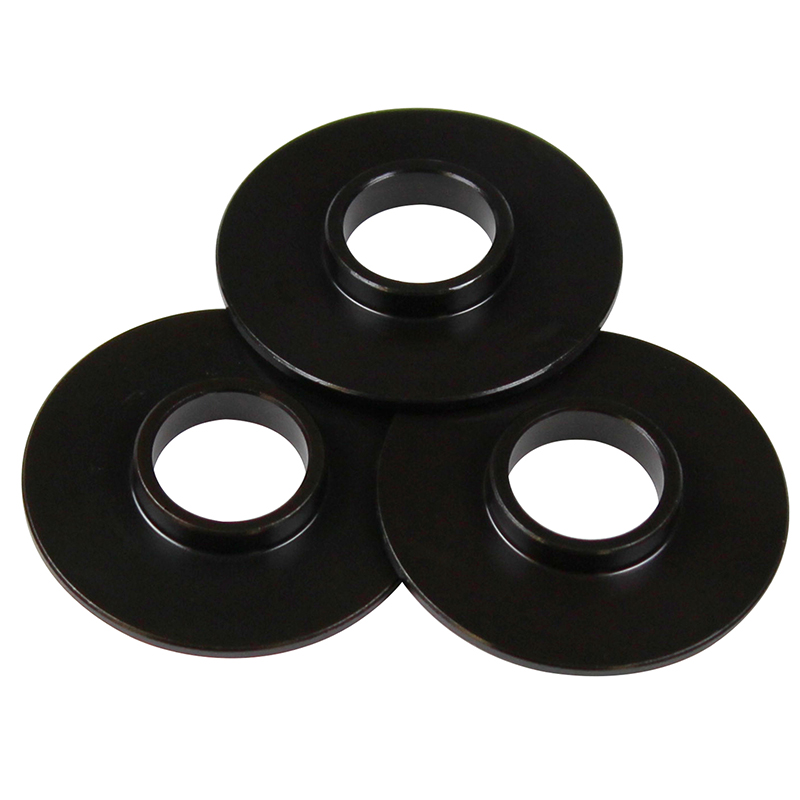

Spring locators are similiar to spring cups, but have the locating shoulder moved from the outside of the spring to the inside. This style requires less head machining than standard cups. Accurate and durable, .062" thick. Sold in sets of 16.
Part Type: Valve Spring I.D. Locators
Locator Cup Outside Diameter: 1.540"
Locator Cup Inside Diameter: .640"
Valve Spring Max Outside Diameter: NA
Valve Spring Inside Diameter: .715"
Locator Cup Thickness: .060"
Material: Hardened Alloy Steel
Manufacturer: Comp Cams
Manufacturer's Part Number: 4782-16
Valve Spring Locator Cup Weight: 1.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 16
