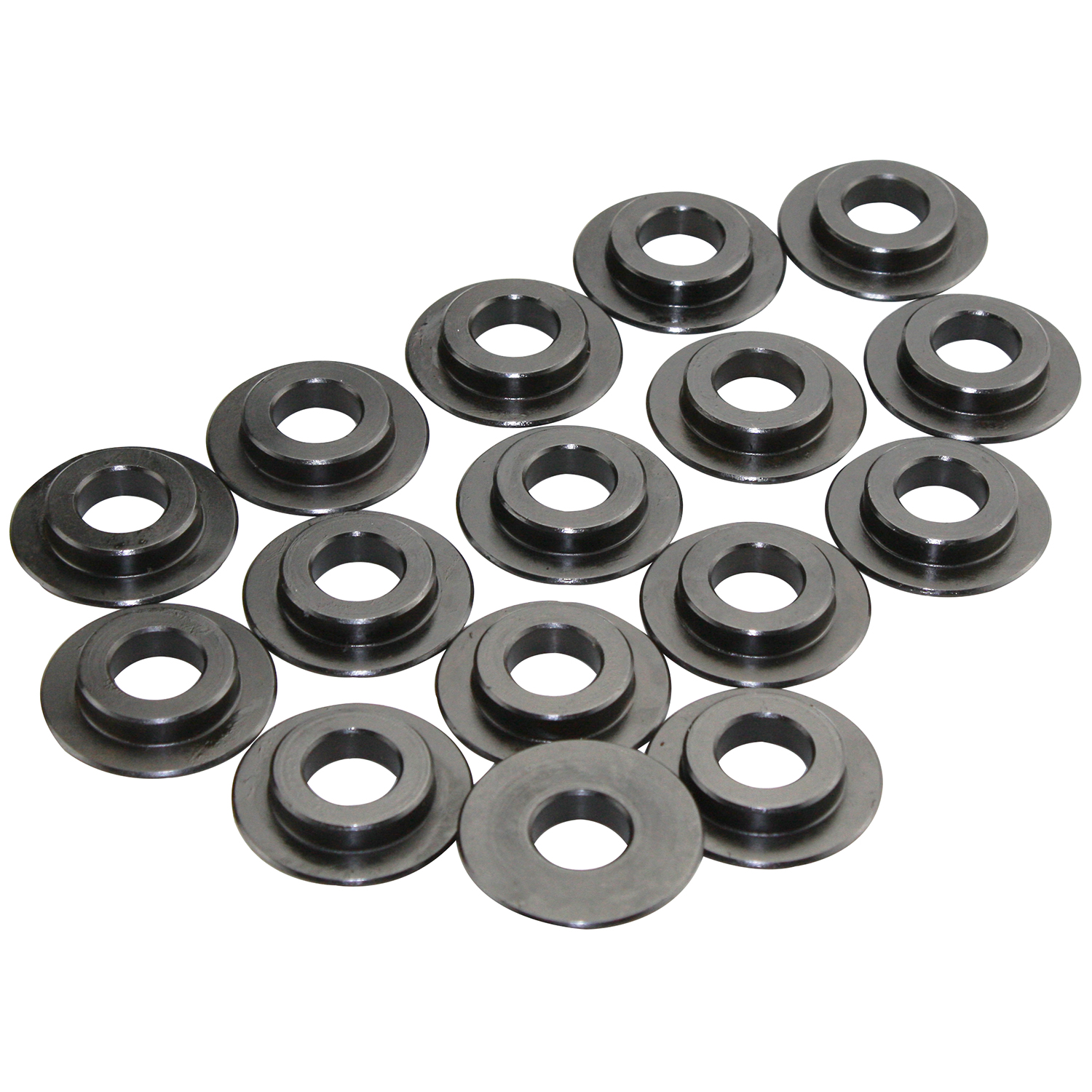

Comp Cams Valve Spring Locators
Designed as a thin, hardened steel alloy seat which will not only protect the head and shim, but also locate and hold the spring in place. This design offers an I.D. locator with the locating shoulder on the inside. This allows for a smaller spring pocket than would be allowed with a spring cup. .060" thick. Sets of 16.
Part Type: Valve Spring I.D. Locators
Locator Cup Outside Diameter: 1.300"
Locator Cup Inside Diameter: .510"
Valve Spring Max Outside Diameter: NA
Valve Spring Inside Diameter: .875"
Locator Cup Thickness: .060"
Material: Hardened Alloy Steel
Manufacturer: Comp Cams
Manufacturer's Part Number: 4861-16
Valve Spring Locator Cup Weight: 1.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 16
|
