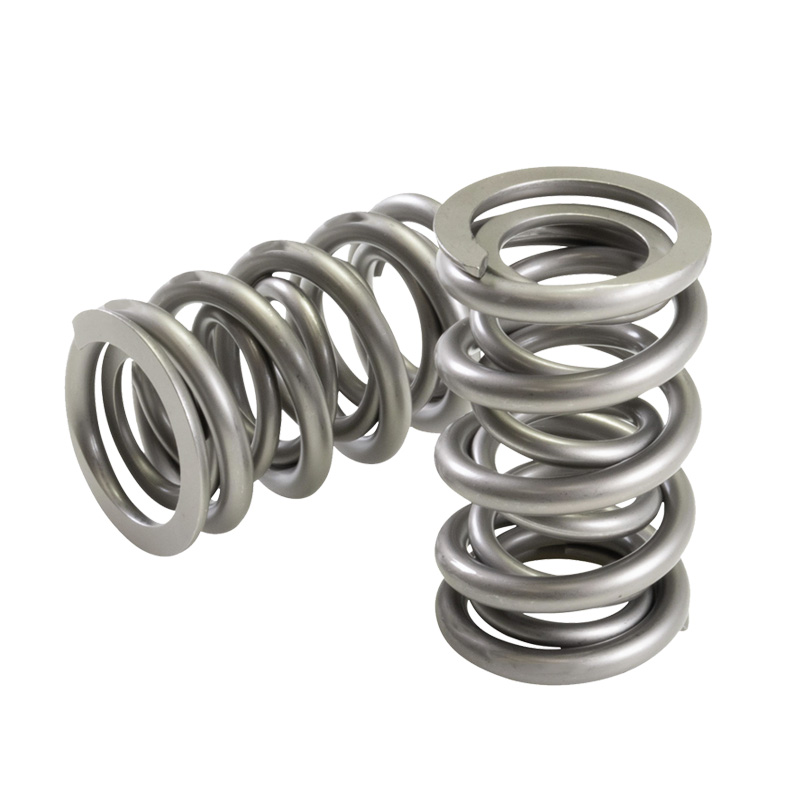

Comp Cams Dual Springs
Developed to provide higher pressures and longer life. Each spring is CNC coiled, stress relieved, ground, shot peened, and heat set. Inspected and batch tested.
Part Type: Valve Springs
UPC: 00036584428428
Valve Spring Style: Standard
Retainers Included: No
Number of Springs Per Valve: Dual
Maximum Valve Lift (in): 0.740"
Open Pressure (lbs.): 590
Outside Diameter of Outer Spring (in): 1.550"
Seat Pressure at Installed Height (lbs): 240
Installed Height (in): 1.900"
Coil Bind Height (in): 1.100"
Damper Spring Included: No
Valve Springs Coated: Yes
Valve Stem Seals Included: No
Locks Included: No
Inside Diameter of Inner Spring (in): 0.812"
Inside Diameter of Outer Spring (in): 1.136"
Spring Rate (lbs./in): 550lbs/"
Remanufactured: No
Quantity Sold as: Set of 16
|
