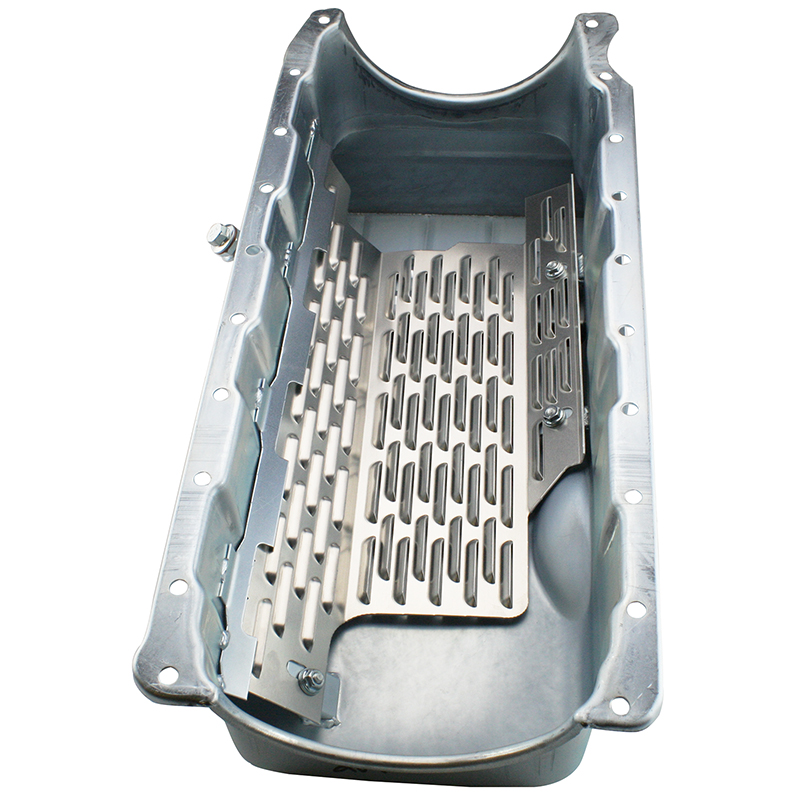

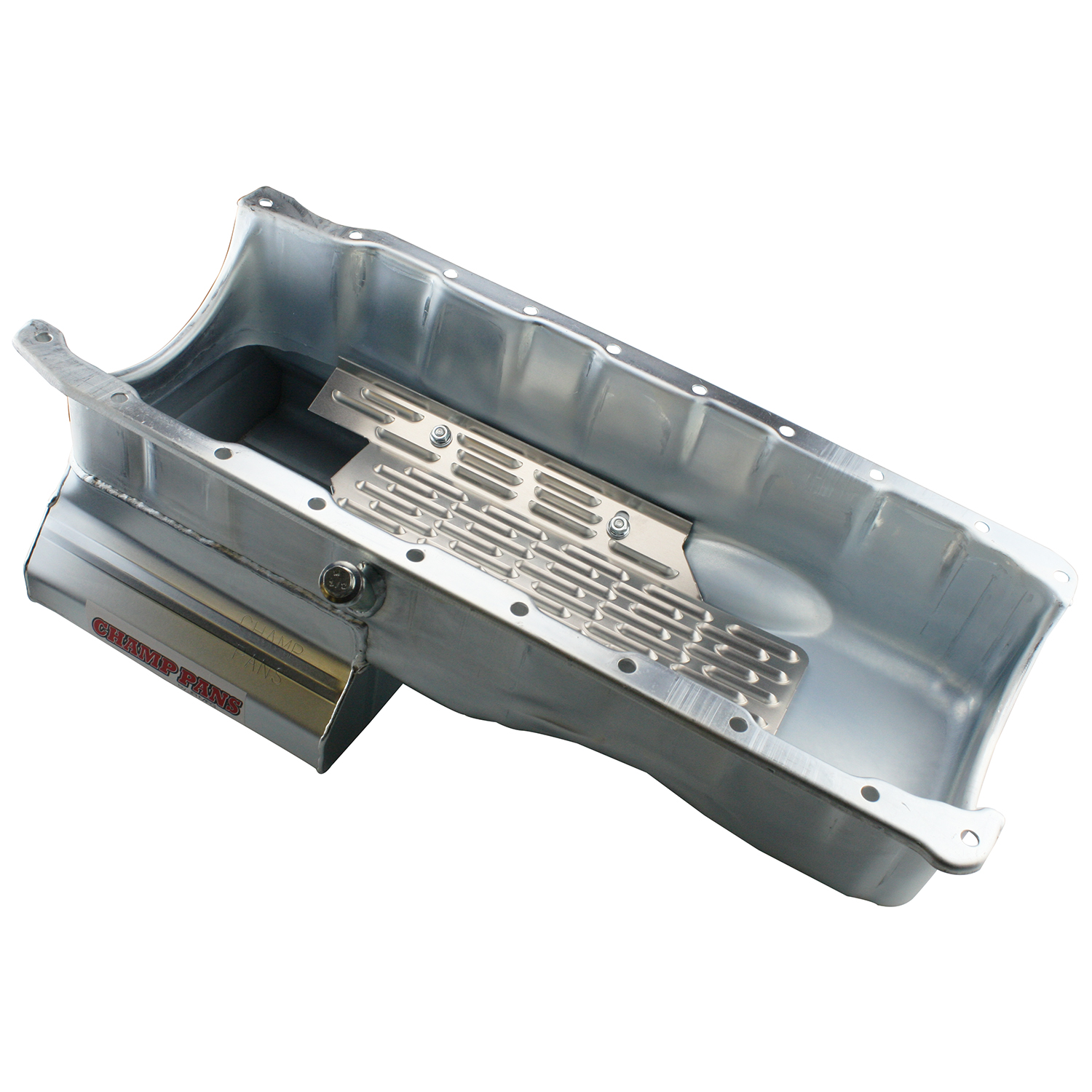

Champ Pans T-Style Low Profile Oil Pan
These 8" deep oil pans are designed to have sufficient ground clearance and increased oil capacity. The trap door baffle system is designed to keep oil in the sump area even under high acceleration. Well suited for street and mild strip applications. 8 quart capacity (including filter). Will clear stock or most mini starters.
Part Type: Oil Pan
Application: Chevrolet Big Block Gen 5/6 (except '62-'67 Chevy II and V8 Monza/Vega)
Oil Pan Style: Street/Strip Low Profile
Oil Pan Capacity: 7 Quarts (with Filter)
Oil Pan Depth: 8.000"
Oil Pan Sump Depth: 8.000"
Oil Pan Sump Length: 9.500"
Oil Pan Sump Width: 11.000"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 1-Piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.50"
Dipstick Provision: No
Dipstick Location: NA
Dipstick Included: No - Must use COPJR130 oil dipstick assembly
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M77HV/M99HV Style Pump: COP208BB
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Champ Pans
Manufacturer's Part Number: CP209
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
