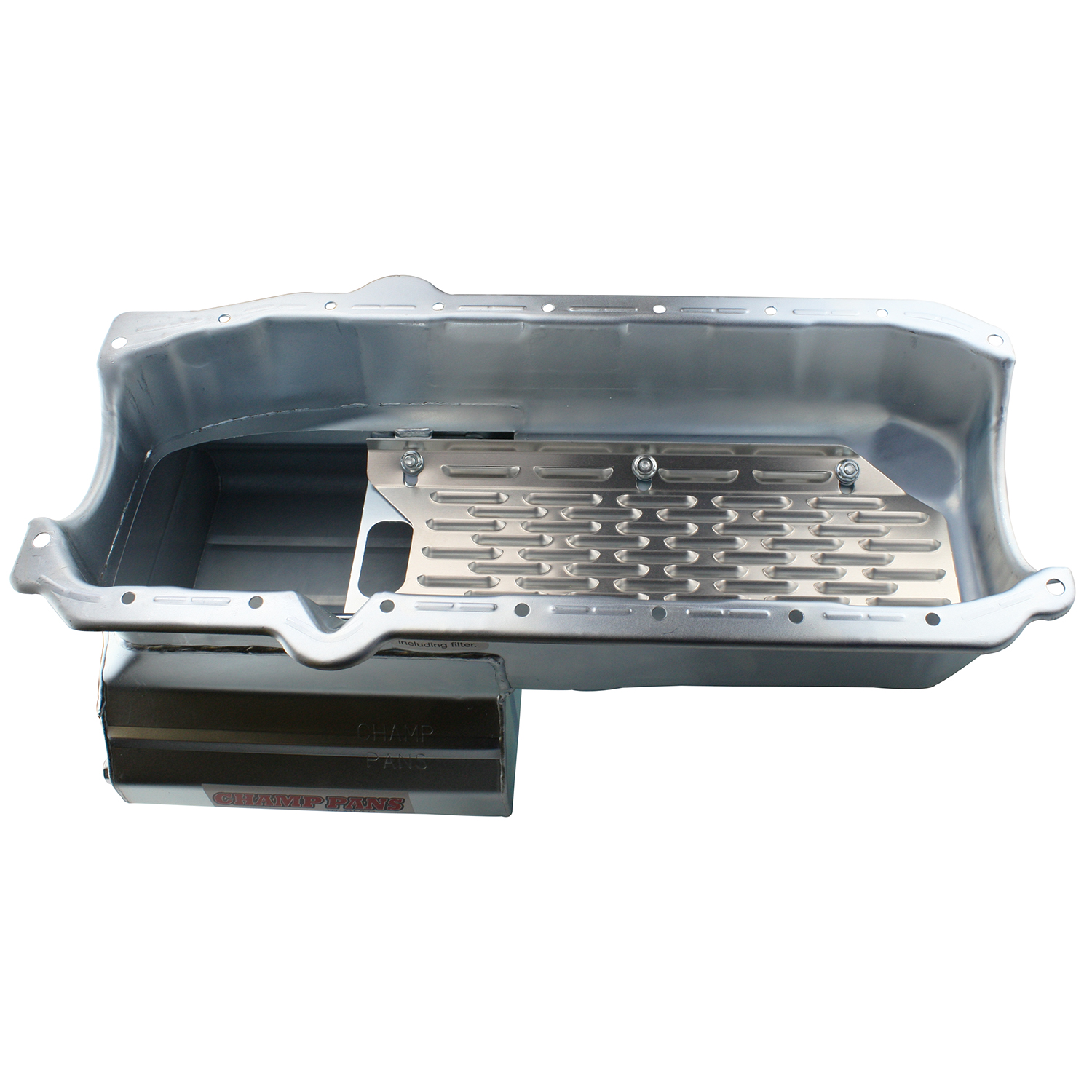

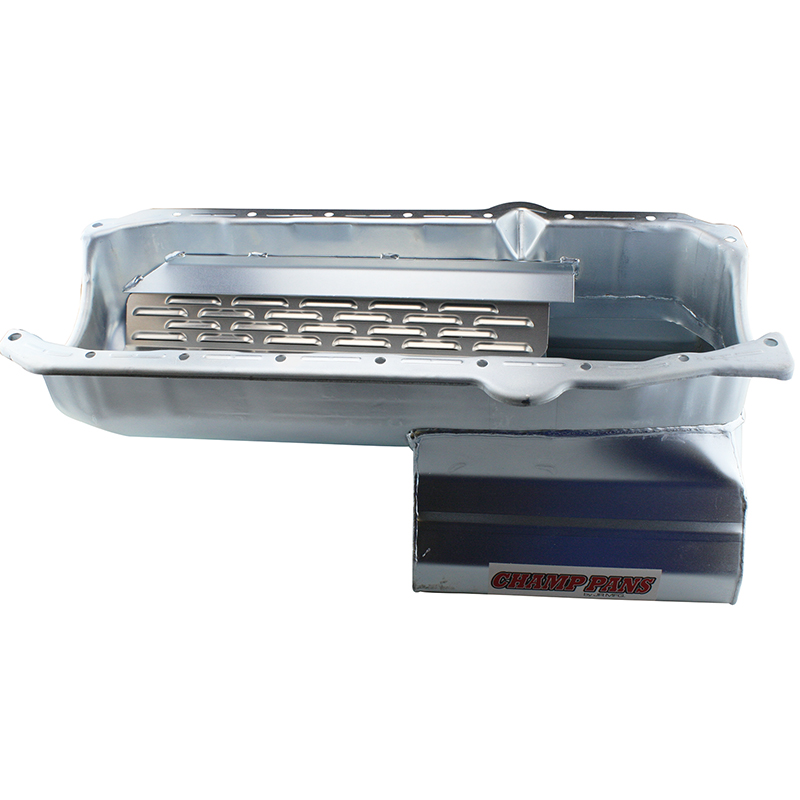

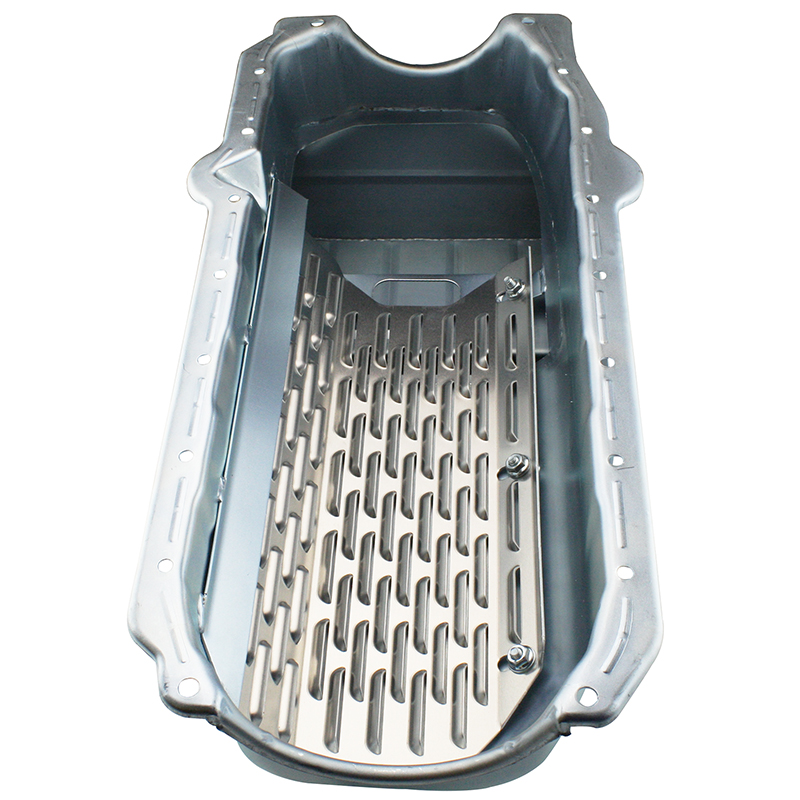

Champ Pans T-Style Low Profile Oil Pan
These 8" deep oil pans are designed to have sufficient ground clearance and increased oil capacity. The trap door baffle system is designed to keep oil in the sump area even under high acceleration. Well suited for street and mild strip applications. 8 quart capacity (including filter). Will clear stock or most mini starters.
Part Type: Oil Pan
Application: Chevrolet Small Block 1980-1985 & Dart SHP (except '62-'67 Chevy II and V8 Monza/Vega)
Oil Pan Style: Street/Strip Low Profile
Oil Pan Capacity: 8 Quarts
Oil Pan Depth: 8.000"
Oil Pan Sump Depth: 8.000"
Oil Pan Sump Length: 9.500"
Oil Pan Sump Width: 10.500"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 3.800"
Dipstick Provision: Yes
Dipstick Location: Driver Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: COP63SB
Recommended Pickup for M55HV Style Pump: COP60SB
Recommended Pickup for M155 Style Pump: COP64SB
Recommended Pickup for Melling Select 10552/10555 Style Pump: COP1007SB
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Champ Pans
Manufacturer's Part Number: CP60LTR
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
Note: Requires Thick Front Seal.
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
|
