CP55 Circle Track Oil Pan Kits
The CP55 steel claimer oil pans are ideal for stock front stub cars with stock a stock engine location. It has a kickout on the right side, three trap doors, one crank scraper, and an oil check level plug. It has an oil capacity of 8 quarts with filter.

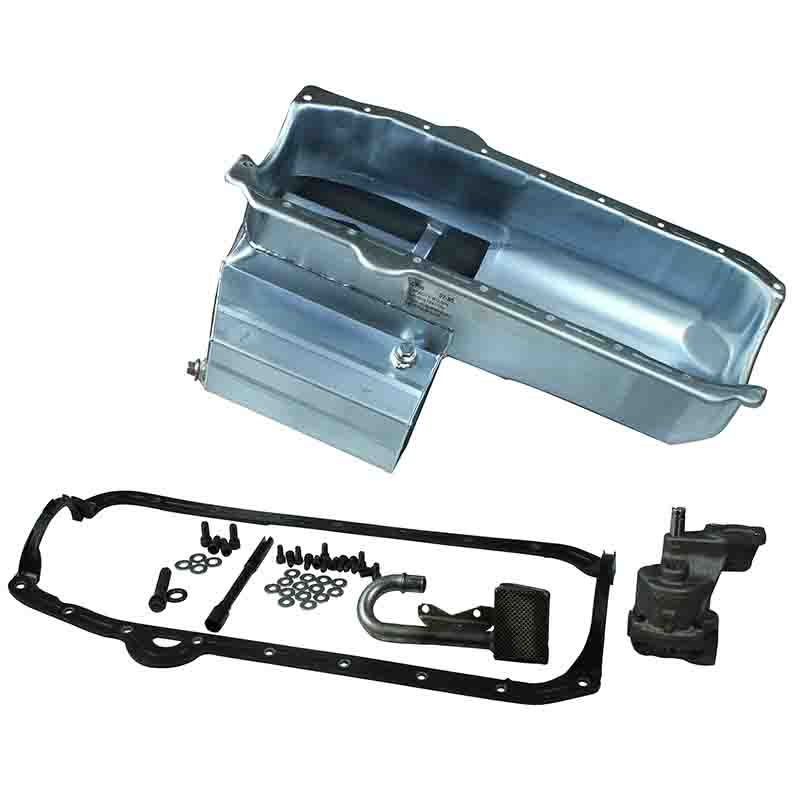

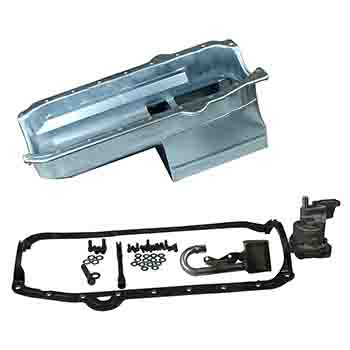

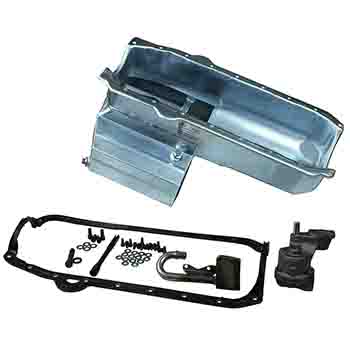

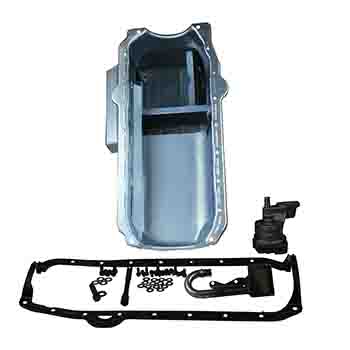

The entire oil pan kit includes:
• Champ Pans CP55 circle track oil pan
• Melling high volume oil pump
• Hardened oil pump shaft
• 12-point oil pump bolt kit
• Oil pan bolts
• Oil pump pickup
• 1-piece oil pan gasket
Part Type: Oil Pan Kit
Application: Chevrolet Small Block 1957-1979
Oil Pan Style: Circle Track
Oil Pan Capacity: 7 Quarts
Oil System Capacity: 8 Quarts
Oil Pan Depth: 8.000"
Oil Pan Sump Depth:
Oil Pan Sump Length:
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: No
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with OE Rod: 3.750"
Dipstick Provision: No
Dipstick Location: NA
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes, 3
Crank Scraper Included: Yes
Windage Tray Included: No
Sump Tray Included: No
Inspection Fitting: No
Oil Level Sight Plug: Yes
Oil Temp Fitting: No
Pickup Included: Yes
Recommended Pickup for M55HV Style Pump: COP80SB (included)
Oil Pump Included: Yes
Oil Pump Driveshaft Included: Yes
Drain Plug Included: Yes
Gaskets Included: Yes
Hardware Included: Yes
Oil Pan Material: Steel
Oil Pan Finish: Natural
Manufacturer: Champ Pans
Manufacturer's Part Number: CP55-KLH
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
|
