Champ Pans, CP100KO For 86 & Newer Block |
|
 |

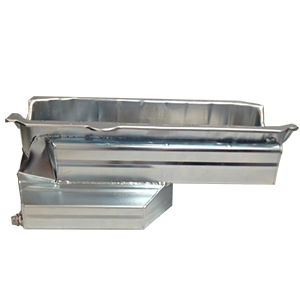

Champ Competition Series Steel Oil Pan
Champ oil pans are designed to deliver maximum performance for each specific application. That is why they manufacture over 1,000 different models. Each pan is specifically designed for the engine, the car, and other uses. Their pans are fitted on blocks or heads throughout the manufacturing process to ensure they easily install on their application. Champ uses 16-gauge cold-rolled steel because it is less likely to fatigue and will withstand the tough conditions that you put your engine through. In addition, they apply a clear zinc coating that is anti-corrosive to all their steel pans to give your pan a great lasting finish.
Part Type: Oil Pan
Application: '85 &Newer Chevrolet SB
Oil Pan Style: Circle Track with Full Length Kickout
Rear Main Seal Type: 1-Piece
Dipstick Location: Driver or Passenger Side
Oil Pan Capacity: 8 Quarts (with filter)
Oil Pan Sump Depth: 7"
Oil Pan Sump Width: 14"
Oil Pan Material: Steel
Oil Pump Pickup Included: No
Recommended Oil Pickup for M55 Style Pump : 1009SB
Recommended Oil Pickup for M55HV Style Pump : 100SB
Recommended Oil Pickup for M77HV Style Pump : 100BB
Recommended Oil Pickup for M155HV Style Pump : 1001SB
Oil Pan Hardware Included: No
Gaskets Included: No
Oil Pan Finish: Clear Zinc
Manufacturer: Champ Pans
Manufacturer's Part Number: CP100KORB
Weight: 17 lbs.
Quantity: Sold as Each
|
|
