Home  /   Transmission & Drivetrain  /  Transmission Dip Sticks

Airflow Research, Magnum Series Aluminum Chev BB Head, 345cc/121cc, Bare, CNC Chambers, Pair

Airflow Research, Magnum Series Aluminum Chev BB Head, 345cc/121cc, Bare, CNC Chambers, Pair

Item Number: AFR3450-1
  Be the first to review this item
Unit Price: $3,455.00
Out of Stock

Product specific shipping charge: $19.99
Quantity



Bookmark and Share


 Detailed Description

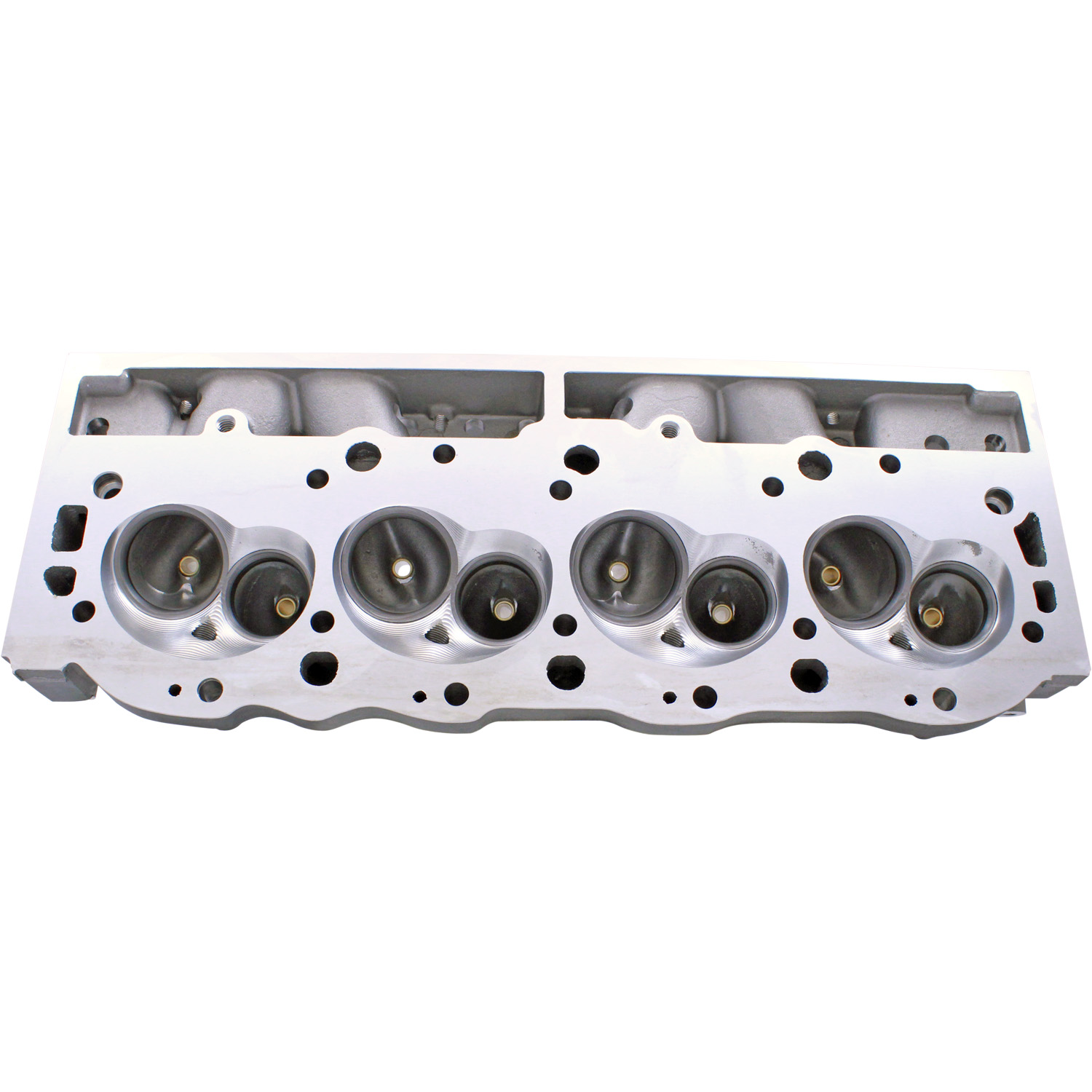

Airflow Research Magnum Series Aluminum Chev BB Head with CNC Chambers
New highly efficient port designs, an exclusive new combustion chamber provides impressive swirl figures and generates big low and midlift airflow figures. 3/4" thick decks, reinforced rocker bosses, and thick wall runners provide unparalleled durability. With CNC chambers.

Part Type: Cylinder Head
Application: Chevrolet Big Block with CNC Chambers
Cylinder Head Material: Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 121cc
CNC Machined Combustion Chambers: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 24
Intake Port Volume: 345cc
CNC Machined Intake Port: No
Intake Port Flow: 401 cfm @ .700" Lift/ 28"
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions: 2.435" x 1.765"
Suggested Intake Gaskets: Fel-Pro 1275 or Equivalent
Exhaust Port Volume: 132cc
CNC Machined Exhaust Port: No
Exhaust Port Flow: 280 cfm @ .700" Lift/ 28"
Exhaust Port Location: Raised .375"
Exhaust Port Shape: D-Shaped
Exhaust Port Dimensions: 1.720" x 1.920"
Suggested Exhaust Gaskets: Fel-Pro 1412 or Equivalent
Spark Plug Style:
Suggested Spark Plug: 14mm x .750" reach
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32" (.3415")
Valve Seats: Yes (Ductile Iron)
Valve Job: 5-Angle
Intake Valve Diameter: 2.250"
Intake Valve Included: No
Exhaust Valve Diameter: 1.880"
Exhaust Valve Included: No
Suggested Valve Length:
Valve Spring Pockets: 1.750" O.D.
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Perimeter bolt
Steam Holes Drilled: No
Heat Crossover: No

Suggested Head Bolts: ARP 135-3703 (Mark IV) ARP 135-3707 (Mark V)
Suggested Head Studs: ARP 235-4713
Suggested Stud Girdle:
Head Bolt Torque with Oil: 75 ft./lbs.
Rocker Stud Torque with Oil: 55-60 ft./lbs.
Intake Bolt Torque with Oil:
Manufacturer: Airflow Research
Manufacturer's Part Number: 3450-1
Weight:
Warranty:
Race Application, No warranty expressed or implied
Quantity: Sold as Pair
