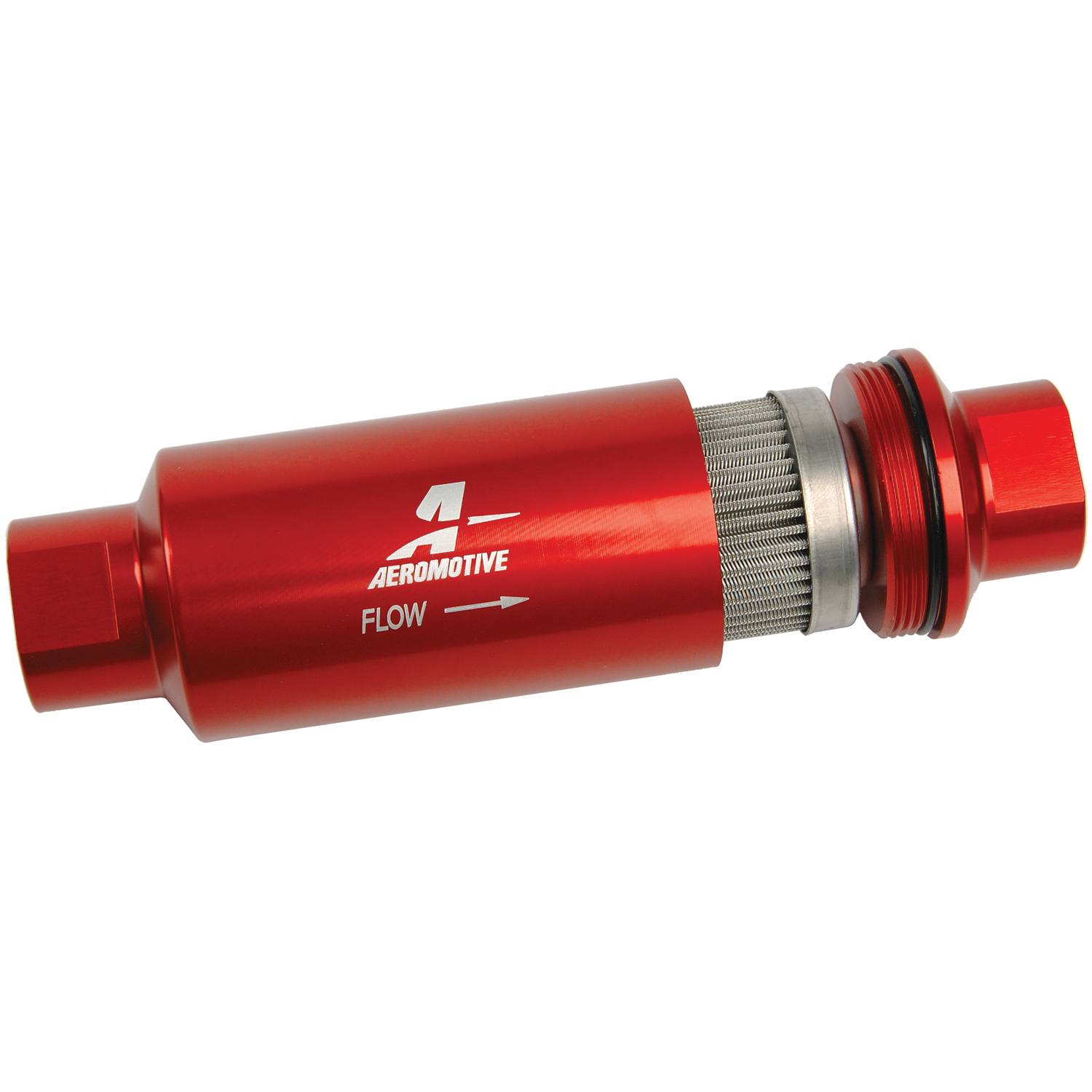

Aeromotive In-Line Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200-3,000 plus HP applications, these filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
Part Type: Fuel Filter
Application: Universal
Fuel Injection Compatible: Yes
Fuel Filter Style: In-Line
Flow Capability: 2000 lbs./hr.
Inlet Quantity: One
Inlet Size: -10 AN O-Ring
Inlet Attachment: Female Threads
Outlet Quantity: One
Outlet Size: -10 AN O-Ring
Outlet Attachment: Female Threads
Filter Element Included: Yes
Smallest Particle Filtered: 100 Microns
Replacement Element Part Number: AER12612
Filter Element Material: Stainless Steel
Filter Housing Material: T-6 6061 Aluminum
Filter Housing Finish: Red Anodized
Overall Length: 5.500"
Outside Diameter: 2.000"
Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Manufacturer: Aeromotive
Manufacturer's Part Number: 12304
Weight: .84 lbs.
Warranty: Sold with or without warranty, Limited 1 Year
Quantity: Sold as Each
|
