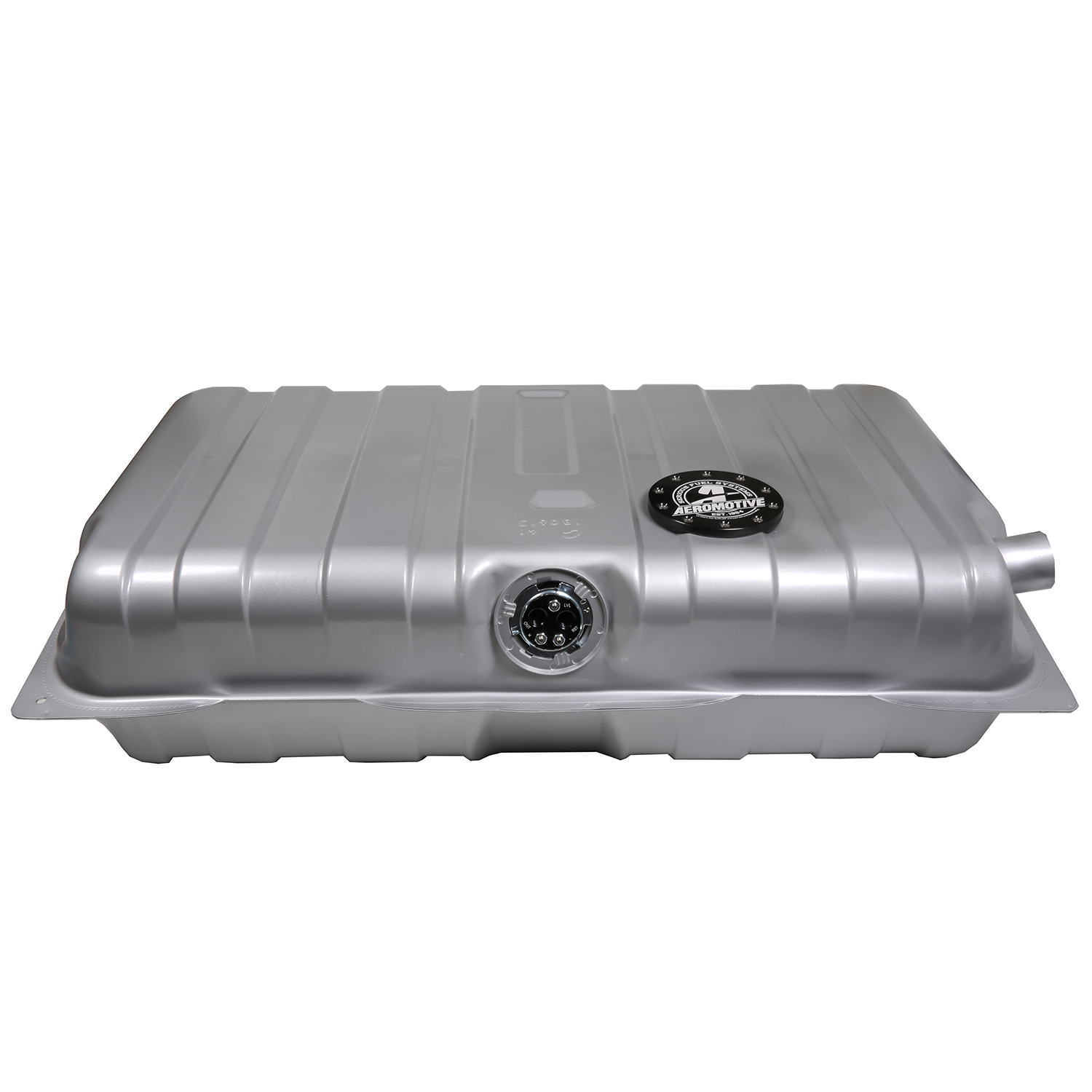

Aeromotive Gen II Stealth Fuel Tanks with Factory Installed Phantom Fuel Pump System
The new Gen II Stealth tank utilizes a patented and award-winning Phantom technology. This enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump. Which, in turn, ensures consistent fuel delivery and drivability even in low fuel conditions. These tanks fewture outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers. All Gen II Stealth tanks come out of the box completely assembled. as a true plug and play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.

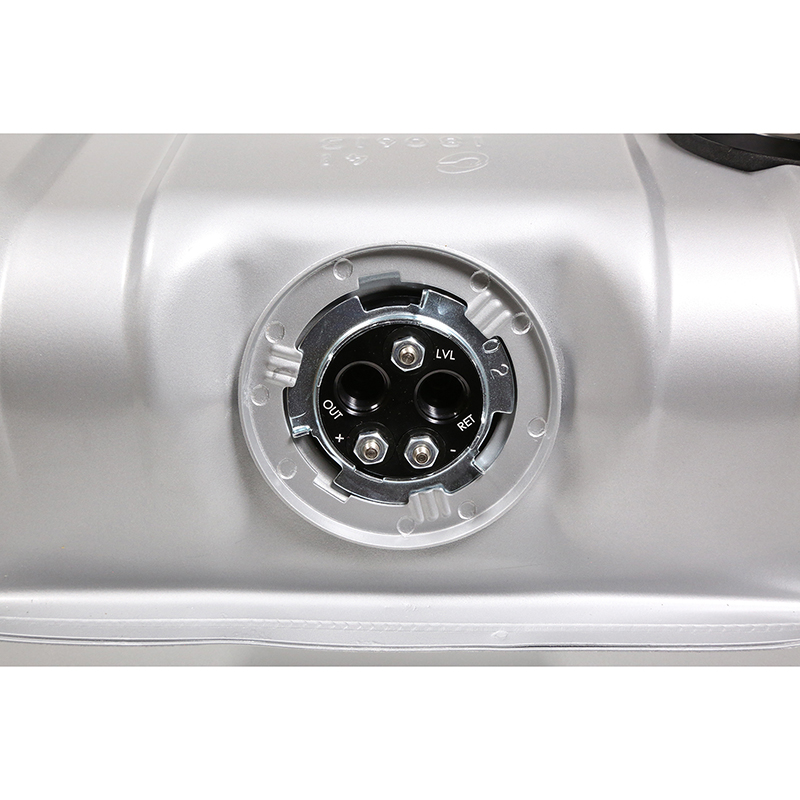

• Fuel pump, baffel & fuel level sending unit preinstalled & plumbed to a billet end cap in the factory outlet location.
• 340 lph fuel pump - will support fuel injection to 850hp (700hp forced induction), Carbureted to 1000hp (850hp forced induction)
• Everything you need for a reliable fuel delivery system mounted inside
• Patented & award-winning phantom technology
Part Type: Fuel Tank with Phantom Fuel Pump System
Application: Nova 1966-1967
Fuel Cell Type: Stealth
Capacity: 16 Gallon
Fuel Pump: 340 Phantom
Fuel Type: Gasoline
Flow Rate: 90 GPH/340 LPH
Sending Unit Included: Yes
Sending Unit Ohm Range: 0-90 ohms
Outlet Fitting Quantity: One
Outlet Fitting Size: -06 ORB Female
Return Fitting Quantity: One
Return Fitting Size: -06 ORB Female
Length: 27.000"
Width: 47.000"
Height: 10.000"
Baffled Sump: Yes
Mounting Hardware Included: No
Fuel Tank Material: Steel
Fuel Tank Finish: Silver Powdercoated
Manufacturer: Aeromotive
Manufacturer's Part Number: 18431
UPC: 00684980009682
Weight: 33.0 lbs.
Warranty: Sold with or without warranty, Limited 1 Year
Quantity: Sold as Each
|
