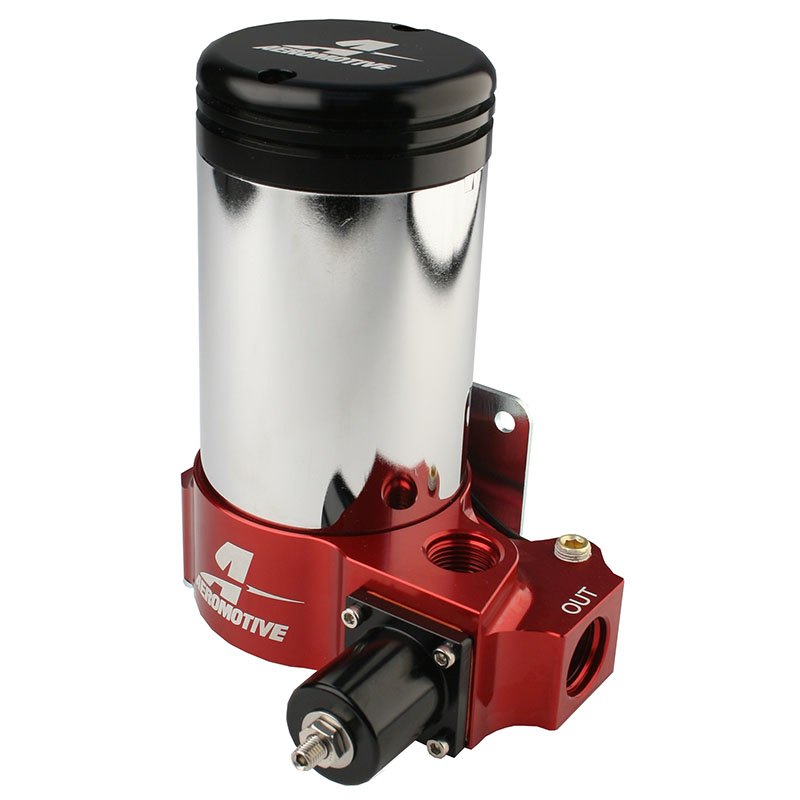

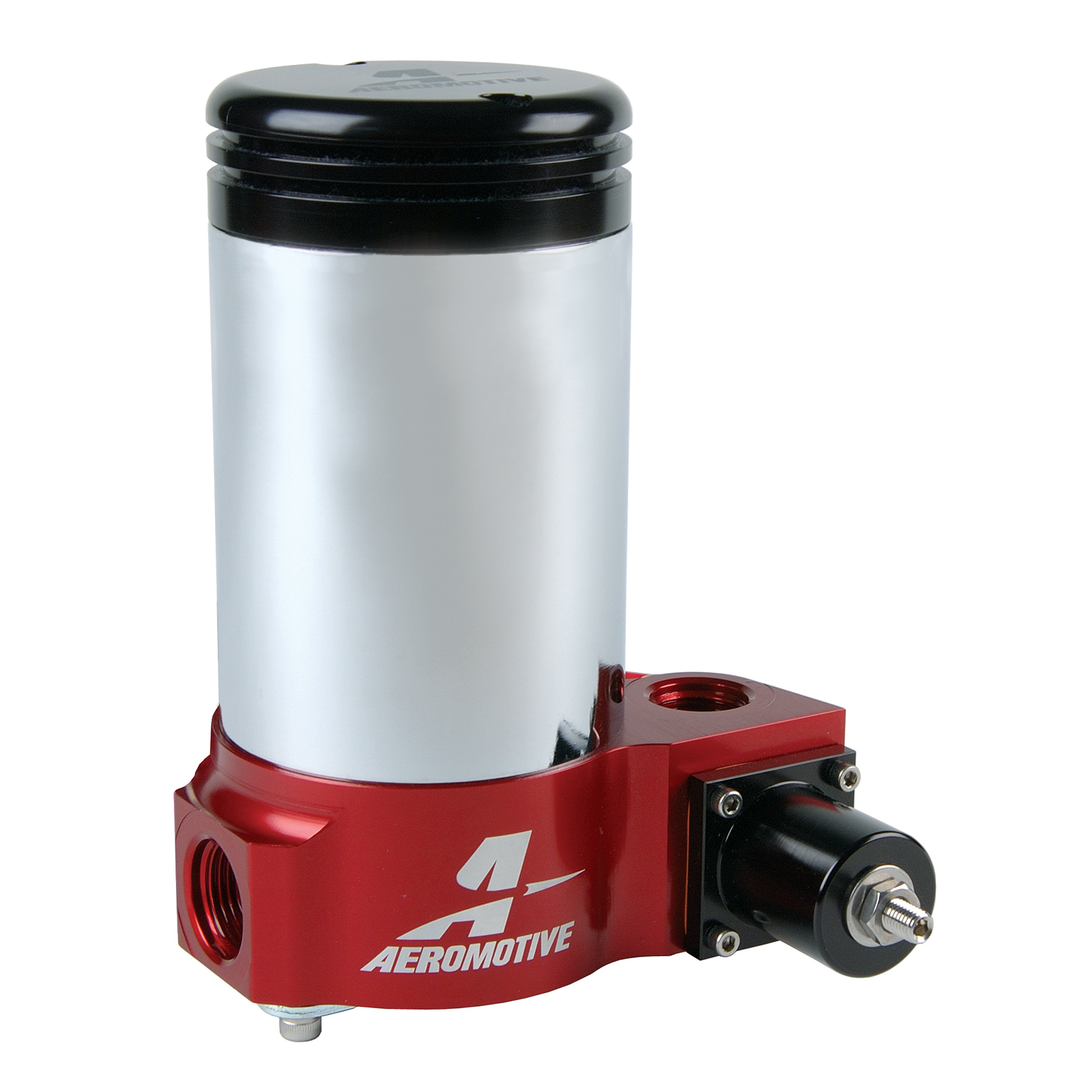

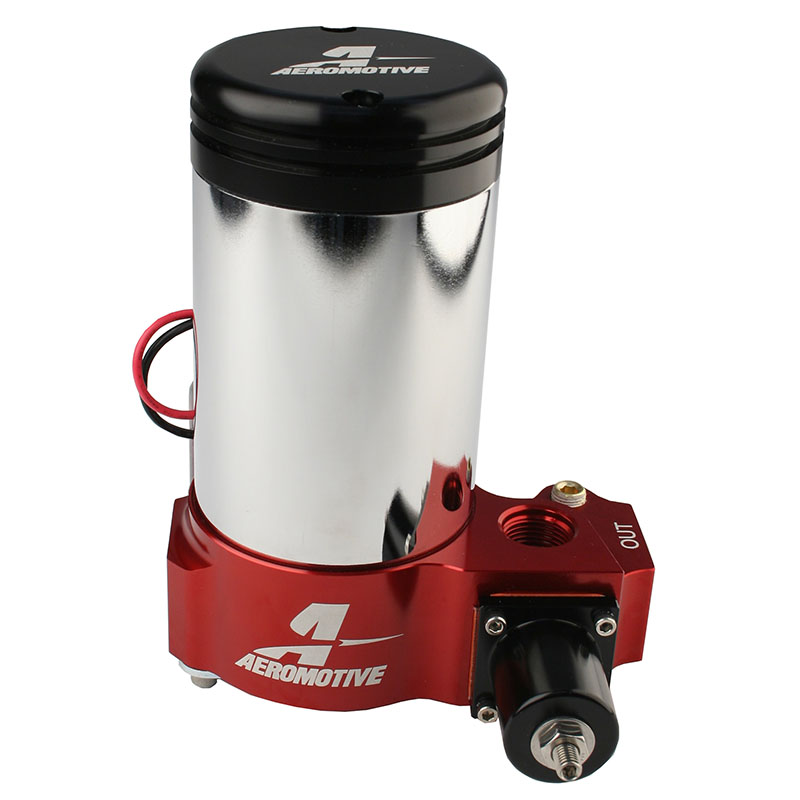

Aeromotive | A2000 Electric Fuel Pump
Flows enough fuel to support the world's quickest nitrous Pro-mods on gasoline. The industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights. ORB-10AN Inlet and Outlet prots (ORB-8AN return). Alcohol compatible. For drag racing applications producing 500-2500 HP on gasoline, and up to 1500 HP on alcohol. This is the fuel pump upgrade of choice for many Top Sportsman and Professional racers where consistent volume, rock steady, adjustable line pressure and overall reliability rank #1.
Part Type: Electric Fuel Pump
Application: Universal Carbureted Applications
Fuel Type: Gasoline
Alcohol Compatible: Yes
Diesel Compatible: No
Free Flow Rate: 350 gph
Maximum Pressure (psi): 30.0 psi
Fuel Pressure Regulator Required: Yes
Fuel Pressure Regulator Included: Yes
Fuel Pressure Regulator Style: Adjustable Bypass
Recommended Regulator: NA
Fuel Pressure Gauge Port: 1/8" NPT
Inlet Quantity: One
Inlet Attachment: Female Threads
Inlet Size: -10 AN
Outlet Quantity: One
Outlet Attachment: Female Threads
Outlet Size: -10 AN
Fuel Pump Amperage: 12-14 Amps @ 8 psi
Fuel Pump Material: Aluminum
Fuel Pump Finish: Red Anodized/Chrome
Mounting Bracket/Hardware Included: No
Manufacturer: Aeromotive
Manufacturer's Part Number: 11202
Weight: 7.0 lbs.
Warranty: All Aeromotive products sold are warranted free from defects in materials and workmanship for a period of one year from the original date of purchase. This warranty is to the original retail purchaser only.
Quantity: Sold as Each
|
