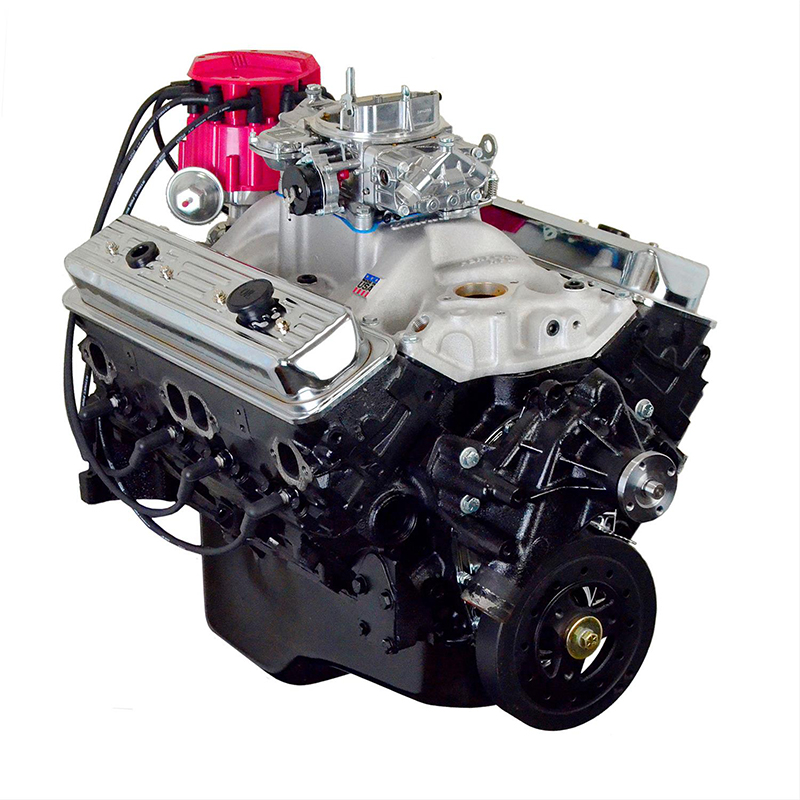

ATK Chev 350ci Vortec Complete Engine 290HP
Introducing ATK's new Econo 350ci engine. They take on of their stock replacement reman. Vortec 350ci engines and dress it out to be retrofitted for a muscle car swap. The Vortec 350 engines are known for their better flowing Vortec heads and Hyd. Roller camshaft setup. This engine will come completely assembled minus the fuel pump.
These blocks do not have a mechanical fuel pump provision and an electric fuel pump must be used.
Product Type: Complete Engine
Application: Chevrolet 350ci Vortec
Horsepower: 290HP
Torque: 375 ft/lbs.
Bore: 4.060"
Stroke: 3.480"
Block: OE 2-Bolt Main 1pc. seal roller block p/s dipstick
Main Caps: 4-Bolt
Main Cap Bolts: OE
Crankshaft: Reground OE Cast Crank 3.480" Stroke Ext. Balanced Rear/Internal Front 1pc. Pistons: Hypereutectic
Compression: 9.4:1
Connecting Rods: Reconditioned OE Powder Metal 5.700"
Connecting Rod Fasteners: Stock
Rings: Moly Rings
Rod Bearings: Yes
Main Bearings: Yes
Cam Bearings: Yes (Installed & Clocked to OEM Position)
Cylinder Heads: Reman. Cast Iron Vortec 64cc/165cc 1.94/1.50
Camshaft: Yes, Hydraulic Roller
Camshaft Specs: 191/194 @.050, .414in/.428ex, 111LS
Timing Chain: Double Roller
Rocker Arms: Yes, Stamped Steel 1.5 Ratio
Intake Manifold: Yes, Edelbrock Performer RPM #7116
Carburetor: Yes, Quick Fuel Brawler 670cfm #BR-67256
Throttle Body: Yes
Fuel Pump: No, Must Run Electric Pump
Distributor: Yes, MSD HEI
Oil Pan Included: Yes, Rear Sump 5qt. (not for Chevelle with steering behind crossmember, some Corvette's and 62-67 Chevy II's)
Valve Covers: Yes
Timing Cover: Yes
Water Pump: Yes, Cast Iron Long
Air Cleaner: No
Spark Plugs: Yes, Autolite #605
Spark Plug Wires: Yes, Taylor 8mm
Computer: No
Wiring Harness: No
Freeze Plugs: No
Balanced: Yes, Externally Balanced
Assembled: Yes
Flexplate Included: Yes, Externally Balance, 168-Tooth
Harmonic Balancer Included: Yes, Powerbond Internally Balanced
Manufacturer: ATK High Performance Engines
Manufacturer's Part Number: HP99C
Warranty: Race Application, No warranty expressed or implied.
Weight: 430.0 lbs.
Quantity: Sold as Each
|
