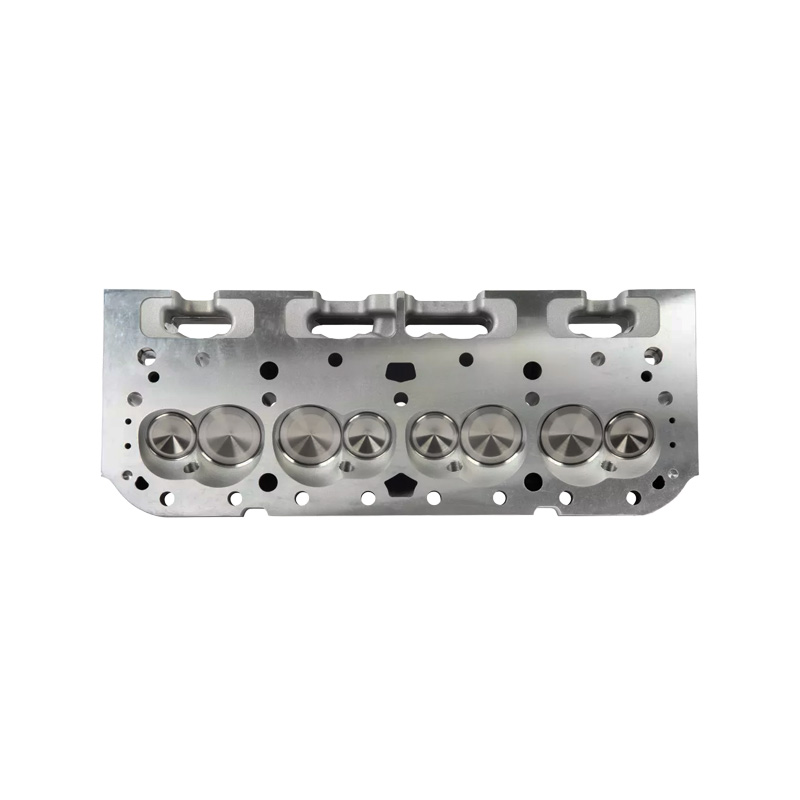

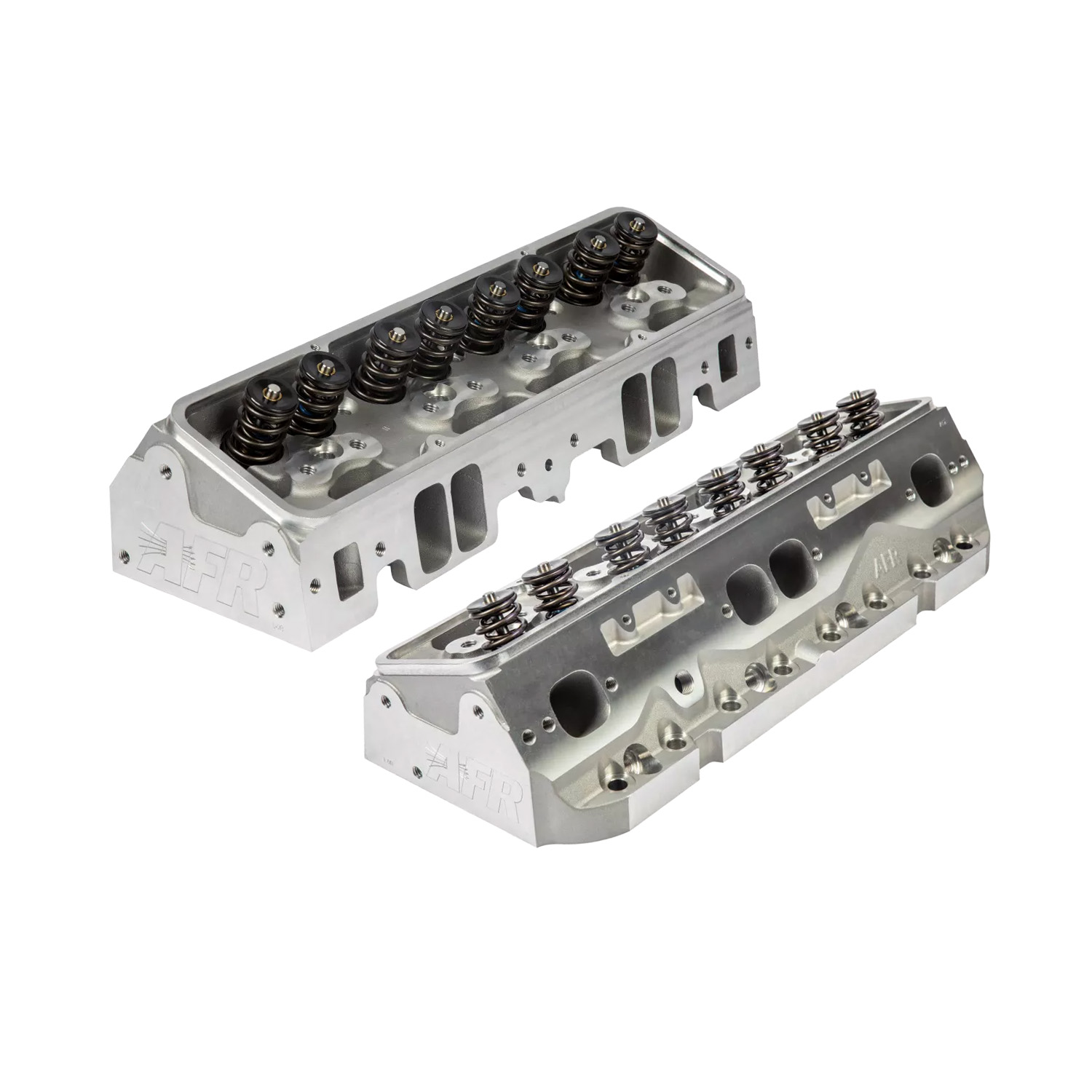

Enforcer Head
They come fully assembled with the identical componets found in our higher-end CNC ported cylinder heads; such as ARP rockers studs, racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), Hardened spring cups and our one piece 8mm 21 4N stainless steel valves.
Part Type: Cylinder Head
Material: A356 Aluminum/ International Equivalent
Spark Plug Dimensions: 14mm x 0.750" w/Gasket Seat
Intake Port Volume: 198-200c
Intake Port Dimension: 2.080" H x 1.270" x 5/16 Radius
Intake Port Location: Stock
Exhaust Port Dimension: 1.450" H x 1.550" W
Exhaust Port Volume: 74cc
Exhaust Port Location: Stock
Max Valve Spring Pocket Machining: 1.580" O.D
Valve Spring Pocket Diameter: 1.500" O.D
Combustion Chamber Size: 69cc
Valve Cover Bolt Pattern: Perimeter Bolt
Valve Angle: 23°
Minimum Bore Diameter: 4.000"
Deck Thickness: 0.470"
Flat Mill: 0.006" per cc 56cc Max.
Quantity Sold as: Individually
|
