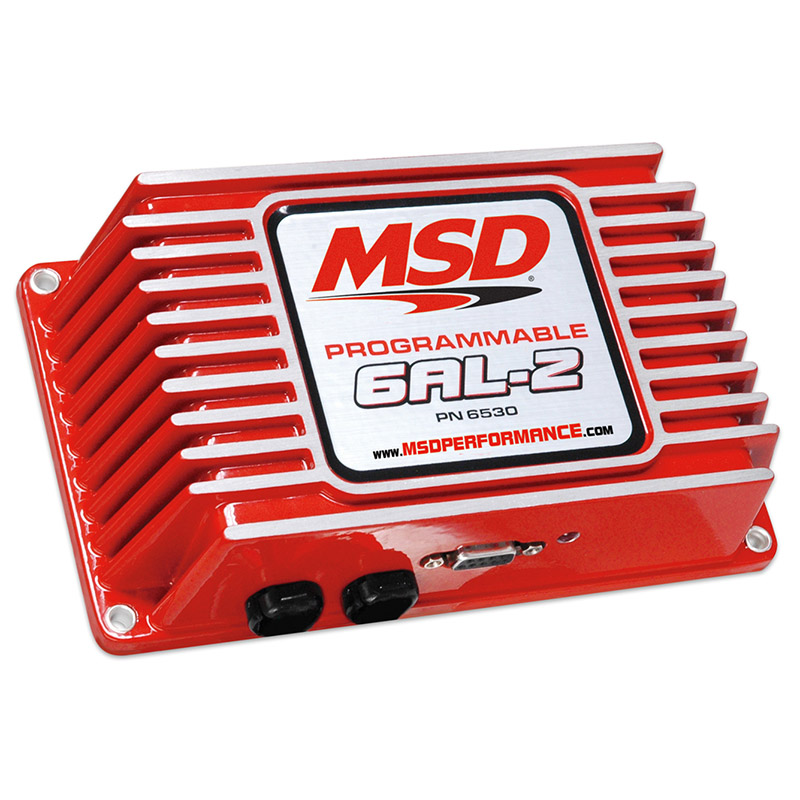

MSD Ignition Digital Programmable 6AL-2 Ignition Control

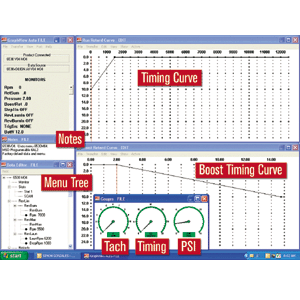

MSD is bringing their pro stock ignition technology to the street. Based on the same output as the 6AL-2, but sports a serial port that connects to a PC. Once you load MSD's Windows based software on your PC, you're ready to start mapping and programming. Advanced PC programming for use on street/strip and track cars. Plot a timing curve based on boost pressure down to a 0.1° every 100 rpm. Program three rev limits in 100 rpm increments. Step retard for nitrous applications plus a boost timing map. Capacitive Discharge technology for high voltage and spark energy. Includes Windows based Pro Data+ Software.
• Primary Output Voltage: 535
• Secondary Voltage Output: 45,000
• Spark Energy: 135 mJ
• Current Draw Per 1,000 RPM: .7 Amps
• Spark Duration: 20° Crankshaft Rotation
• Easy-to-use Pro-Data+ Software Included
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
Circuitry: Digital
PC Programmable: Yes
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes, 3
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 135 Millijoules
Voltage Primary Output (Into Coil): 460-480 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-18 Volts, Negative Ground
Operating Current Amp per RPM: 1 amp/1,000 RPM
RPM Range: 15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Red
Ignition Box Length: 8 in.
Ignition Box Width: 4 in.
Ignition Box Height: 2.25 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 6530
UPC: 085132065301
Weight: 5.1 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
|
