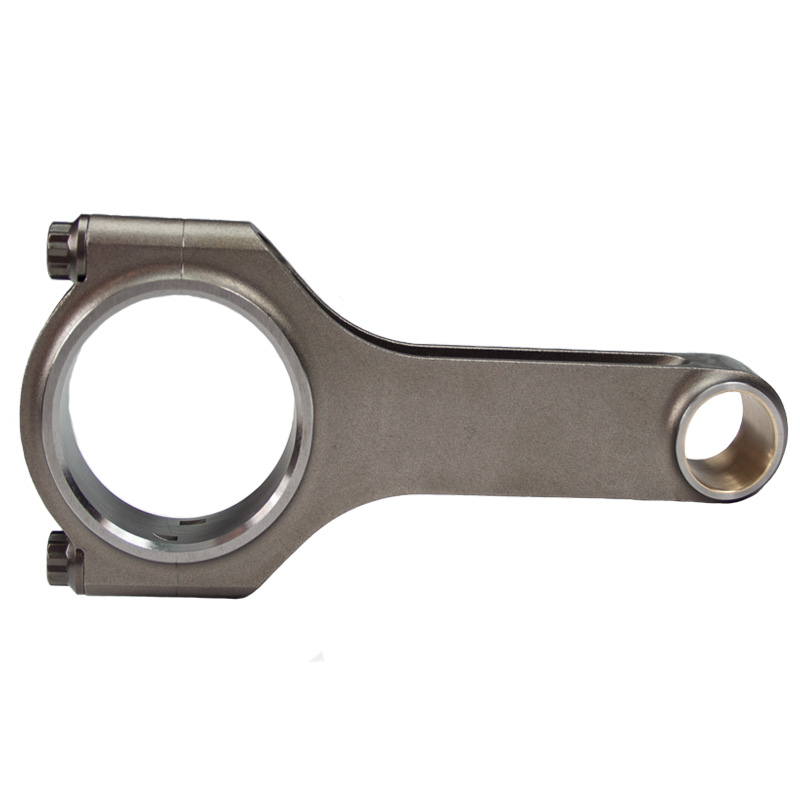

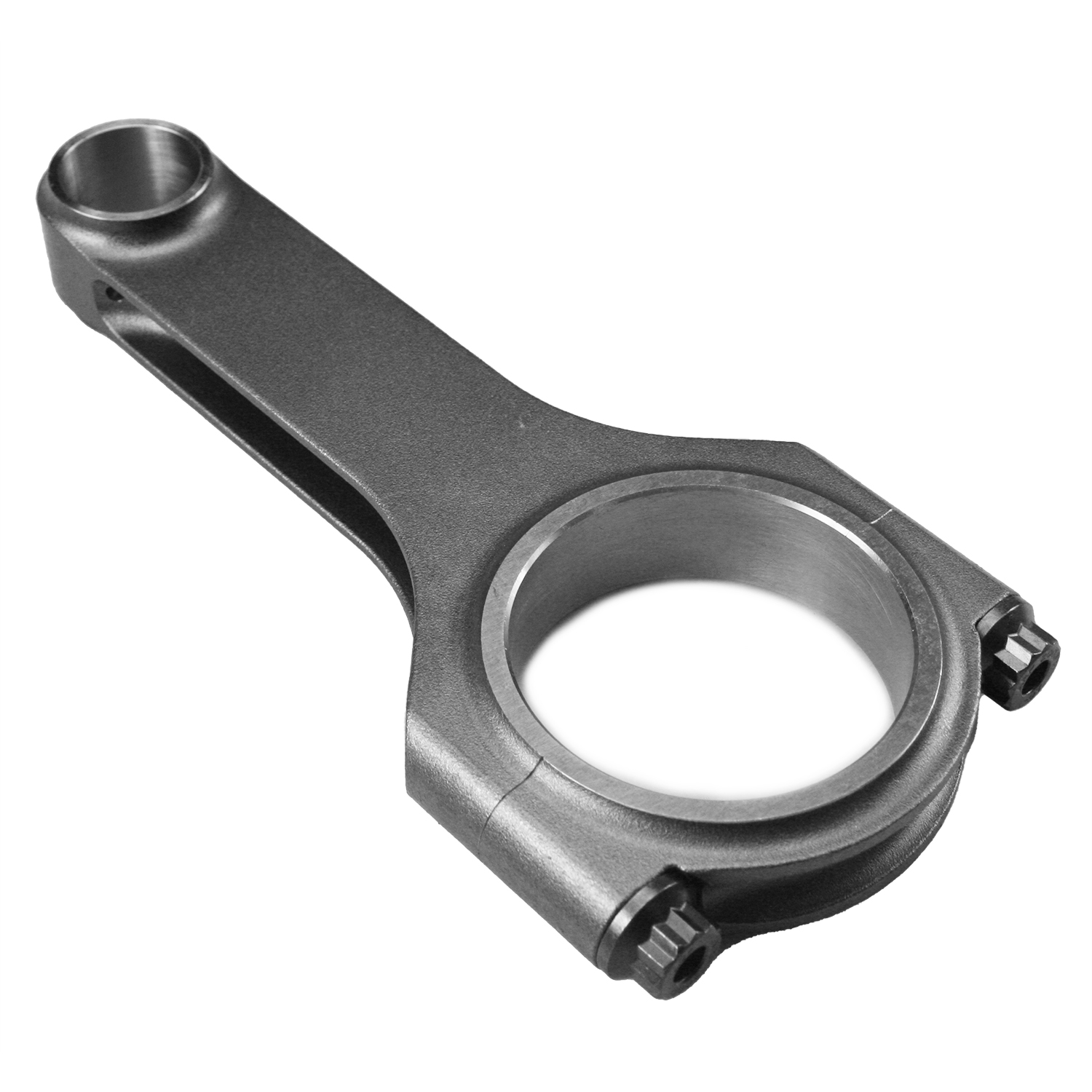

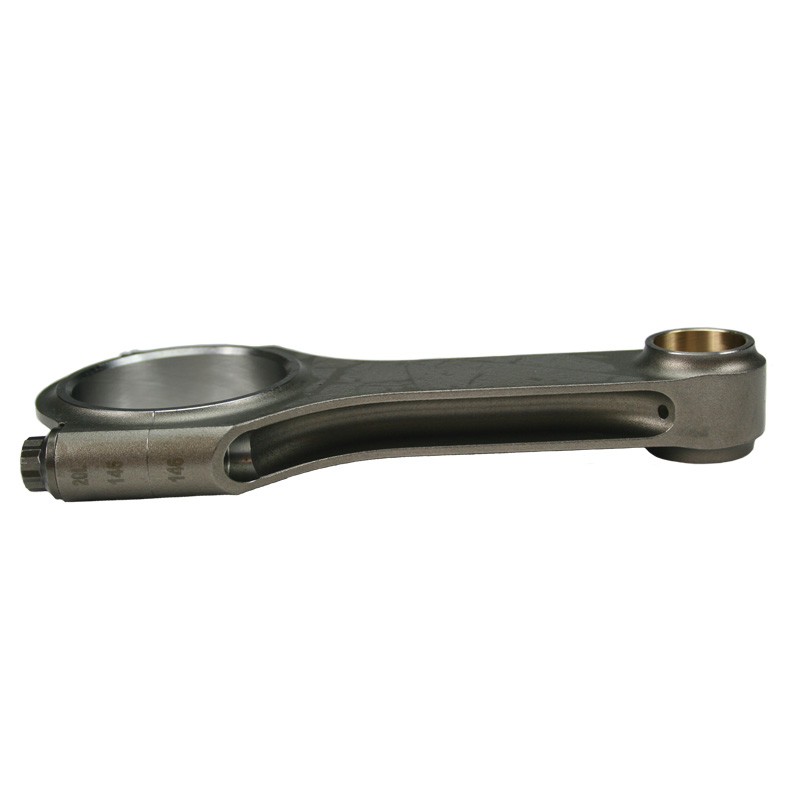

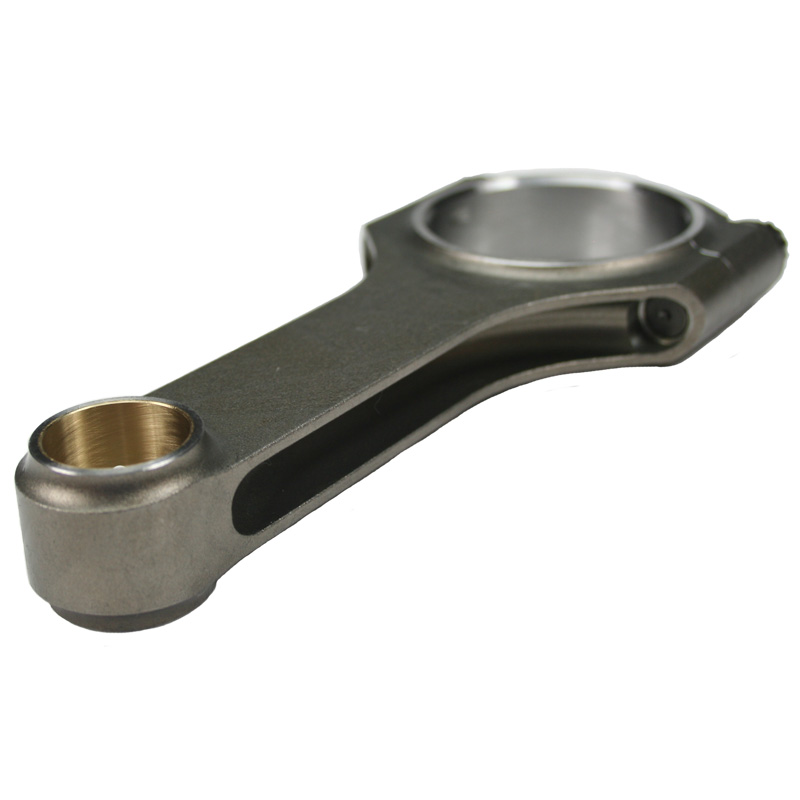

Power Products | Competition Series, 4340 Forged H-Beam Rods w/ARP 2000 7/16" Cap Screws
H-beam design for strength and reliability. Stroker clearance designed it the big end while retaining strength. Certified chromoly 4340 steel is machined on high precision CNC centers. They are then x-rayed and ultrasonically tested. Stress relieved and shot peened prior to final sizing. Precision heat treatment and ARP 2000 cap screws finish off the Competition Series Connecting Rods.

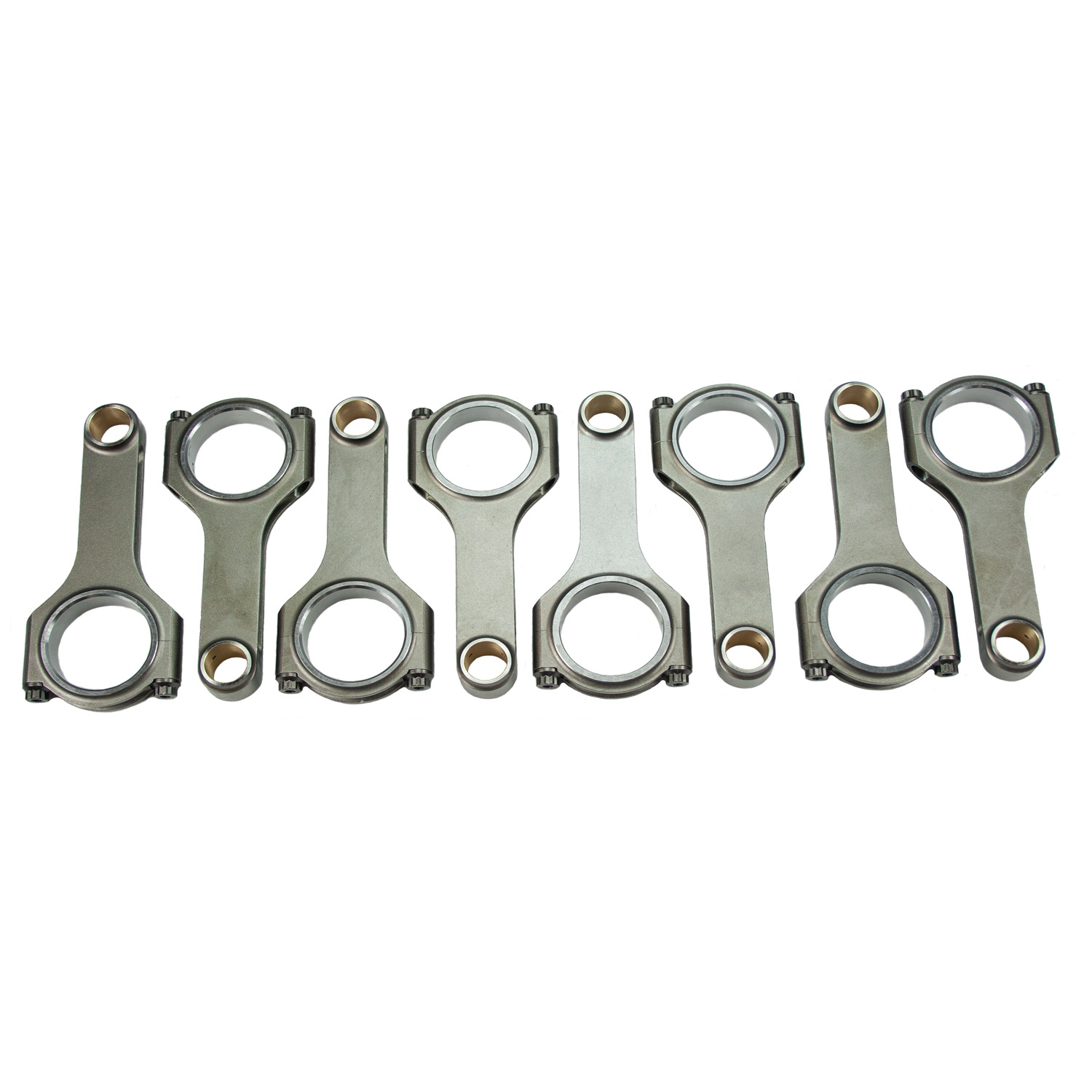

Sets of 8.
- Precision CNC Machined 4340 Chromoly Steel
- Double Rib Cap Design for Greater Bearing Support

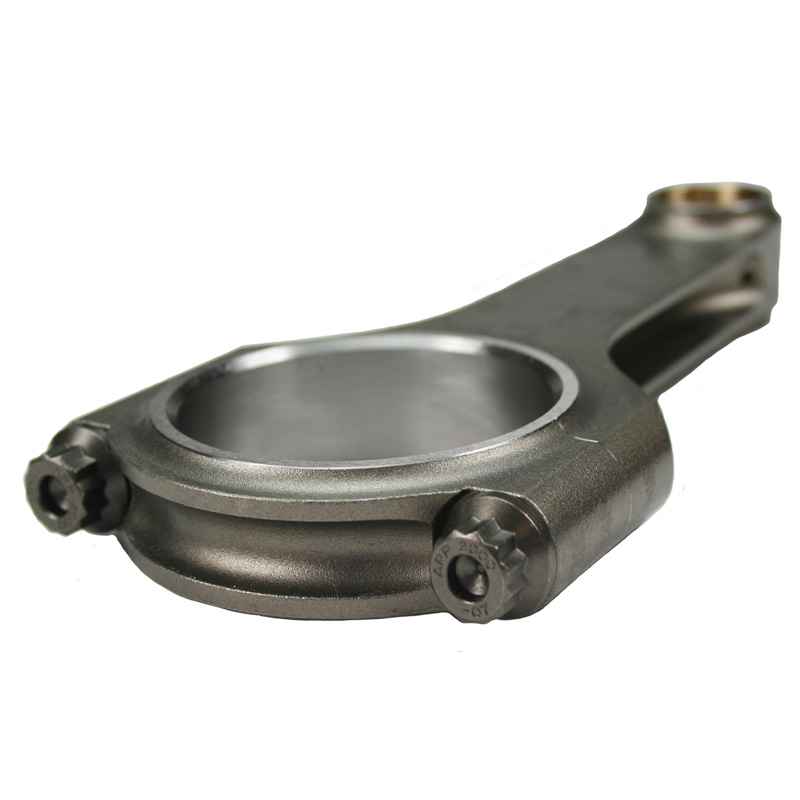

- 7/16" ARP 2000 (220,000 psi) Cap Screws
Part Type: Connecting Rods
Application: Ford 302
Connecting Rod Beam Style: H-Beam
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened
Magnafluxed: No
Connecting Rod Length Center to Center: 5.400”
Connecting Rod Journal: 2.123”
Housing Bore: 2.2394”
Pin Bore Diameter: .927”
Big End Width: .8315”
Pin End Width: 1.060”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 590g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes
Fastener Type: Cap Screw
Fasteners: 7/16" ARP 2000
Fastener Head Style: 12 Point
Fastener Yield Strength: 220,000 psi
Fastener Torque: 70 ft/lbs. with ARP moly lube ONLY!
Recommended Bearings: Clevite CEPCB634, King KEBCR804, EngineTech ENGBB214, ACL8B634A
Manufacturer: Power Products
Manufacturer's Part Number: PVT77-85400F9
UPC:
Connecting Rod Set Weight: 11.0 lbs.
Warranty: Race Application. No Warranty express or implied
Quantity: Sold in Sets of 8
|
