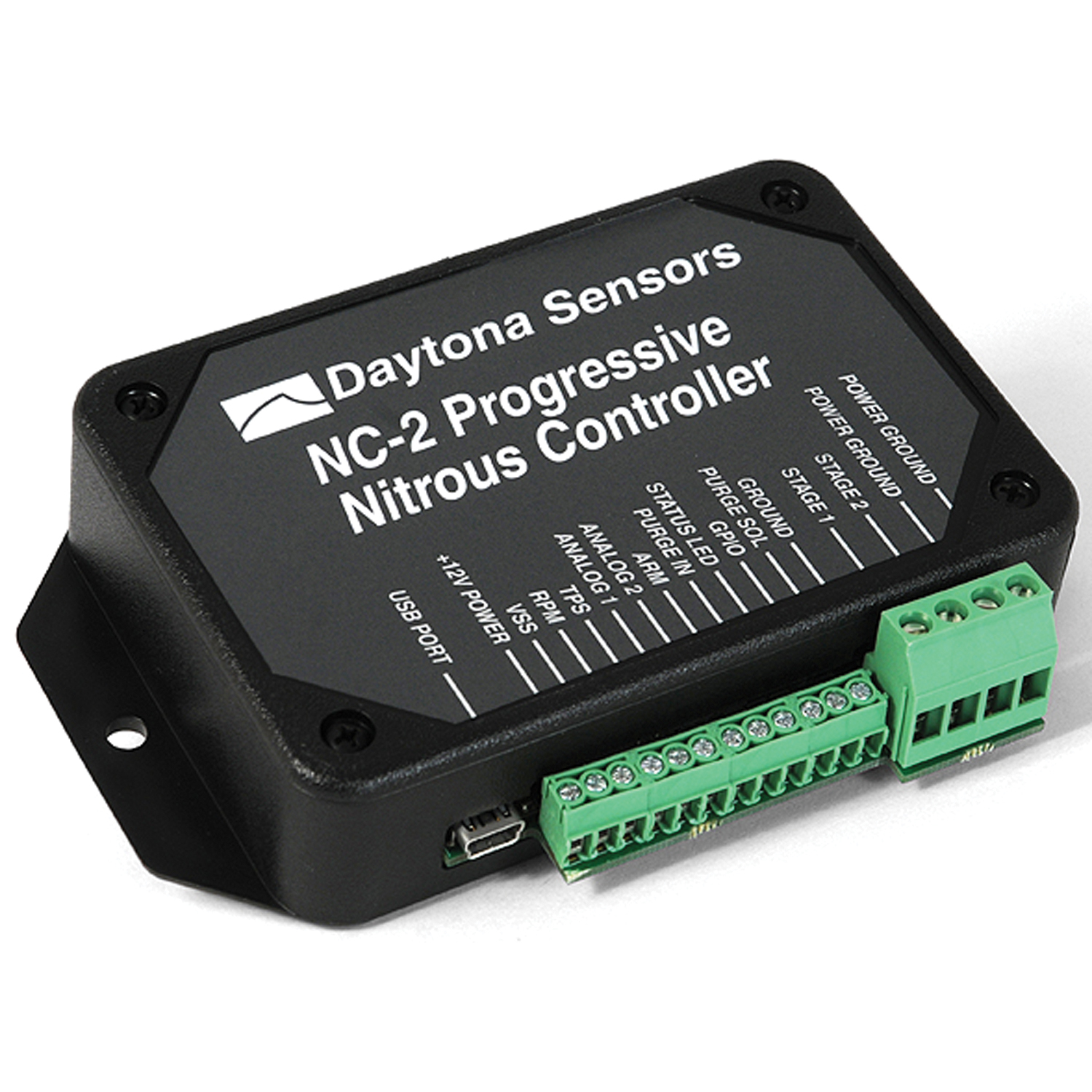

Daytona Sensors NC-2 Progressive Nitrous Controller & Vehicle Data Logger
The NC-2 progressive controller, pulse width modulates the solenoid valves and allows you to control the flow rate. The two primary applications for a progressive controller are matching nitrous system power output to vehicle requirements and independently controlling fuel and nitrous oxide flows for optimum air/fuel ratio (AFR). If you have a high horsepower nitrous system in a vehicle with limited traction, you can use time or RPM based progressive control to reduce the power output in the mid-RPM range or off the starting line to eliminate problems with wheel spin. You can also use RPM based progressive control to reduce excessive strain on the engine in the mid-RPM range.
- Drives two nitrous stages and purge solenoid.
- Each stage is independently programmable based on throttle position, RPM, vehicle speed, time delay, and first gear lockout.
- Programmable automatic purge when system is armed.
- General purpose input/output (GPIO) terminal.
- Programmable for use as shift light output, additional stage enable input, or control output for ignition retard.
- Built-in data logging. Ideal as basic vehicle data logger during dyno tuning or drag racing. Logs data whenever system is armed. Stores last 5 minutes of data at 10 samples/second.
- Flexible RPM input compatible with high voltage coil drive (vehicles with coil packs or distributor ignition), standard 12 volt tach signal, or low level logic drive (coil-on plug).
|
