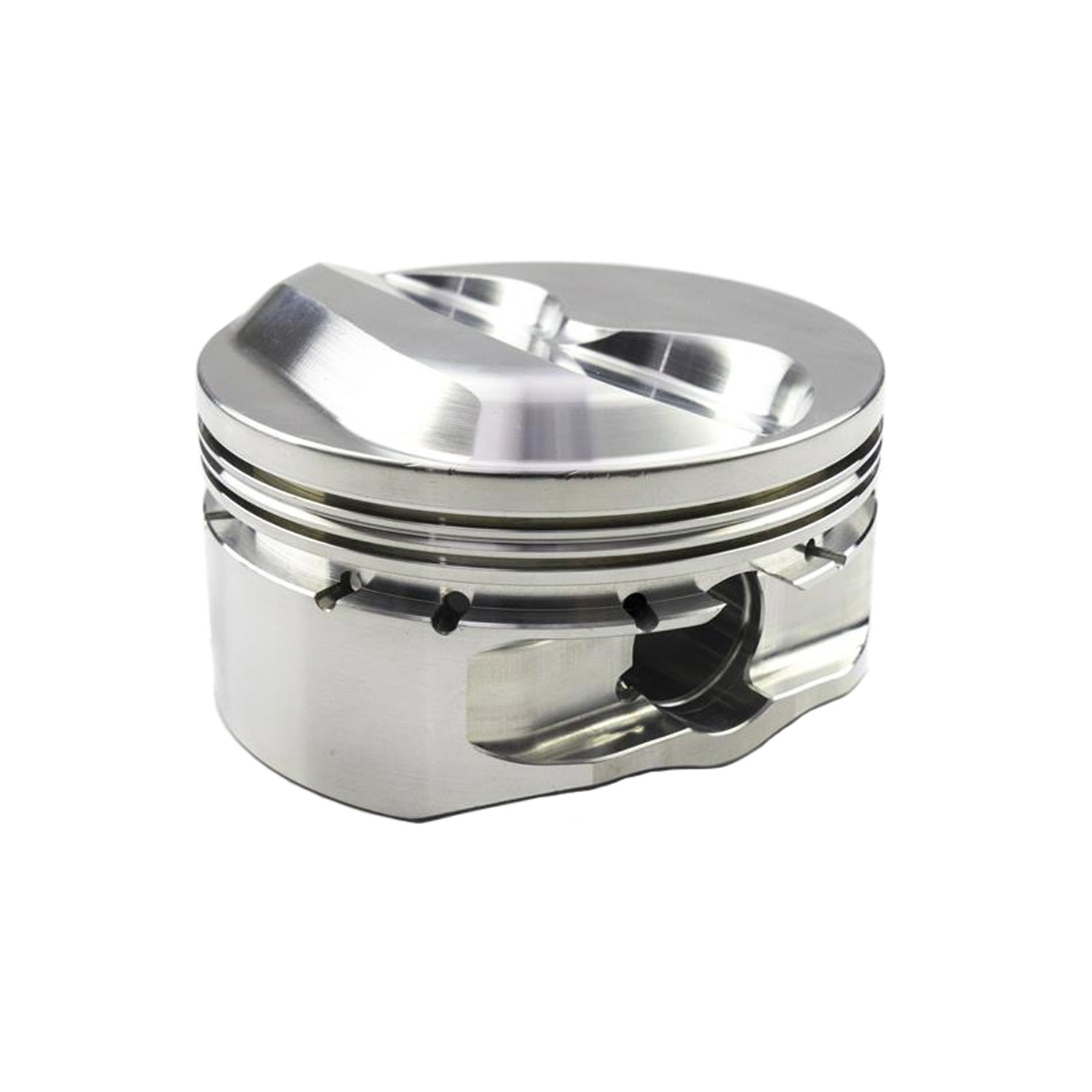

RaceTec Pistons, Forged 2618 Pistons
RaceTec™ pistons are designed and engineered by true piston experts. Experts who understand intricate and complex engine dynamics and who share your passion for performance engine applications! Their state of the art designs utilize knowledge gained from the RaceTec™ team's many years of experience in the automotive racing and piston industries. RaceTec™ utilizes multiple state of the art three, four and five axis CNC machines to manufacture industry leading designs. Set of 8.
- Made out of forget or billet 2618 aluminum alloy
- Utilizing the latest in CAD software and modern CNC machining centers
- Extremely durable and perfect for your high horsepower applications
- Designed to withstand mild nitrous kits, small turbos or superchargers
- Diamond turned ring grooves and skirts
- Valve pockets machined for oversized valves and high lift cams
- Critically machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings
- Top ring land gas distribution grooves to enhance performance and improve ring seal
- Diamond tooling used throughout production including ring grooves and skirts
- Broached double pin oilers
- Accumulator groove
- High quality wrist pins, pin fit, wire locks included at no extra charge
Part Type: Pistons
Bore (in): 4.125
Bore (mm): 104.775
Piston Style: Dome, with no valve reliefs
Stroke: 3.875"
Piston Rings Included: No
Rod Length: 6.000"
Engine Stroke Type: Stroked
Piston Material: Forged Aluminum
Actual Engine Displacement: 6.8L/414
Compression Height (in): 1.062"
Piston Head Volume (cc): -2.30cc
Wrist Pin Included: Yes
Wrist Pin Style: Press-Fit or Floating
Piston Ring Thickness: 1.50mm x 1.50mm x 3.00mm
Gapless: No
File Fit: No
Oil Ring Thickness (mm): 3.0
Top Ring Thickness (mm): 1.5
Second Ring Thickness (mm): 1.5
Remanufactured: No
Quantity Sold as: Set of 8 |
