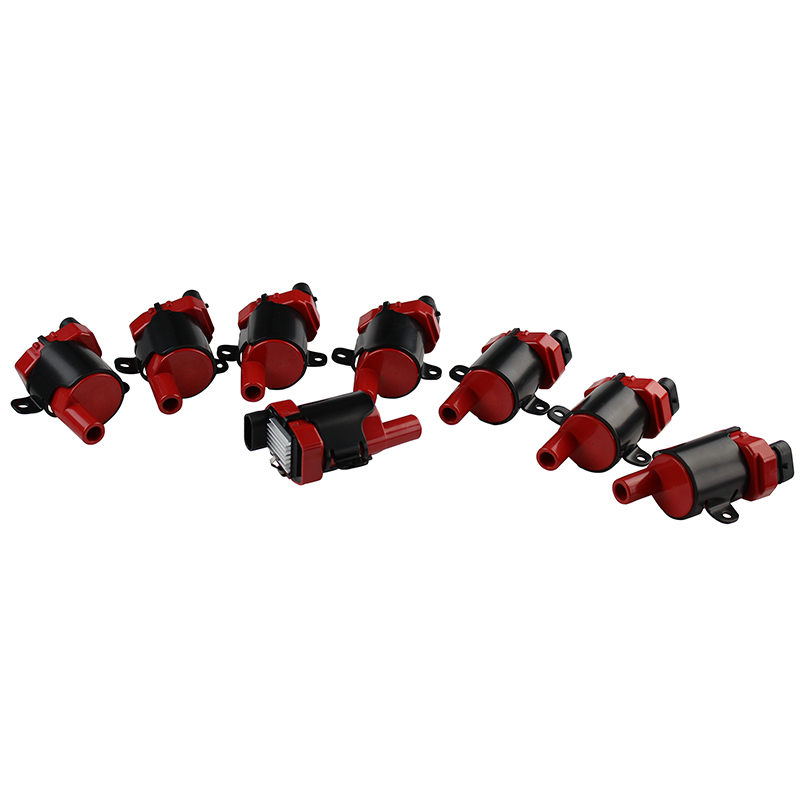

Power Products High Output Ignition Coils for GM LS Series Engines
Produces a hotter spark to burn the fuel more efficiently producing more power. They feature an optimized coil design using the latest coil technology, and improved throttle response. These coils include high temperature epoxy filled housings that resist shock and vibrations. Direct bolt-on replacement to OE mounts.
• Optimized Coil Design - Direct Bolt-On Replacements
• Improved Throttle Response
• Molded using high dielectric strength material
• Designed to work with OE or Aftermarket Ignitions
Part Type: Ignition Coil
Application: GM LS1/LS6
Coil Style: Coil-On Plug
Maximum Voltage: 40,000V
Primary Resistance: .50 ohms
Secondary Resistance: 2,000 ohms
Coil Internal Construction: Epoxy-filled
Coil Shape: Round
Turns Ratio: 75:1
Inductance: 2.7 mH
Peak Current: 220 mA
Spark Duration: 300 uS
Coil Wire Attachment: Female/Socket
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Red
Coil Length:
Coil Width:
Coil Height:
Manufacturer: Power Products
Manufacturer's Part Number: 25-1112
Weight: 6.00 lbs.
Warranty: Race Application, No Warranty Express or Implied
Quantity: Set of 8 |
