Painless Trail Rocker Overhead System for Jeep Wrangler JK 2009-2018
Your only weather resistant option for controlling up to 8 accessories on your JK Jeep. This kit mounts 6 LED switches overhead using existing mounting holes. The power center includes a bolt-on bracket to mount under the hood with 200 amps of fused protection. Easily installed with their detailed instructions and plug-n-play design. All high quality TXL output wiring is included, allowing you to avoid the inferior wire provided with some accessories.
- Control up to 8 accessories (8) 30 amp fuses and (8) 30 amp relays
- Weather resistant housing around the power center and connections
- Custom bolt-on powder coated bracket for the power center and switch panel
- Switch panel mounts 6 weatherproof LED switches in an overhead location.
Jeep JK without Auto Dimming:
- Sport
- Willys Wheeler
- Winch ready! The Trail Rocker system includes dedicated wires for controlling a winch. Purchase of winch control add-on kit is required for operation.
- The heard of the Trail Rocker is the fuse & relay center. Here you will find (8) 30 amp fuses and (8) 30 amp relays. While the switch panel only comes with six total switches, they provide you with the two extra circuits for doubling up on dual high amp systems. Say for example, (2) 20 amp lights powered off of two relays but only one switch.
- The top of the weatherproof fuse & relay center features the stylish logo silkscreened onto it. Along with the fused power source mounted next to it.
- The 200 amp MIDI fuse comes pre-installed and prewired. There's no worrying about how to crimp that 6 gauge power cable.
The underside of the fuse & relay cover has a built-in gasket to help keep any moisture out and to act as an extra support for the relays. This extra support on the relays ensures that no matter how good or bad you are on the trails, the relays will not pop out of place.
- Attention to detail shows in the bolt with O-ring combo to hold the top cover on.
- Underneath the fuse & relay center, you will find the powder coated custom mounting bracket with stainless hardware. This bracket is designed to install in existing mounting holes under the hood.
- The switches are vibration, shock, thermoshock, moisture, and salt spray resistant.
- The back side of the switch panel comes pre-terminated and ready to plug into the fuse & relay center. They also pre-route the two extra output wires to the panel. This allows you to either piggy back extra components off of a switch, or to replace the on/off switches with more on/off/on options.
- The harness attaches the fuse & relay center to the switch panel. It's a plug-n-play design that only requires you to route it and plug it in.
- Exiting the fuse & relay center is 21ft. of wire to reach any 12 volt accessory you have.
- Printed every 12" on the wire, you'll find the circuit description, a signature of Painless.

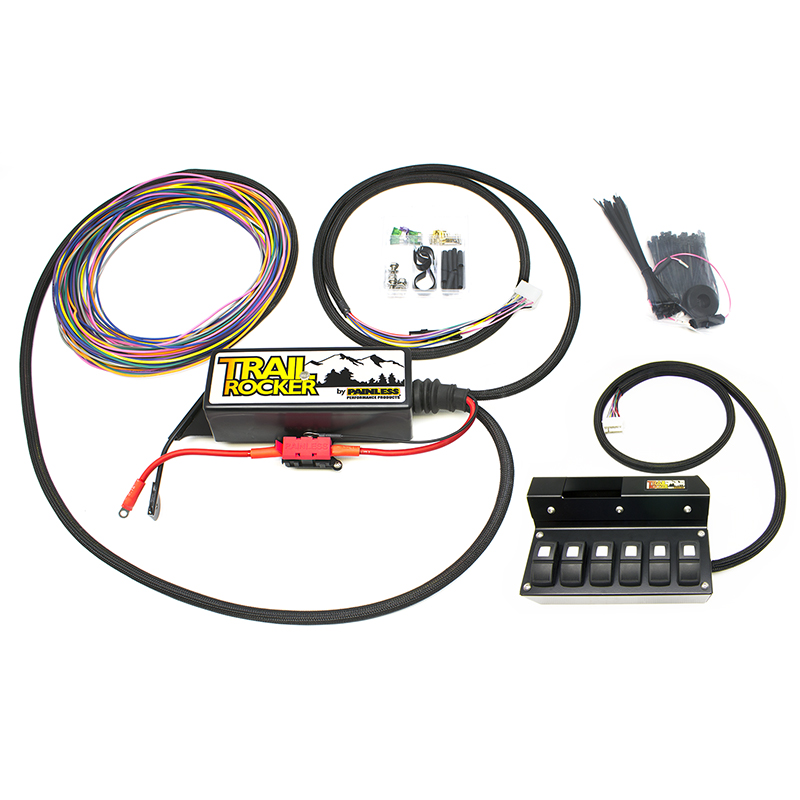

- This parts kit comes with everything you'll need to install the Trail Rocker, except the tools and the Jeep. You'll also find a custom pigtail that allows the Trail Rocker to power up only when the key is turned on. The system is shipped to be powered at all times
- You'll also find a winch pigtail that is prewired into the kit. This pigtail is ready to wire up to your winch (not included). The other end is ran up to the switch panel.
- Nearly 50 pages full color manual is also included.
- The switch panel mounts overhead giving you an accessible and rugged install. |
