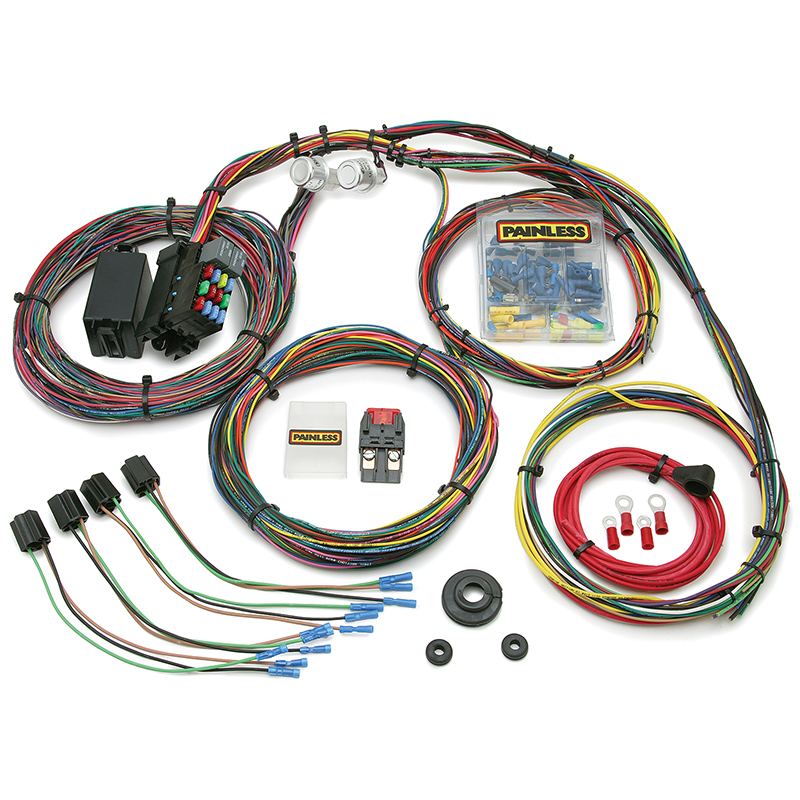

Painless Classic Customizable Chassis Harness
This 21 circuit customizable chassis harness is designed for the Mopar enthusiast who wants to maintain the "Mopar Color Code" throughout their classic Chrysler, Dodge, and Plymouth vehicles, yet update their wiring system with blade-style fuses and their unique covered micro-fuse block that is extra compact for easy mounting. Each wire is custom printed with the circuit identification as well as featuring an auxiliary circuit with a 20 amp relay pre-wired into the harness for accessories such as fog lights or an electric fuel pump. Each wire is printed with the circuit identification, as well as using Mopar color codes for easy installation.
This harness does not include that troublesome bulkhead connector that most Mopar vehicles came with throughout the 1960s and 1970s. The circuit that is known for burning up was the Ammeter circuit going through the firewall bulkhead. So, to solve this problem, Painless does not support the Ammeter on these vehicles and they provide you with a 3.5" by 3.5" black powder coated plate to cover up the original bulkhead hole in the firewall.
Includes circuits for:
- AC & Heat
- Accessory (Relay)
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Third Brake Light
- Turn Signals
- Wipers
Including Wires For:
- Fuel Gauge
- Fuel Indicator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter |
