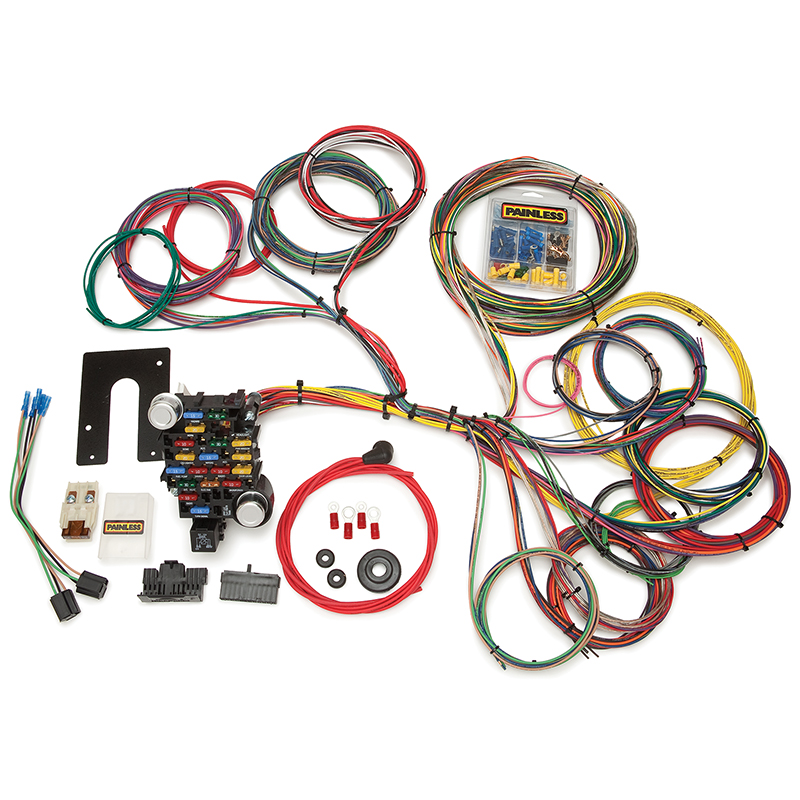

Painless Classic Plus Customizable Chassis Harness
This Painless 28 circuit kit will provide you with all those power accessory circuits you have been looking to add to your pickup chassis. You'll find that the ample wire lengths make this kit especially suited for trucks with long beds and extended cabs. This wiring harness has open ended ignition switch wiring that is easily adapted to any ignition switch. Included with this harness are the following parts: a GM engineered fuse block & Painless mounting bracket, GM turn signal connectors, pre-wire plugs for the headlights & dimmer switch, and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Connections Included: GM steering column turn switch, two headlight pigtails, 10SI & 12SI alternator, dimmer switch.
Includes circuits for:
- AC & Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
Including Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter |
