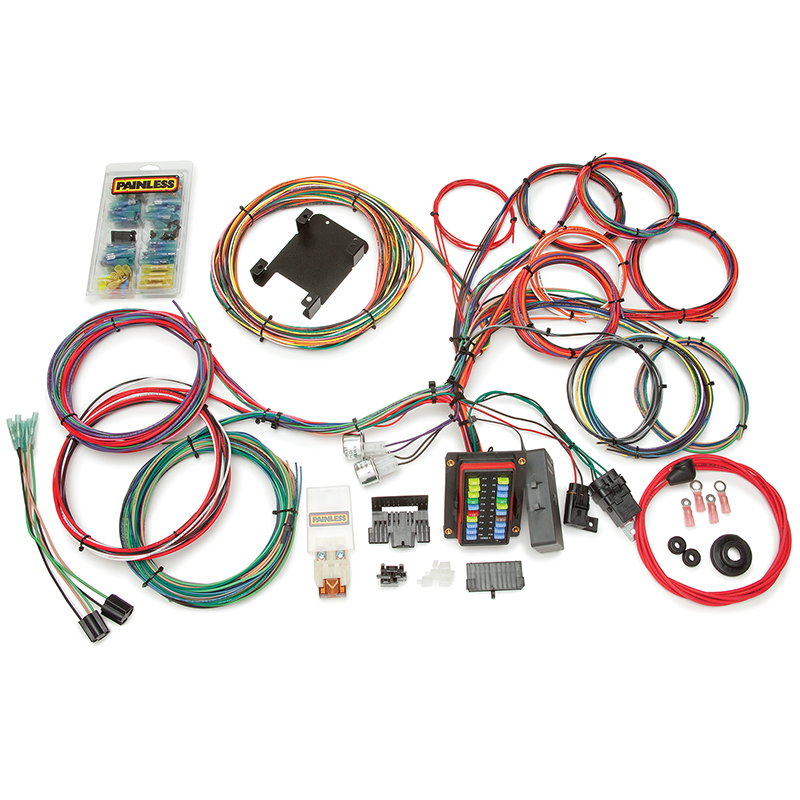

Painless Classic Customizable Chassis Harness
The 26 circuit Painless weatherproof harness can be used to update the wiring in just about any off-road vehicle. This tough kit features a weatherproof fuse block with an O-ring sealed cover, weatherproof heat sealed crimp-on terminals, weatherproof horn relay and machined crimped splices with weatherproof shrink tubing. This wiring harness is adaptable to many of the original connector plugs in your vehicle and includes pre-wired plugs for the headlights, GM turn signal, and column mounted ignition switch connectors.
Connections Included: GM column mounted ignition and turn switches, dimmer switch and two headlight pigtails.
Includes circuits for:
- AC & Heat
- Accessory #1 Switched B+
- Accessory #2 Switched B+
- Accessory #3 Switched B+
- Accessory #4 B+
- Accessory #5 B+
- Accessory #6 Switched B+
- Accessory / Cigarette Lighter
- Brake Lights
- Cargo Lamp
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
Including Wires For:
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter |
