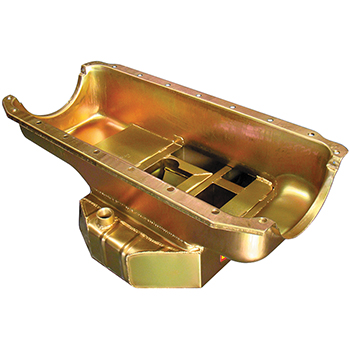

Milodon Road Race & Pro Touring Oil Pan
Pro Touring and Road Racing. They both need a good oil supply during right and left turns, and maximum ground clearance. Full competition baffling is capable of handling full road course use or just heavy street use. High strength magnetic drain plug included.
For really low A, B, and E bodies. Works on 1967 to 1973 cars with later 1973 to 1976 A body K-member. Allows 4.125" stroke.
Part Type: Oil Pan
Application: Chrysler 318/340
Oil Pan Style: Street/Strip/Road Race
Oil Pan Capacity: 6 Quarts
Oil Pan Depth: 7.000"
Oil Pan Sump Depth: 7.000"
Sump Location: Center
Sump Style: Wet
Kicked Out Sump: No
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with Steel Rod: 4.125"
Dipstick Provision: No
Dipstick Location: NA
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: No
Crank Scraper Included: No
Windage Tray Included: Yes
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M72HV Style Pump: MIL18343
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes, Magnetic
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Gold Iridited
Manufacturer: Milodon
Manufacturer's Part Number: 31590
UPC: 806621315901
Weight: 10.00 lbs.
Warranty: All products sold by Milodon Inc. are warranted to be free from defects in workmanship and materials for a period of 120 days from the date of purchase. Milodon will repair or replace, at its option, any part that has been determined by Milodon to have failed due to defective workmanship or materials. The warranty does not cover failure of a product due to improper installation or maintenance, misuse, abuse, or unauthorized applications, removal or replacement, oil, shipping costs, damage to related components, costs incurred due to downtime of vehicle or towing, normal wear and tear, or products used for racing.
Quantity: Sold as Each |
