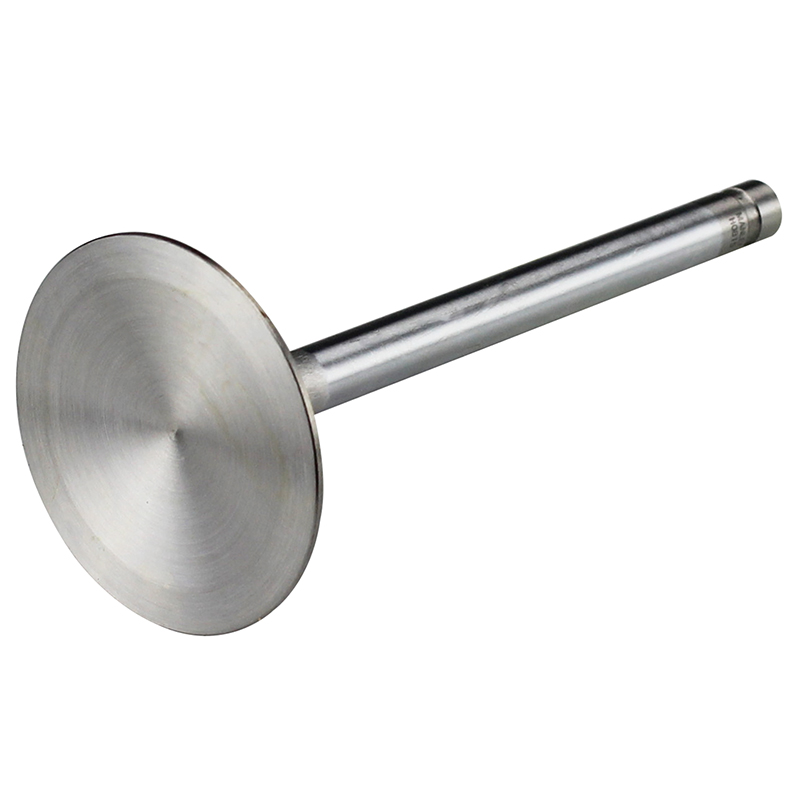

Manley Severe Duty Valve, Chevrolet BB, 3/8", 2.190" Intake, Standard Length, Each |
| Item Number: MAN11520-1 |
|
|
Manley Severe Duty Intake Valves
Manley's signature in the performance and industry. The NK-844stainless Intake material is offered by no competitor in the world. At 1000 degrees F the Manley NK-844 displys more than four times the ultimate tensile of the competitors best valve.
Severe Duty NK-844 Stainless Intake Material
Chrome Stems Hard Tips
Fully Machined Swirl Polished
Part Type: Intake Valves
Style: Manley Severe Duty Valves
Application: Chevrolet Big Block V8
Head Diameter: 2.190"
Stem Diameter: 3/8" (.3720")
Installed Height: Standard
Overall Length: 5.218"
Material: NK-844 Stainless Intake Material
1-Piece Design: Yes
Hard Chrome Stems: Yes
Undercut Stem: No
Black Nitrided: No
Swirl Polished: Yes
Lock Groove Type: Conventional
Lock Groove Quantity: Single
Tip Length: .220"
Under Head Angle: 10 Degrees
Under Head Radius: .375"
Margin: .050"
Seat Width: .080"
Top of Head: 7 Degree Dish
Weight: 145 grams
Manufacturer: Manley Performance
Manufacturer's Part Number: 11520-1
Weight: 0.35 lbs.
Warranty: Race Application, No warranty expressed or implied.
Quantity: Sold as Each |
|
