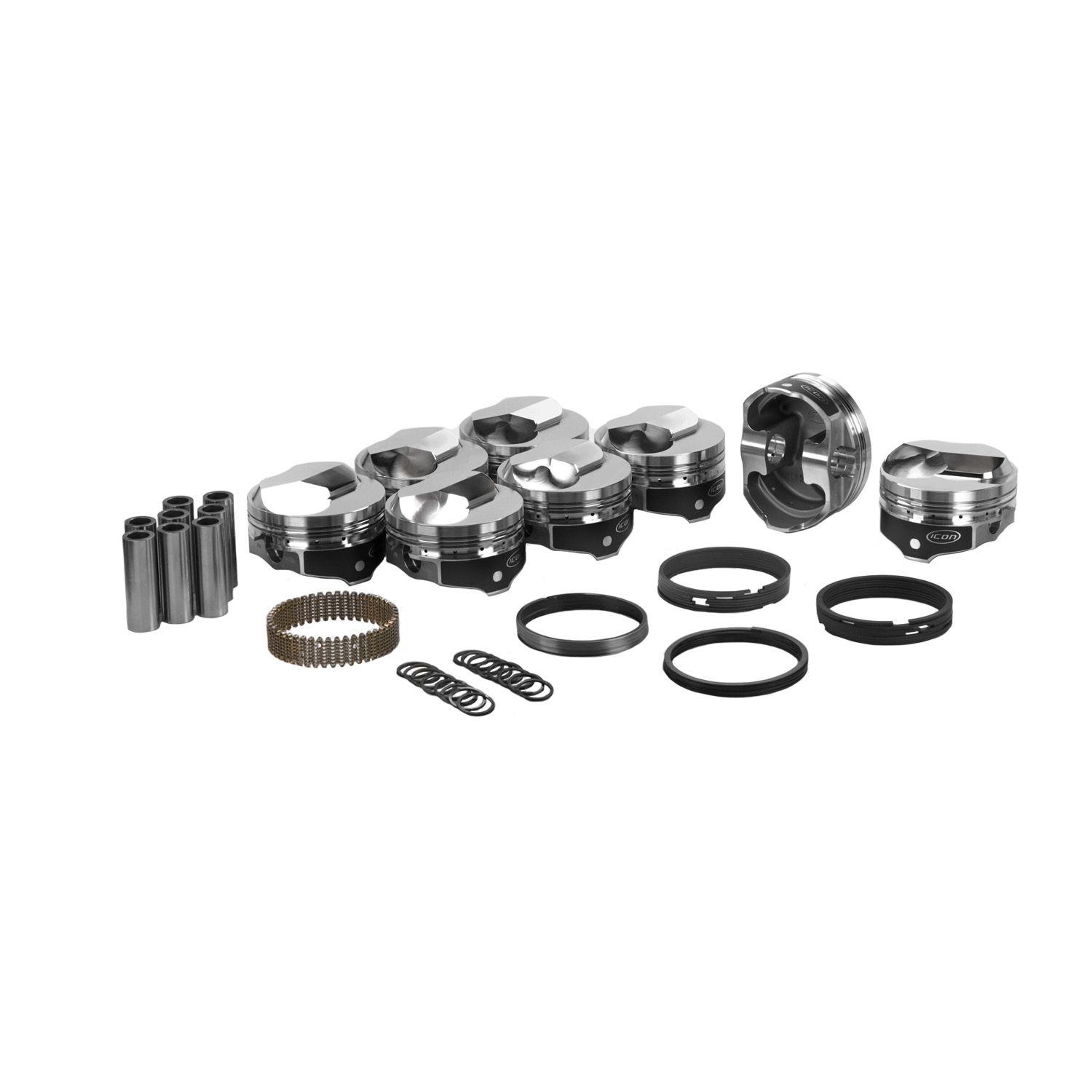

Icon Forged Pistons & Ring Set
Machined and crafted featuring a variety of superior design elements, technical engineering differences, and specialty manufacturing processes. Piston crowns are polished and the quench area maintained to maximize combustion efficiency for a more complete and cleaner burn. Valve-to-piston clearances developed in concert with major engine builders for maximum compression and performance. Line2Line skirt coating is applied for wear protection. Pin fitted from the factory featuring precision pinhole diameter and finish for maximum pin oiling at higher rpm's. 1/16" , 1/16", 3/16" ring grooves (except as noted). Piston & Ring Sets also include premium ductile iron moly rings. Sets of 8.
Part Type: Pistons
UPC: 800745231963
Piston Rings Included: Yes
Bore (mm): 114.300
Bore (in): 4.500"
Stroke: 4.250"
Rod Length: 6.385"
Piston Style: Dome, with single valve relief
Wrist Pin Style: Press-fit or floating
Piston Head Volume (cc): -38.00
Compression Height (in): 1.270"
Dome Height (in): 0.425"
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in): 0.990"
File Fit: No
Gapless: No
Piston Ring Thickness: 1/16 x 1/16 x 3/16"
Top Ring Thickness: 1/16"
Second Ring Thickness: 1/16"
Oil Ring Thickness: 3/16"
Notes: Pistons are made of forged 2618 alloy aluminum.
Remanufactured: No
Quantity Sold as: Set of 8. |
