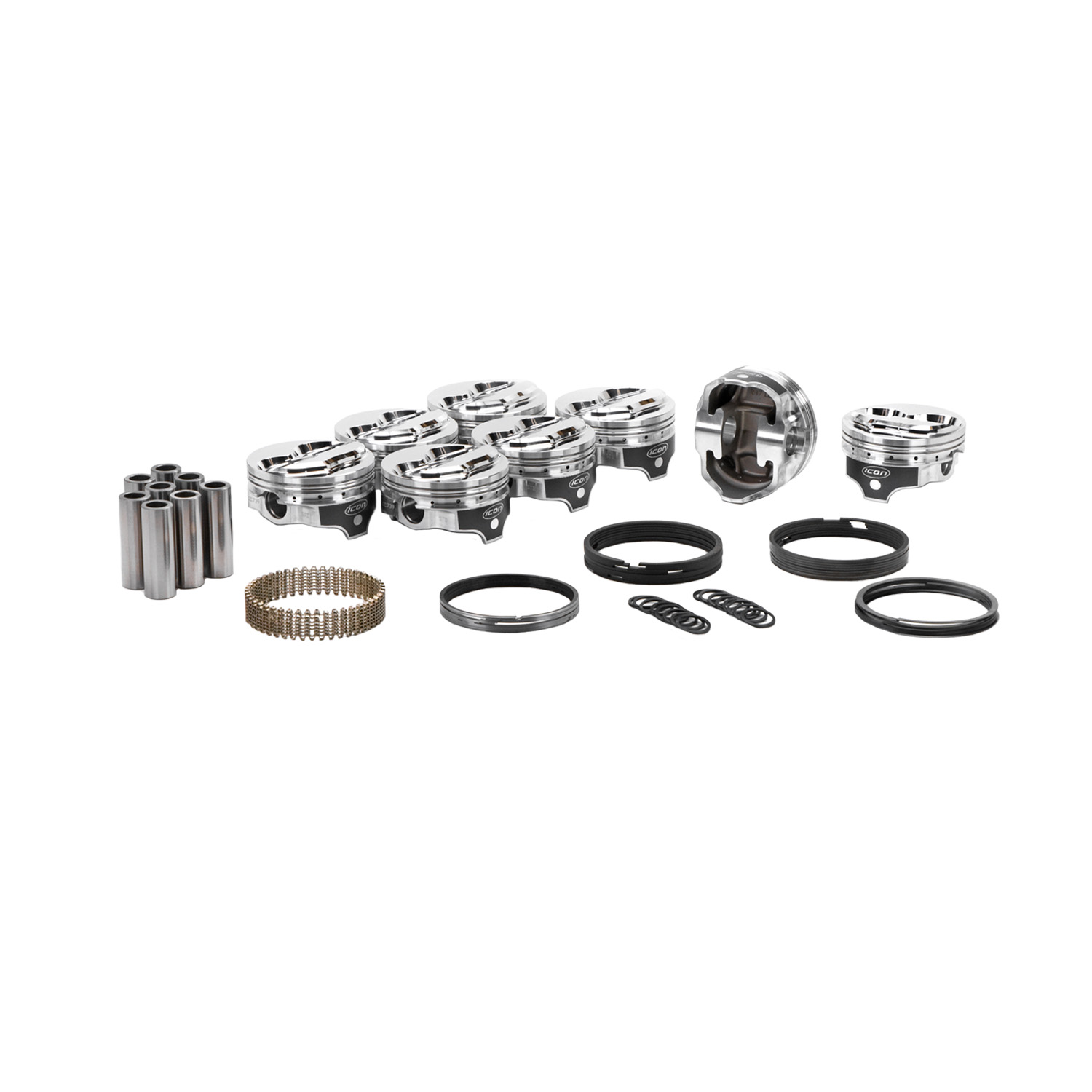

Icon Forged Pistons & Ring Set
Machined and crafted featuring a variety of superior design elements, technical engineering differences, and specialty manufacturing processes. Piston crowns are polished and the quench area maintained to maximize combustion efficiency for a more complete and cleaner burn. Valve-to-piston clearances developed in concert with major engine builders for maximum compression and performance. Line2Line skirt coating is applied for wear protection. Pin fitted from the factory featuring precision pinhole diameter and finish for maximum pin oiling at higher rpm's. 1/16" , 1/16", 3/16" ring grooves (except as noted). Piston & Ring Sets also include premium ductile iron moly rings. Sets of 8.
Part Type: Pistons
UPC: 800745172426
Piston Rings Included: Yes
Bore (mm): 103.124
Bore (in): 4.060"
Rod Length: 5.400"
Stroke: 3.400"
Piston Material: Forged Aluminum
Piston Style: Dome, with two valve reliefs
Wrist Pin Retainers Included: Yes
Wrist Pin Style: Press-fit or floating
Piston Head Volume (cc): -7.70
Compression Height (in): 1.090"
Dome Height (in): 0.150"
Wrist Pin Included: Yes
File Fit: Yes
Gapless: No
Pin Diameter (in): 0.927"
Piston Ring Thickness: 1/16 x 1/16 x 3/16
Oil Ring Thickness: 3/16
Oil Ring Material: Stainless Steel
Oil Ring Tension: Standard
Top Ring Thickness: 1/16
Top Ring Facing Material: Plasma-moly
Top Ring Material: Ductile Iron
Second Ring Thickness: 1/16
Second Ring Facing Material: Cast Iron
Second Ring Material: Iron
Remanufactured: No
Note: Spacer ring included. Solid dome design.
Quantity Sold as: Set of 8 |
