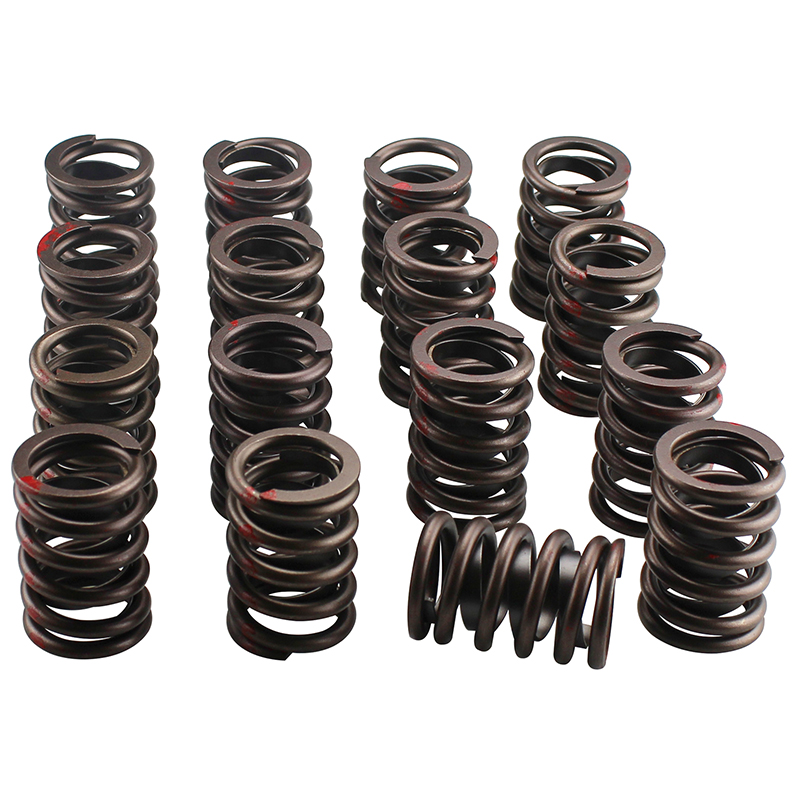

Howards Cams Performance Hydraulic Flat Tappet Valve Springs
Howards Cams research and development engineers are constantly updating materials and manufacturing techniques to provide the best possible valve springs. Coiled and heat-treated in the finest facilities available. Each spring is coiled, stress relieved, deburred, shot-peened and heat treated to Howards Cams own very specific standards. Sets of 16.
Part Type: Valve Springs
Style Howards Cams Performance Valve Springs
Type: Single with Damper
Damper Included: Yes
Outer Spring Out Side Diameter (O.D.): 1.510"
Outer Spring In Side Diameter (I.D.): 1.110"
Inner Spring Out Side Diameter (O.D.): NA
Inner Spring In Side Diameter (I.D.): NA
Seat Pressure: 100 @ 1.880"
Open Pressure: 275 @ 1.380"
Valve Spring Rate: 360
Maximum Suggested Lift: .520"
Coil Bind: 1.300"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 97110, 97128
Suggested Titanium Retainers: 97216
Suggested Seat Cups: 96015
Suggested Locators: 96033
Manufacturer: Howards Cams
Manufacturer's Part Number: 98515
Packaged Weight: 3.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 16 |
