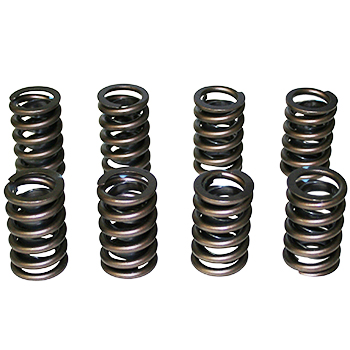

Elgin Performance Valve Springs
Elgin valve springs are made from the highest quality springs wire and precision wound to exact specifications. They are designed and engineered to provide high performance results. All springs have dampers or damper coils to eliminate valve spring surge.
Note: Set of 8 (2 sets required per 8 cylinder)
Part Type: Elgin Valve Springs
Style: Performance Valve Springs
Type: Single with Damper
Damper Included: Yes
Outer Spring Out Side Diameter (O.D.): 1.260"
Outer Spring In Side Diameter (I.D.): .876"
Inner Spring Out Side Diameter (O.D.): NA
Inner Spring In Side Diameter (I.D.): NA
Seat Pressure: 118 @ 1.700"
Open Pressure: 318 @ 1.210"
Valve Spring Rate: 357
Maximum Suggested Lift: .490"
Coil Bind: 1.160"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 3250, 3810
Suggested Titanium Retainers: 3350
Suggested Seat Cups: NA
Suggested Locators: NA
Manufacturer: Elgin Industries
Manufacturer's Part Number: RLGRV-943XK
Packaged Weight: 3.0 lbs.
Warranty: Limited Lifetime Warranty applies to first retail purchaser.
Quantity: Set of 8 (2 sets required per 8 cylinder) |
