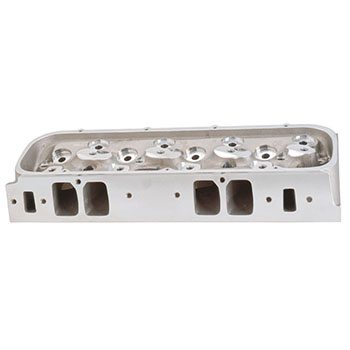

Brodix Race Rite Aluminum Chev BB Head
These heads bolt directly in place of stock cast iron heads allowing reuse of the intake manifold and pistons. Exhaust ports are in the stock location eliminating header or manifold interference. The Race Rite 294cc rectangular port is the answer for less hassle during installation.
Part Type: Cylinder Head
Application: Chevrolet Big Block
Cylinder Head Material: Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 119cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 26
Exhaust Valve Angle: 26
Intake Port Volume: 294cc
CNC Machined Intake Port: No
Intake Port Flow: 342 cfm @ .700" Lift/ 28"
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets: Fel-Pro 1211 or Equivalent
Exhaust Port Volume:
CNC Machined Exhaust Port: No
Exhaust Port Flow: 236 cfm @ .700" Lift/ 28"
Exhaust Port Location: Standard
Exhaust Port Shape: D-Shape
Exhaust Port Dimensions:
Suggested Exhaust Gaskets: Fel-Pro 1411 or Equivalent
Spark Plug Style:
Suggested Spark Plug: 14mm x 3/4" reach
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32" (.3415")
Valve Seats: Yes (Ductile Iron)
Valve Job: 3-Angle
Intake Valve Diameter: 2.250"
Intake Valve Included: No
Exhaust Valve Diameter: 1.880"
Exhaust Valve Included: No
Suggested Valve Length:
Valve Spring Pockets: May be cut to 1.625" MAX.
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Perimeter bolt
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts: ARP 135-3601
Suggested Head Studs: ARP 135-4001
Suggested Stud Girdle:
Head Bolt Torque with Oil: 70 ft./lbs.
Rocker Stud Torque with Oil: 45 ft./lbs.
Intake Bolt Torque with Oil:
Manufacturer: Brodix Cylinder Heads
Manufacturer's Part Number: RR BB-R
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each |
