Comp Cams Valve Springs

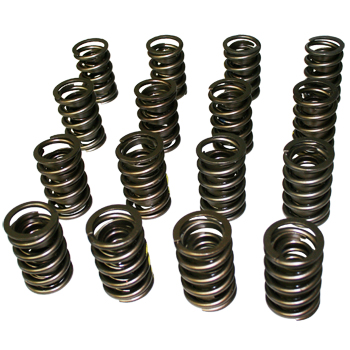

Precision designed and tested. Superior chrome silicone material. Each spring is coiled, stressed relieved, ground, deburred, shot-peened, and heat-set under very exact requirements. Consistent batch to batch. Sets of 16.
Part Type: Comp Cams Valve Springs
Style: Performance Springs
Type: Dual with Damper
Damper Included: Yes
Outer Spring Out Side Diameter (O.D.): 1.509"
Outer Spring In Side Diameter (I.D.): .697"
Inner Spring Out Side Diameter (O.D.): NA
Inner Spring In Side Diameter (I.D.): NA
Seat Pressure: 112 @ 1.900"
Open Pressure: 355 @ 1.200"
Valve Spring Rate: 347
Maximum Suggested Lift: .665"
Coil Bind: 1.175"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 3088, 3800
Suggested Titanium Retainers: 3400
Suggested Seat Cups: NA
Suggested Locators: NA
Manufacturer: Comp Cams
Manufacturer's Part Number: 924-16
Packaged Weight: 3.0 lbs.
Warranty: 1 year limited warranty from the date of purchase by the original purchaser.
Quantity: Sold in Sets of 16
|
