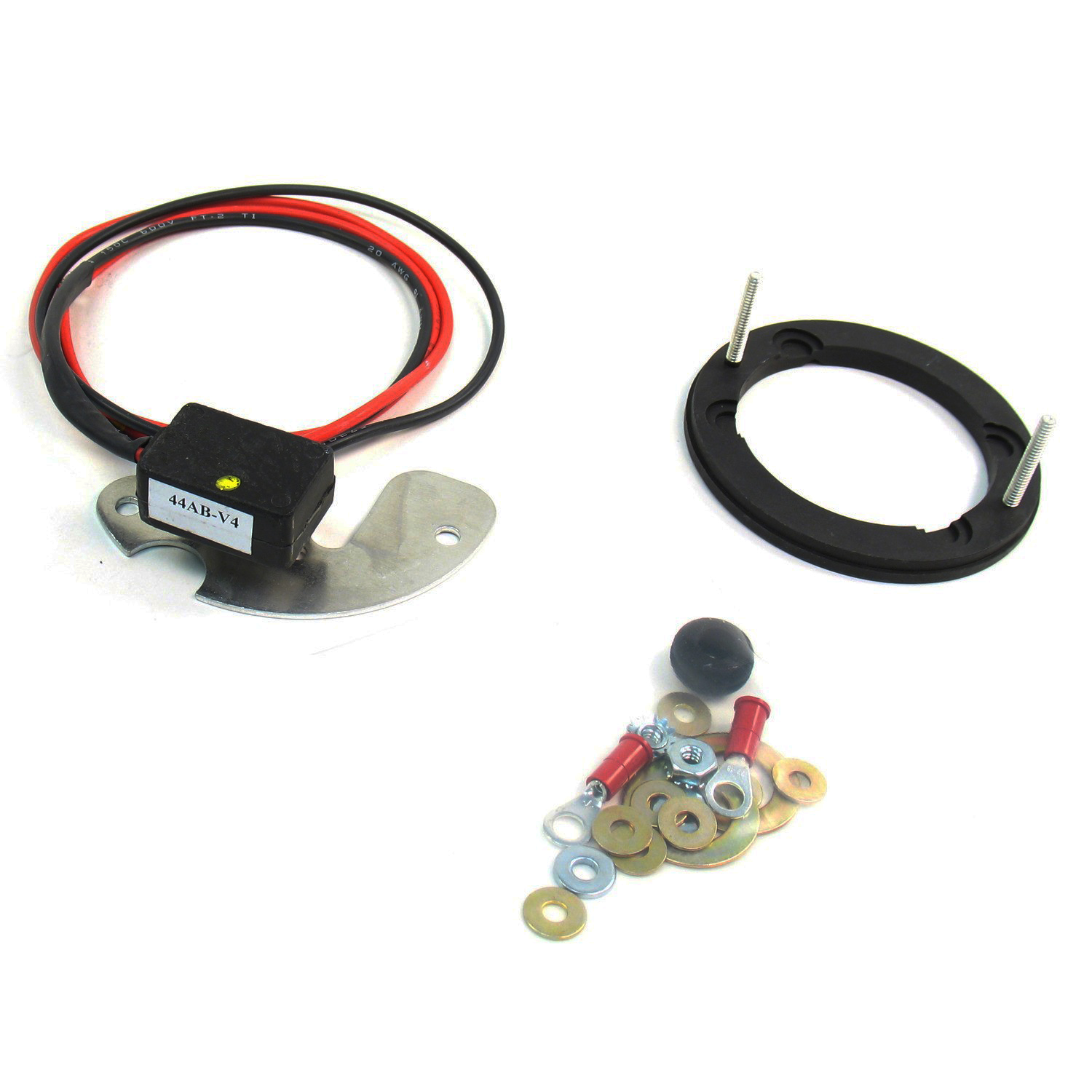

PerTronix Performance Products Ignitor Electronic Ignition Conversion
For over forty years, the Ignitor has proven itself in applications ranging from race cars to tractors. The Ignitor replaces breaker points and troublesome factory electronic ignitions with a dependable, self contained and maintenance free electronic ignition system. The Ignitor has been called the "stealth" ignition because of its quick installation and nearly undetectable presence under your distributor cap. There is no "black-box" to clutter the engine compartment. For optimal performance, use the Ignitor with Flame-Thrower 40,000 volt coils.
• Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and
spark plug life.
• 2:1 improvement over "points" in current fall time for increased coil output.
• Rotating cobalt magnets trigger a Hall Effect integrated circuit...no points to burn, ...no
moving parts to wear out.
• Epoxy molding makes our module impervious to dirt, oil, grease and moisture.
• Stable timing...no need for adjustment.
• Will trigger most CD ignitions.
• 12-volt negative ground system.
• Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-22).
• Guaranteed for 30 months
Note: Some kits feature lobe sensing technology which does not utilize rotating magnets.
Part Type: Electronic Ignition Conversion
Application: AMC/Jeep V8 most '58-'74 (notes 19, 72, 79), GM V8 most '57-'74 (notes 19, 72, 79), Checker Cab V8 '64-'74 (notes 19, 79), IHC '59-'64 (19, 72, 79), Studebaker most '60-'66 (notes 19, 57, 72, 79)
Conversion Kit Trigger Type: Hall Effect
Operating Voltage: 12-Volt Negative Ground
Rev Limiter: No
Integrated Multi-Spark Ignition: No
CD Ignition Compatible: Yes
Adaptive Dwell Control: No
High RPM Timing Correction: No
Engine Start-Up Energy Boost: No
Reverse Polarity and Over Current Protection: No
Thermal Clad Construction: No
Integrated Adjustable REV Limiter: No
Compatible with Most Point Type Coils: Yes
Compatible with Low Resistance Ignition Coils: No
Suggested Coils: 40001, 40011, & 40111
Legal in all 50 States: Yes, C.A.R.B. E.O. #D57-22
Manufacturer: PerTronix Performance Products
Manufacturer's Part Number: 1181
Weight: 0.30 lbs.
Warranty: PerTronix, Inc. warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period of 30 months from the day of purchase. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt. The manufacturer reserves the right to repair or replace the alleged defective part and return the part freight collect.
Quantity: Sold as Each
19: Mechanical advance at top of shaft
57: Ignitor version 12V positive ground, add P12 suffix
72: Fits both single point and dual point distributors
79: Not for use with solid core spark plug wires.
