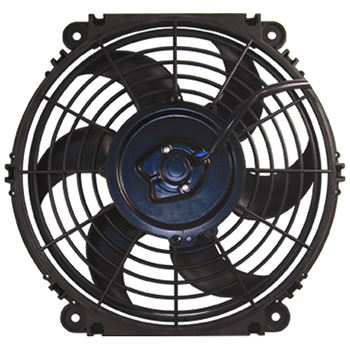

Maradyne High Performance Fans Pacesetter Series Electric Fan
These high performance fans are great for daily drivers and high performance applications. Quiet, reversable S-blade design-works as a puller or pusher fan (ships as puller). All glass-filled nylon construction. Non-vented heavy and medium duty motors. Includes (4) 90° mounting feet, mating pigtail connector and nylon pull through tie kit.
Part Type: Electric Fan
Application: Universal- High Performance or Daily Drivers
Maximum Fan CFM: 666
Fan Quantity: One
Blade Style: "S" Blade
Number of Blades: 6
Reversible: Yes (ships as puller)
Motor: Yes, 90 Watt
Amperage Draw: 4.5 Amps
Fan Diameter: 10"
Blade Material: Glass-Filled Nylon
Blade Color: Black
Shroud Material: Glass-Filled Nylon
Shroud Color: Black
Mounting Hardware Included: Yes, (4) 90° Mounting Feet and Rubber Spacers
Installation Hardware Included: Yes, Locking Mating Pigtail
Optional Mounting Brackets (Sold Separately): MFA104 (Metal Bracket Strips), MFA105 (Aluminum Brackets)
Optional Wiring Harness Included (Sold Separately): MFA100 (adjustable thermostat), MFA102 (185° temperature switch), MFA103 (195° temperature switch)
Manufacturer: Maradyne High Performance Fans
Manufacturer's Part Number: MP109K
Warranty: Maradyne High Performance Fans warrants to the Original Purchaser that the components of each fan package are free from defects in materials and workmanship for 12 months from the date of installation, or 18 months from the date of delivery and acceptance, whichever date first occurs. This warranty does not cover normal maintenance or adjustments, nor damage or malfunction caused by improper handling, maintenance, installation, abuse, accident, incorrect power source, negligence, carelessness of operation, or alteration or repair of the product in any manner outside the factory without the prior written consent Maradyne. customer further acknowledges and understands that this Agreement is based on performance derived from representative samples in a laboratory test environment. MARADYNE CANNOT AND DOES NOT WARRANT OR MAKE ANY REPRESENTATION OF FITNESS OR PERFORMANCE AS TO CUSTOMERS ACUTAL APPLICATION RESULTS; THIS WARRANTY IS LIMITED TO DEFECTS IN MATERIALS AND WORKMANSHIP ONLY.
Quantity: Sold as Each
