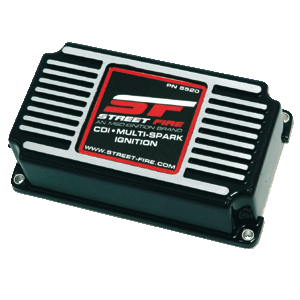

MSD Street Fire CDI Ignition
Perfect for budget minded enthusiasts. Offers capacitive discharge technology and will fire a series of multiple sparks that lasts for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm. This ensures combustion and produces great throttle response and smooth idle. Built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. There's even an adjustable rev limiter for overrev protection!
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes
Timing Retard: No
RPM Activated Switch: Yes
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 95 Millijoules
Voltage Primary Output (Into Coil): 435 Volts
Voltage Secondary Output (Coil Output): 43,000 Volts
Operating Voltage: 10-18 Volt Negative Ground
Operating Current Amp per RPM: .7 amp/1,000 RPM
RPM Range: 15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8201, MSD8251, MSD8261
Ignition Box Color: Black
Ignition Box Length: 6 in.
Ignition Box Width: 3.5 in.
Ignition Box Height: 1.75 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 5520
Weight: 1.5 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
