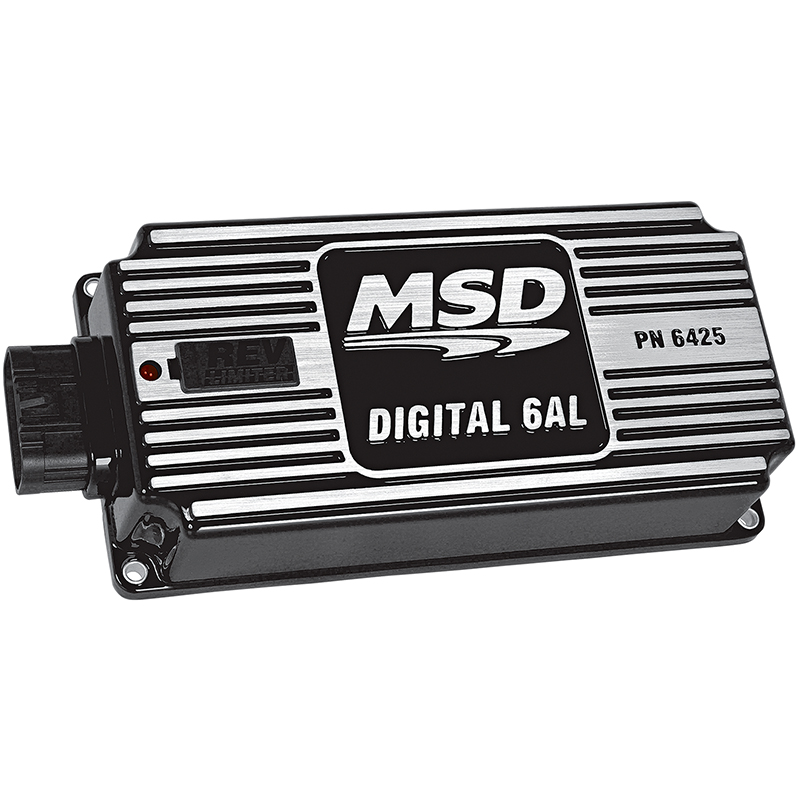

MSD Ignition Digital 6AL Ignition Control with Rev Limiter
Efficient components use less current to produce more power. The combination of powerful sparks with the safety of a Soft Touch Rev Control is what makes the 6AL the most popular ignition control in the world, The Soft Touch was developed to prevent oerrev damage failure. The RPM limit is adjustable in 100 RPM increments with 2 rotory switches. All wires exit the same side through a locked, sealed connector.
• Spark Energy: 135 mj
• Primary Output Voltage: 530
• Secondary Voltage Output: 45,000
• Current Draw Per 1,000 RPM: 7 Amps
• RPM Range: 15,000 RPM with 14.4 Volts
• Spark Duration: 20° Crankshaft Rotation
• Compatible for 4, 6, or 8 cylinder engines.
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 135-145 Millijoules
Voltage Primary Output (Into Coil): 520-540 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-15 Volts, 7 Volt Start
Operating Current Amp per RPM: .7 amp/1,000 RPM
RPM Range: 0-15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Black
Ignition Box Length: 8 in.
Ignition Box Width: 4 in.
Ignition Box Height: 1.825 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 64253
Weight: 1.7 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
