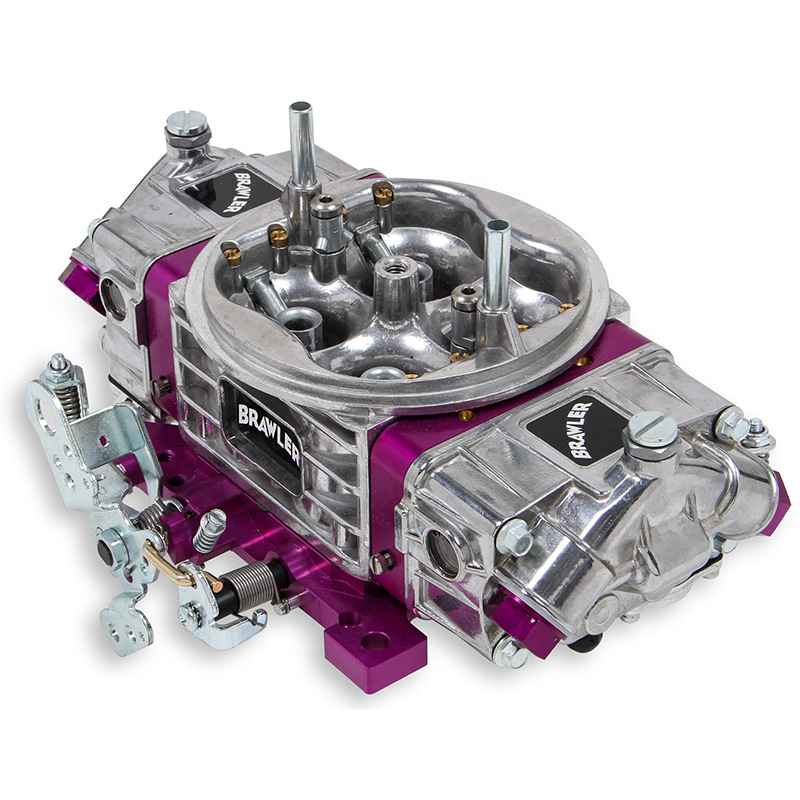

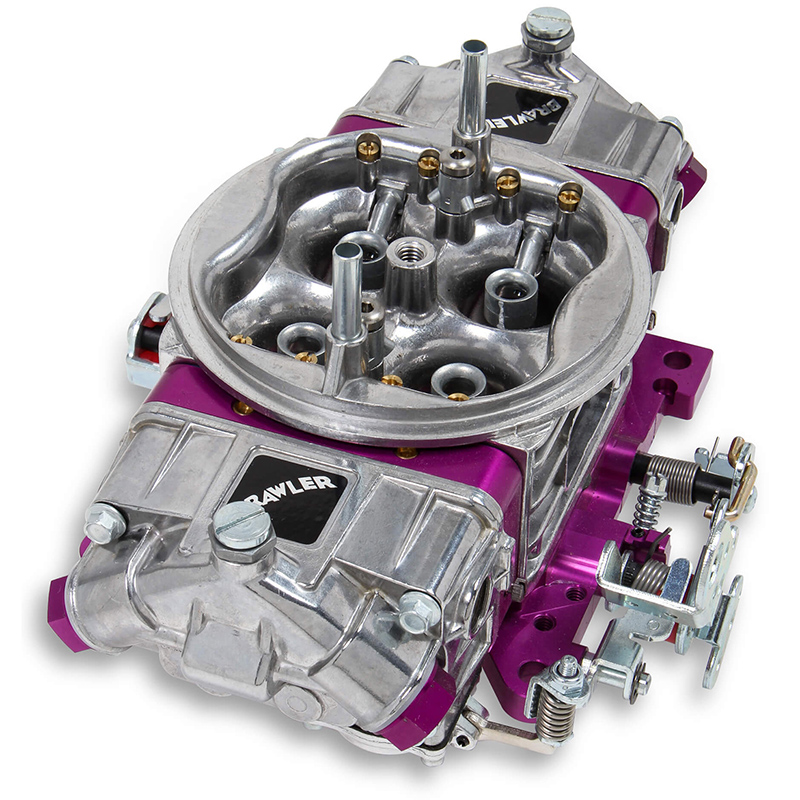

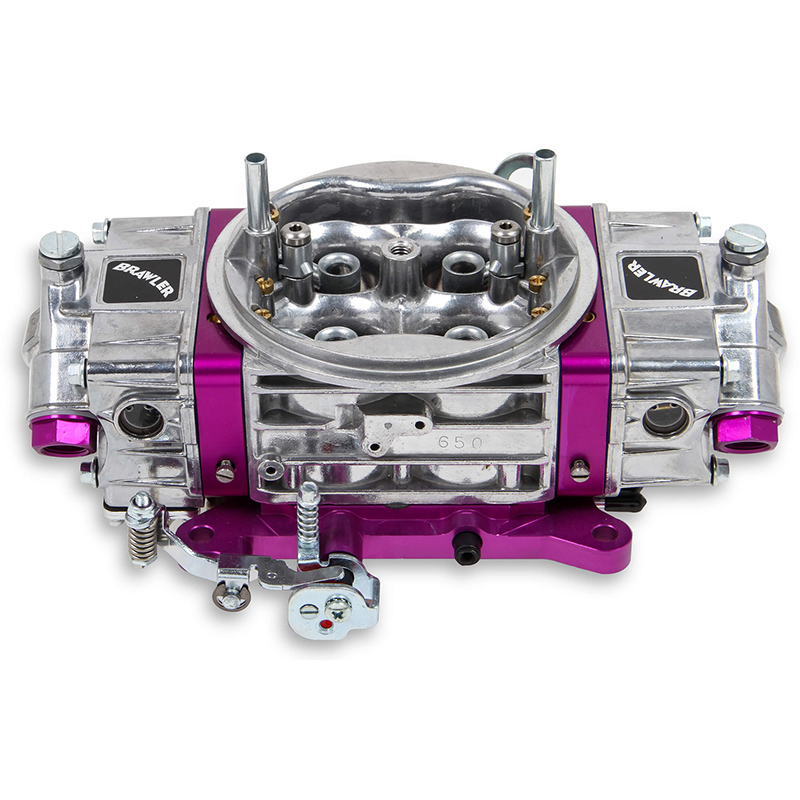

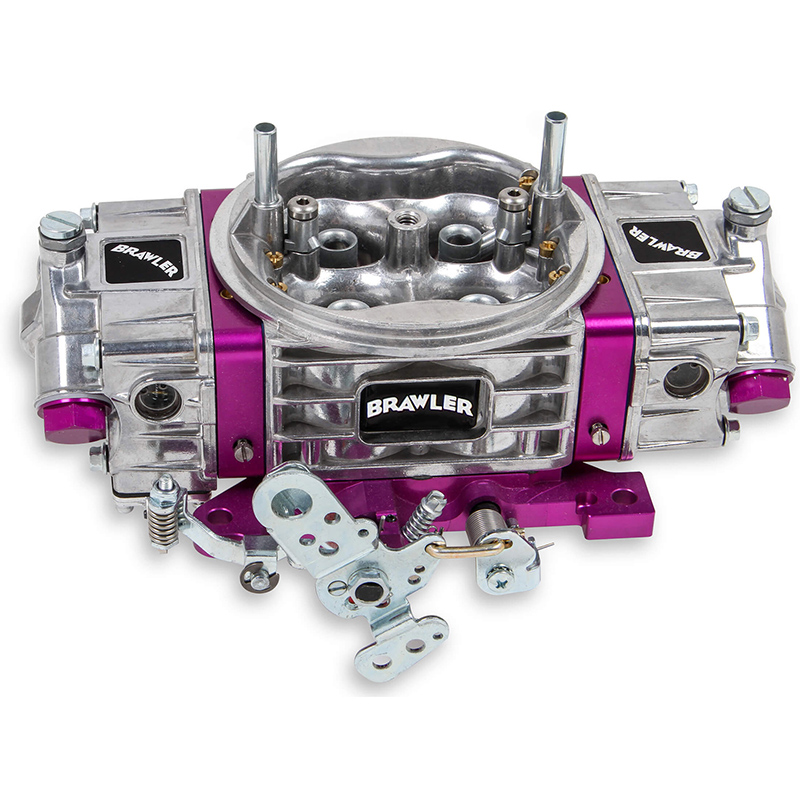

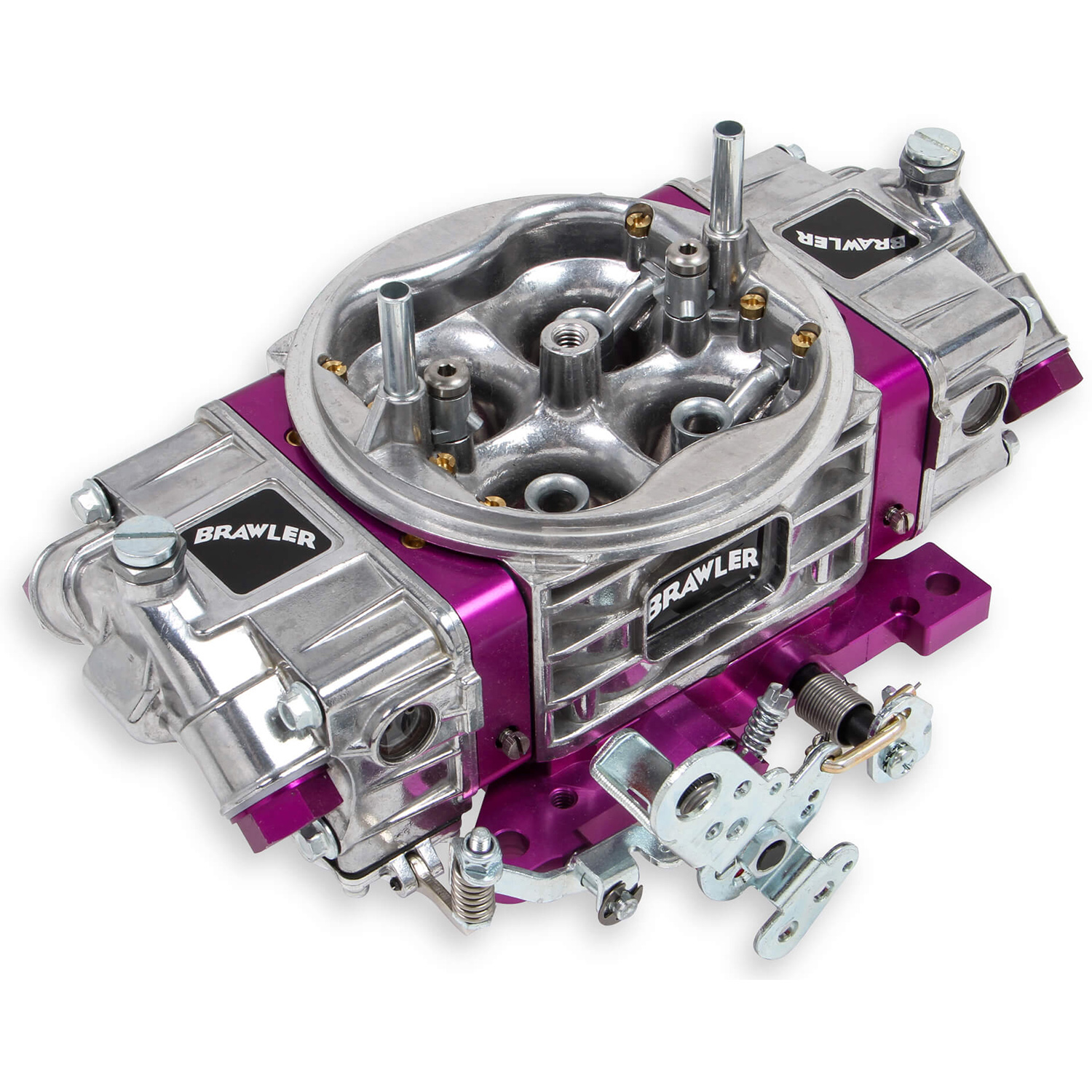

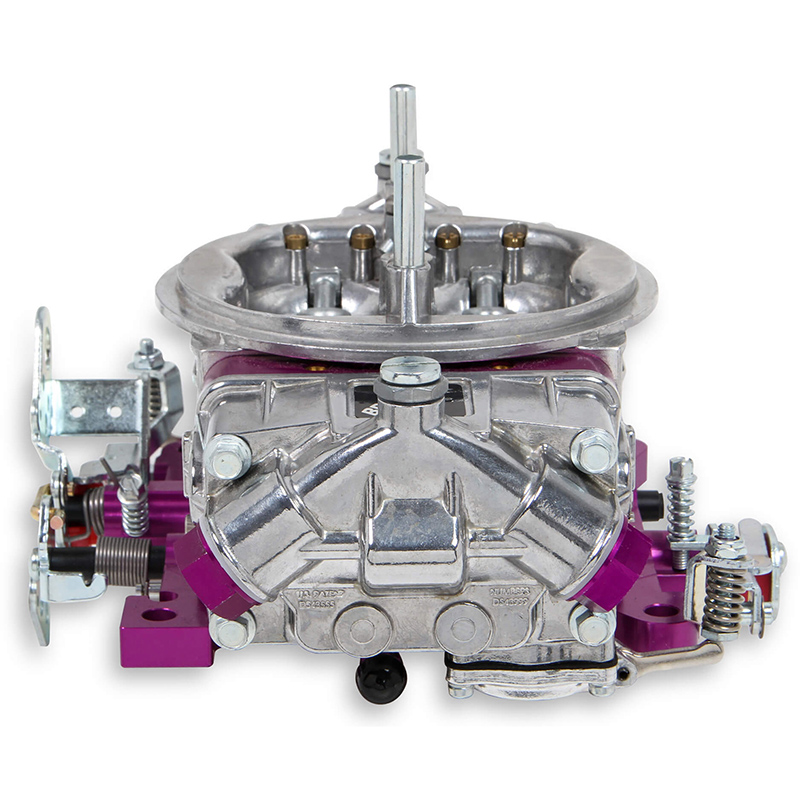

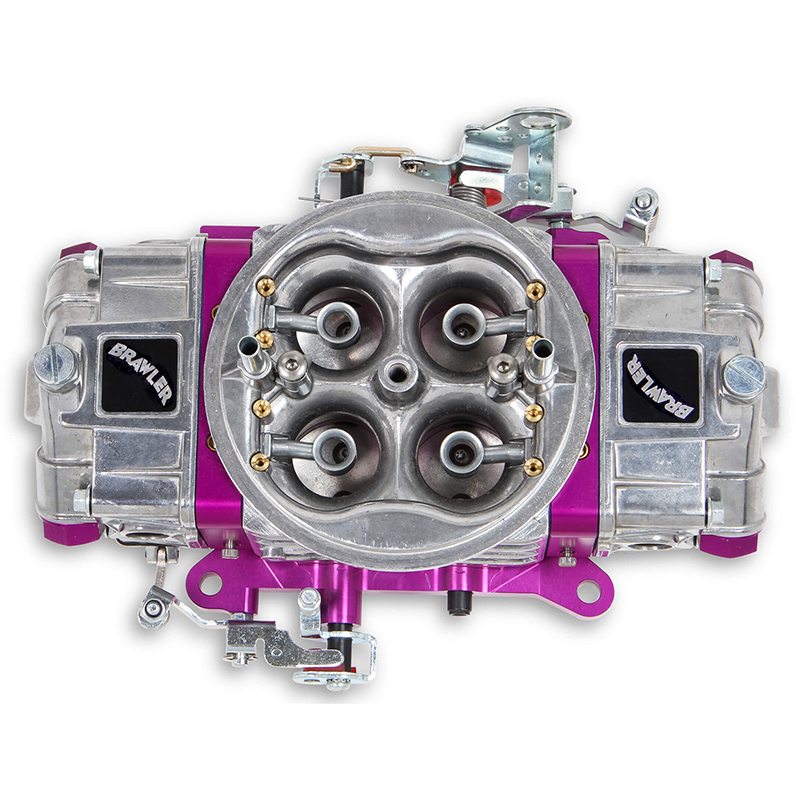

Brawler Race Carburetors
These double pump carburetors offer all of the options and tunability that you would find from more expensive carburetors. Development started with a high flowing diecast aluminum main body and added purple billet aluminum metering blocks with the latest technology in air/fuel calibrations for today's race engine demands. They also come with purple billet aluminum throttle bodies for superior durability and throttle shaft stability. Brawler Race models offer all of the options and tunability that you would find from more expensive carburetors in the market, including changeable idle and high speed air bleeds as well as four-corner idle adjustment on all mechanical secondary models.
Part Type: Carburetor
Fuel Type: Gasoline
Number of Barrels: 4
Choke Type: Electric
Fuel Inlet: Dual
Fuel Inlet Fitting Size: 7/8"-20
Secondary Type: Mechanical
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: Yes
Main Body: Aluminum
Booster Type: Down Leg
Screw-In Air Bleeds: Yes
Primary Venturi Diameter: 1.570"
Base Plate: Purple Billet Aluminum
Base Plate Pattern: 5.16" x 5.62"
Primary Throttle Bore Diameter: 1-3/4"
Secondary Throttle Bore Diameter: 1-3/4"
Primary Metering Block: Purple Billet Aluminum
Secondary Metering Block: Purple Billet Aluminum
Primary Fuel Bowl: Center Hung Float, Aluminum
Secondary Fuel Bowl: Center Hung Float, Aluminum
Externally Adjustable Floats:
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 30cc
Secondary Accelerator Pump: 30cc
Primary Main Jets: 76
Secondary Main Jets: 84
Jet Extensions: No
Quick Change Jet Ports: No
Needle & Seat:
Idle Bleed: .073"/.073"
Intermediate Bleed: NA
Hi-Speed Bleed: .033"
Primary Power Valve: 4.5" Hg
Secondary Power Valve: NA
Primary Pump Nozzle Size: .033"
Secondary Pump Nozzle Size: .033"
Secondary Spring Color: NA
PCV Port: Yes
Vacuum Port - Timed (Spark): One
Vacuum Port - Full Vacuum: Two
Manufacturer's Part Number: BR-67201
Warranty: Quick Fuel Technology warrants to the original purchaser only that its new and remanufactured products shall be free from defects in material and workmanship for a period of 90 days from date of purchase. In the event of a defect in material or workmanship, QFT will, at its option, repair or replace the product, or any defective part or parts thereof, without charge to the original purchaser. This warranty does not apply to products that have been modified or altered, subjected to misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, faulty repair or used in other than those applications recommended by QFT.
Quantity: Sold as Each
